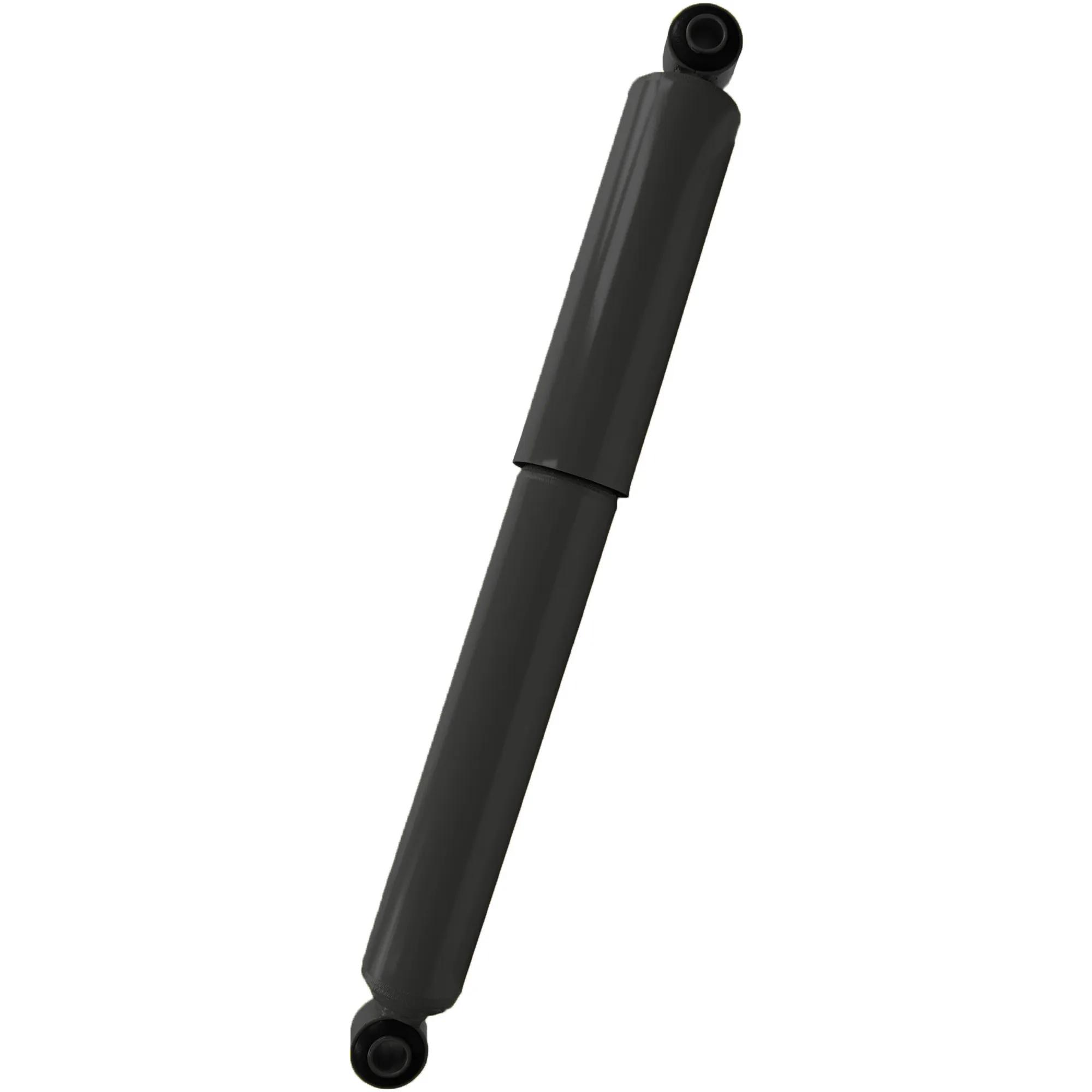

Monroe Magnum Heavy Duty Shock Absorber, Nitrogen Gas Charged, Comp: 14-7/8 in, Ext: 24-1/4 in, Stroke: 9-3/8 in, 2-3/8 in Body
#MON65123
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- 2-3/8 in (60.3 mm) Reserve Tube.
- Large 1-3/4 in (44.5 mm) Piston Bore.
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Single-Lip, Low-Friction Oil Seal.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
Specifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 14-7/8 in |
| Extended Length | 24-1/4 in |
| Lower Mount | LS54 |
| Parts Pack | MONP00119 |
| Stroke Inch | 9-3/8 in |
| Type | Shock Absorber |
| Upper Mount | LS54 |
| Finish | Painted |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 9.375 in |
| Manufacturer Part Number | 65123 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65123 |
| M65123 |
| 1615219000 |
| 650426MT |
| 65426 |
| AMS650426 |
| F6HT18045AA |
| F6HT18045AB |
| F6HT18045AC |
| F6HT18045HB |
| F6HT18045HC |
| F6HZ18124A |
| F6HZ18124H |
