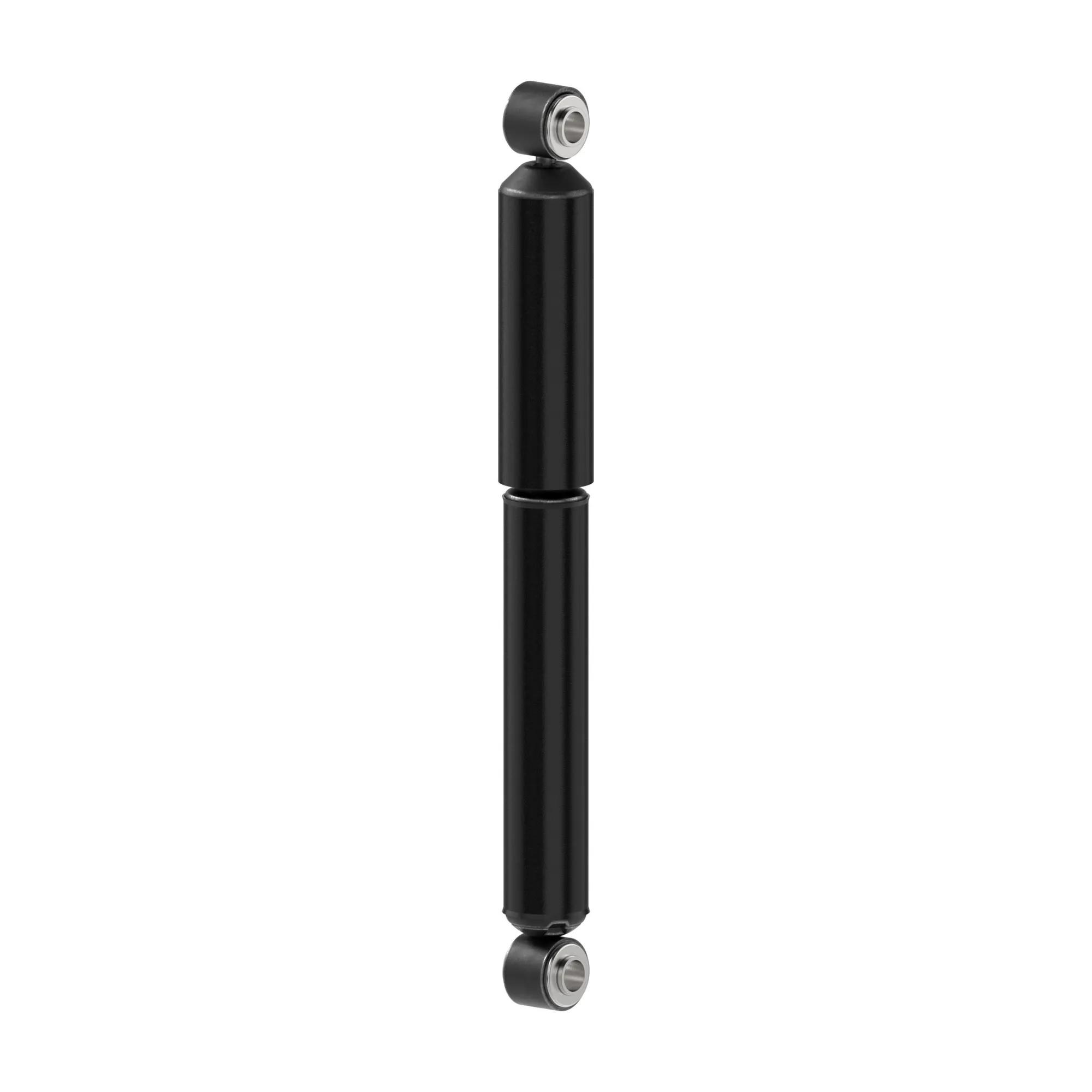

Monroe Magnum Gas Charged Shock Absorber, 13-7/16 in Comp, 20-7/32 in Ext, LS54 Mounts, 1-3/8 in Bore, for Class 3-6 Trucks & Buses
#MON66636
Product Overview
The Monroe Magnum shock absorber is designed for hard-working Class 3 to 6 trucks and buses. Gas Charged for quicker response and a stable, more comfortable ride, it handles the demands of high mileage and severe use vehicles. Replacing worn-out units with Magnum shocks helps reduce excessive vibration and improves overall ride quality.Shock Absorber, Painted, Metal, 13.4375 in Compressed Length, 20.4531 in Extended Length, LS54 Lower Mount, 7.015 in Travel Length, LS54 Upper Mount
Features & Benefits
- Nitrogen gas charged for improved ride and handling, helps maintain tire-to-road contact by reducing aeration on most applications.
- Designed for hardworking commercial vehicles - handles the demands of high mileage and severe use Class 3-6 trucks and buses.
- Built to last - robust hydraulic lock-out prevents over-extension of air bags, top-out of the piston, and damage to seal assembly on most applications.
- Multi-Lip fluid seal designed for smooth performance, long life, and reduced friction.
- The Gas-Series 60 Shock Absorber is Gas Charged for quicker response and a stable, more comfortable ride. Replacing worn-out units with hard-working Gas-Series 60 shocks can help reduce excessive vibration.
- Exceptional handling - 10-stage valving tuned specifically to each vehicle adjusts to road extremes; larger 1-3/8 in bore provides efficient damping control for a smooth ride on most applications.
- Strong and durable - shouldered and bonded bushings with sleeves protect from bushing walkout; arc welds up to 360 degrees for durability.
- Longer service life - bearing with PTFE coating reduces friction between rod and rod guide; nitrocarburized piston rod provides durability and longer service life on most applications.
- Buy with confidence - comes with Monroe’s 90-day risk-free ride offer and limited commercial warranty.
Specifications
| Body Diameter | 1-3/8 in |
| Compressed Length | 13-7/16 in |
| Dust Shield | Yes |
| Extended Length | 20-7/32 in |
| Lower Mount | LS54 |
| Stroke Inch | 7.015 in |
| Upper Mount | LS54 |
| Finish | Painted |
| Material | Metal |
| Shock Type | Gas Charged |
| Travel Length | 7.015 in |
| Manufacturer Part Number | 66636 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 660130 |
| 66636 |
| 90044642 |
| 90044689 |
| CHA665174 |
| E-83204 |
| E-85008 |
| E-85029 |
| M66636 |
| S2212 |
| 1013760000 |
| 1083204 |
| 3166287 |
| 3171459 |
| 3178165 |
| 3197642 |
| 3919915 |
| 4940610 |
| 50827 |
| 5521698 |
| 5521699 |
| E85060 |
| P150111 |
| PB150111 |
| 10148 |
| 1083206 |
| 1091349 |
| 1398980 |
| 16335 |
| 2096001 |
| 3043 |
| 317964 |
| 345608 |
| 3516764C1 |
| 359014403 |
| 434236 |
| 434279 |
| 438031 |
| 44183127 |
| 537524C91 |
| 543566636 |
| 57306895 |
| 57365433 |
| 57366636 |
| 59024 |
| 600130MT |
| 601130 |
| 6026 |
| 61300114 |
| 650433MT |
| 660130MT |
| 661130 |
| 665109 |
| 665174 |
| 665265 |
| 665267 |
| 665495 |
| 680570 |
| 6877 |
| 727604 |
| 728620 |
| 728631 |
| 78530771 |
| 8150371 |
| 83113 |
| 83127 |
| 83204 |
| 85326 |
| 85910 |
| 89437 |
| 90044017 |
| 90044083 |
| 90044681 |
| 90044915 |
| 90044983 |
| 90045083 |
| ABPN32G900083 |
| ABPN32O900083 |
| AMS600130 |
| AMS650433 |
| AMS660130 |
| AR1141 |
| AR1141C |
| B23316 |
| CT00001760 |
| E83204 |
| E85008 |
| E85029 |
| F347203 |
| F347328 |
| HD E144 |
| L57649 |
| L57661 |
| L59030 |
| M83127 |
| NW90044979 |
| RCSA3127 |
| S23316 |
| SA3127 |
| ZF 471700015341 |
