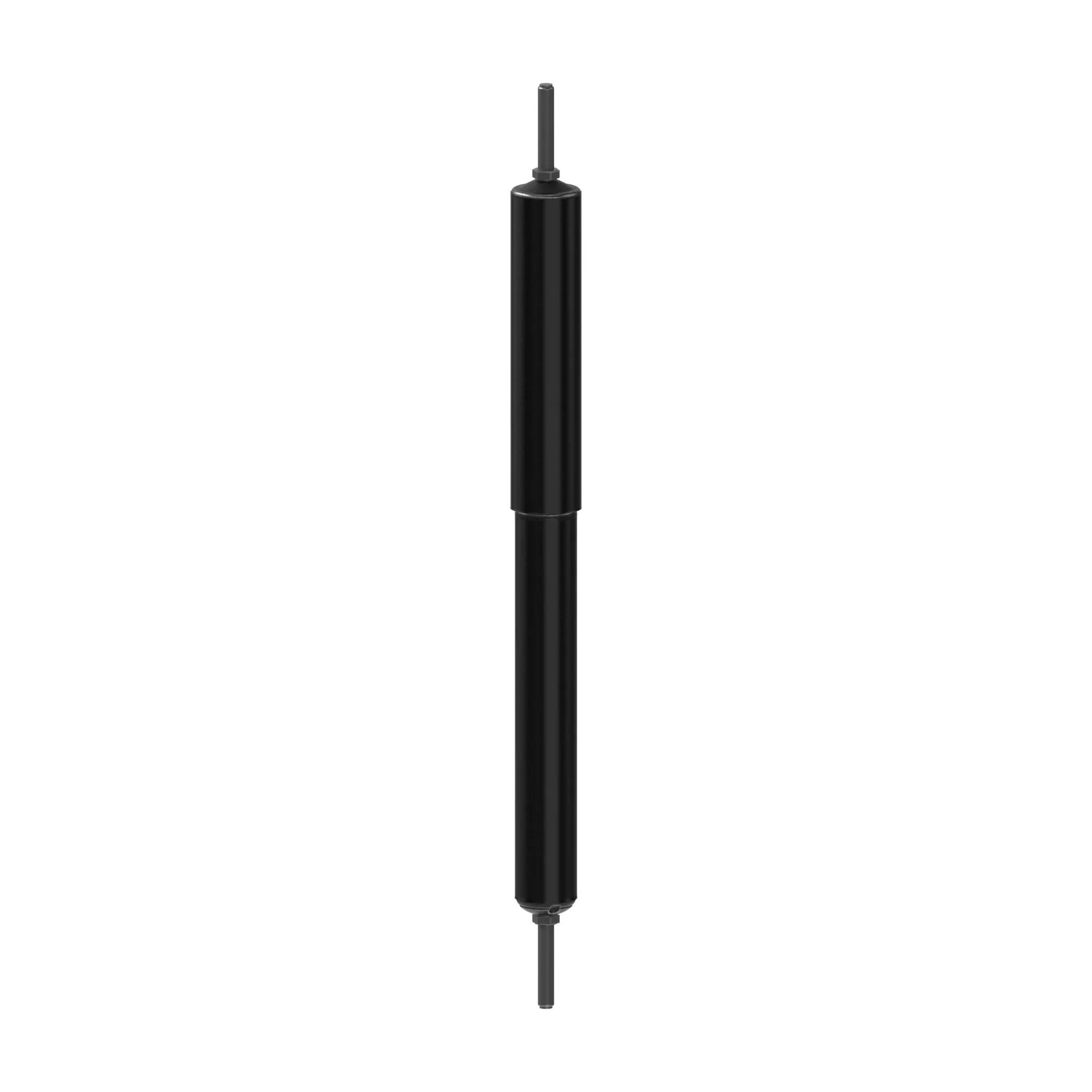

Monroe Shock Absorber, Nitrogen Gas Charged, Comp: 16-15/16 in, Ext: 29-9/32 in, Stroke: 12-11/32 in, 1-3/4 in Piston Bore, S6 Mounts, Dust Shield
#MON65161
Product Overview
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 2-3/8 in (60.3 mm) Reserve Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Compressed Length | 16-15/16 in |
| Dust Shield | Yes |
| Extended Length | 29-9/32 in |
| Lower Mount | S6 |
| Parts Pack | MONP01482 |
| Stroke Inch | 12-11/32 in |
| Upper Mount | S6 |
| Finish | Painted |
| Shock Mounting | Arc-Welded Mounts |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 12.312 in |
| Manufacturer Part Number | 65161 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 65161 |
| M65161 |
| 15123676 |
| 15887728 |
| 508-86 |
| 508-90 |
| 88982682 |
| MON65161 |
| 15174298 |
| 15192385 |
| 15192843 |
| H88982682 |
