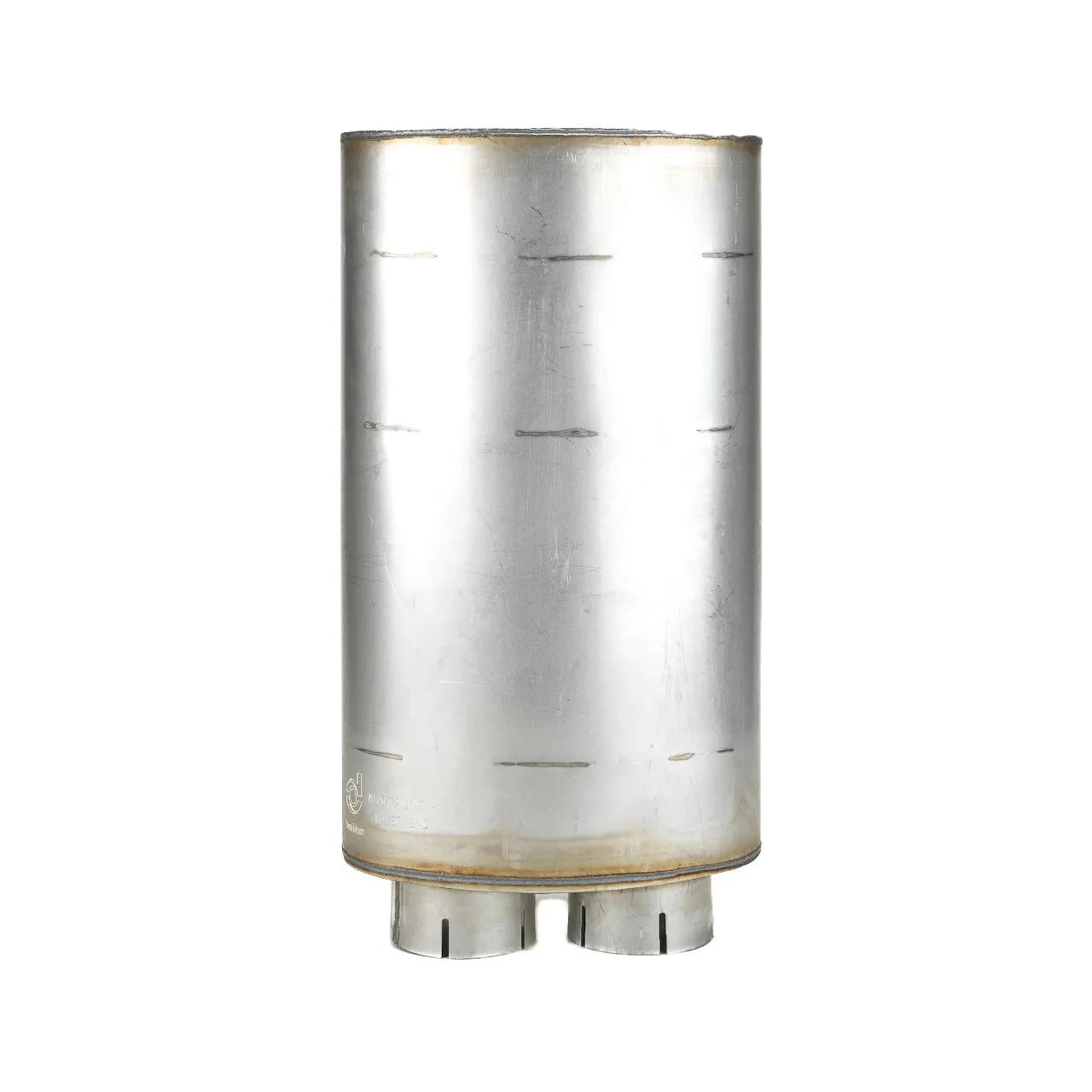

Muffler, OD: 10 in, Le: 25 in
#DONM120176
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Plage basse d'atténuation | 15 dBA |
| Gamme haute d'atténuation | 20 dBA |
| Gamme haute de contre-pression (métrique) | 76 mm HG |
| Gamme haute de contre-pression | 2,99 po HG |
| Plage basse de contre-pression | 0,98 po HG |
| Contre-pression milieu de gamme | 2,01 po HG |
| Contre-pression basse gamme (métrique) | 25 mm HG |
| Contre-pression milieu de gamme (métrique) | 51 mm HG |
| Diamètre du corps | 10 po (25,4 cm) |
| Diamètre maximal du corps | 15 po (38,1 cm) |
| Longueur du corps | 25-63/64 po (66 cm) |
| Couleur | Aluminisé |
| Height | 10 po (25,4 cm) |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 5 in (12.7 cm) |
| Inlet Quantity | 1 |
| Inlet Type | Connexion de tuyau |
| Length | 25 po (63,5 cm) |
| Material | Acier |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 5 po (12,7 cm) |
| Outlet Quantity | 1 |
| Outlet Type | Connexion de tuyau |
| Overall Length | 29-3/8 po (74,62 cm) |
| Rated Flow High Range | 2044,72 pi³/min (57,9 m³/min) |
| Rated Flow Low Range | 1179,51 pi³/min (33,4 m³/min) |
| Rated Flow Mid Range | 2044.72 cfm (57.9 m³/min)[delete] |
| Reversible | Non |
| Shape | Ovale |
| Length Range | 25 à 26 po |
| Style | Style 5 |
| Width | 15 po (3,81 cm) |
Interchanges & Equivalent parts:
| M120176 |
| 88500428 |
| 86121M |
| 1909427 |
| 3643 |
| 3643Q |
| 76034168 |
| 547379C1 |
| 549479C1 |
| 5606629 |
| 9575M120176 |
| DNM120176 |
| 38903111110 |
| 7642000056 |
| 764200056 |
| 80015984 |
| DCM120176 |
| 115841 |
| P3141445 |
| 50187850019 |
| 810341 |
| 49032190 |
| DN M120176 |
| 050187850019 |
| 15019056 |
| 190-9427 |
| 2191-M120176 |
| 3590838 |
| 00810341 |
| DN M120176 |
| FG 86121M |
| DONM120176 |
| NFM86121M |
| W22381 |
| 22381 |
