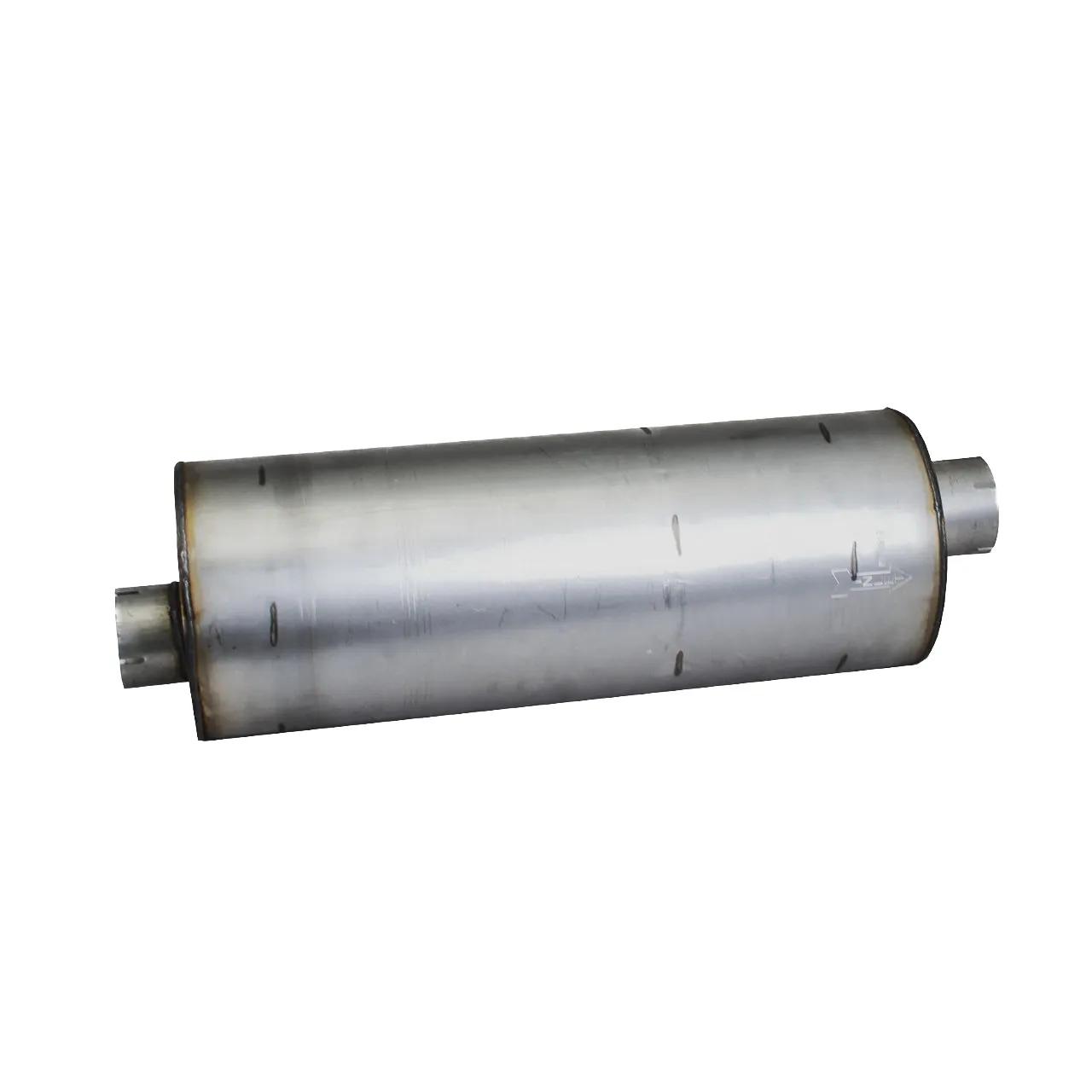

Muffler, OD: 11 in, Le: 30 in
#DONM110012
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 15 dBA |
| Attenuation High Range | 20 dBA |
| Back Pressure High Range | 2.99 in HG |
| Back Pressure Low Range | 0.98 in HG |
| Contre-pression milieu de gamme | 2.01 in HG |
| Couleur | Aluminized |
| Diamètre | 11-1/16 in (28.11 cm) |
| Plage de diamètre | 4 to 5 in |
| Hauteur | 11 in (27.94 cm) |
| Position de l'horloge d'entrée | 6:00 |
| Diamètre d'entrée | 4 in (10.16 cm) |
| Quantité d'entrée | 1 |
| Type d'entrée | Pipe Connection |
| Longueur | 30 in (76.2 cm) |
| Matériel | Steel |
| Position de l'horloge de sortie | 12:00 |
| Nombre de sorties | 1 |
| Type de sortie | Pipe Connection |
| Gamme haute de débit nominal | 1731 cfm (49,02 m³/min) |
| Plage basse de débit nominal | 1000 cfm (28,3 m³/min) |
| Milieu de gamme de débit nominal | 1413 cfm (40,02 m³/min) |
| Réversible | No |
| Forme | Round |
| Plage de longueur | 11 to 12 in |
| Style | Style 2 |
| Width | 11 in (2.79 cm) |
Interchanges & Equivalent parts:
| M110012 |
| 3711 |
| 86500M |
| 86541M |
| 86650M |
| 86653M |
| M24411 |
| 1901150 |
| 3700 |
| MFM110012 |
| 9575M110012 |
| 9575MFM110012P |
| E2HZ5225AFB |
| E2HZ5230Z |
| DNM110012 |
| 31230 |
| DCM110012 |
| 727321001 |
| ZF895 |
| 102732 |
| D132045 |
| 22789 |
| 11-0005 |
| 12322859 |
| 2191-M110012 |
| 31230HDM |
| DONM110012 |
| M2-4411 |
| W22888 |
| DN M110012 |
| DN M110012 |
| 22888 |
