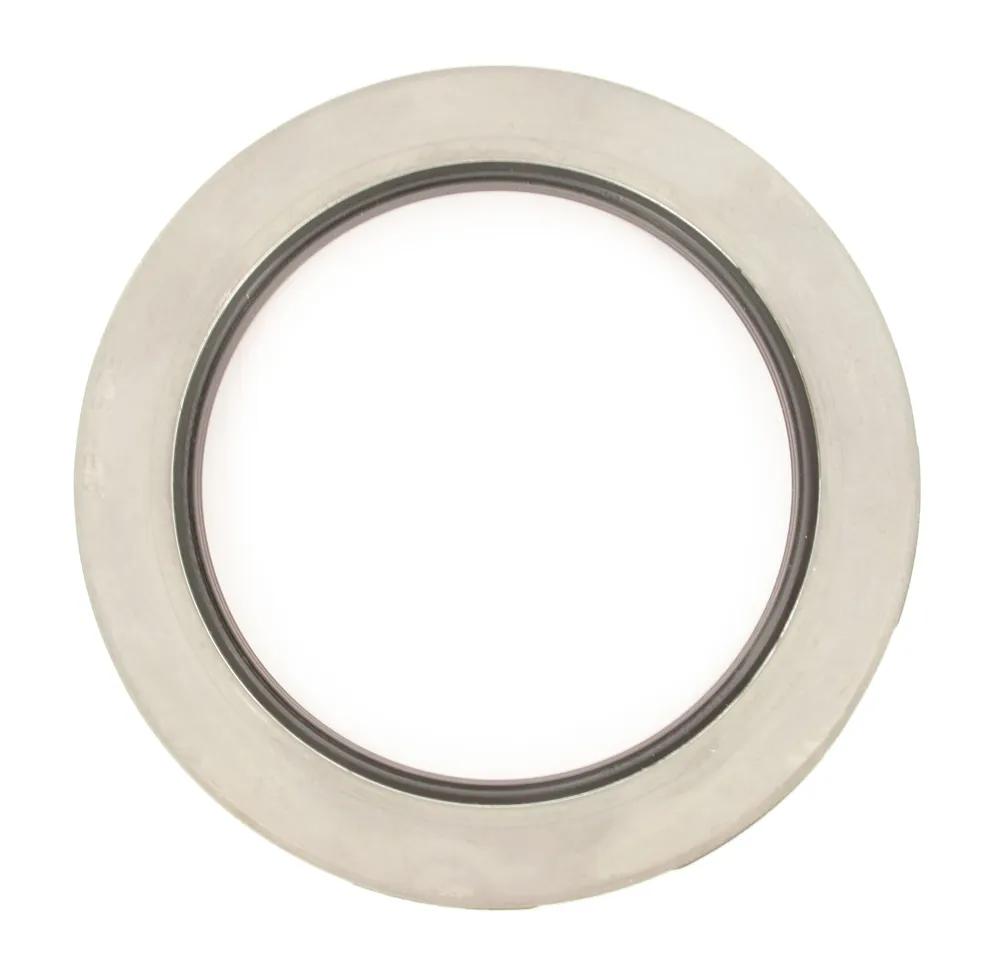

Oil Bath Wheel Hub Seals - Front-Steer Axle - H/D Truck PlusXL Scotseal (CR)
#SKF39426
Sommaire du produit
The ScotSeal PlusXL is a Rubber Unitized, One Piece Design.
Caractéristiques et avantages
Caractéristiques et avantages
SKF39426 - Documents de caractéristiques - A
SKF39426 - Documents de caractéristiques - B
SKF39426 - Documents de caractéristiques - C
SKF39426 - Documents de caractéristiques - D
SKF39426 - Documents de caractéristiques - E
SKF39426 - Documents de caractéristiques - F
SKF39426 - Documents de caractéristiques - G
- The ScotSeal Plus XL Consists of Four Sealing Lips: A Spring Loaded Primary Sealing Lip With Patented Waveseal Design That is Factory Pre-Lubed,
- a Radial and Axial Dirt Lip , Plus an Outer Bumper Lip That Acts as a Priliminary Dirt Excluder.
- ScotSeal PlusXL Requires No Special Installation Tools and Maintains a Rubber to Metal Contact Between the Seal O.D. and the Hub Bore Surface,
- as Well as a Rubber to Metal Contact Between the Packing I.D. and Spindle or Axle.
- The New High Temperature, Synthetic Lubricant Freindly Material of the ScotSeal PlusXL, Hydrogenated Nitrile Butadiene Rubber (HNBR), is an Excellent Choice for Frequent Braking Applications.
- HNBR Elastomeric Material Provides Heat Resistance up to 300 Degrees Farenheit and Broad Compatibility With Today's Synthetic Lubrication Fluids.
- The Unsurpassed Exclusion Properties Allow the ScotSeal PlusXL to Perform in Very Harsh Conditions.
- Worn Hubs and Spindles Are Not a Problem for the ScotSeal PlusXL.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Spécifications
| Contents | (1) Oil Bath Seal |
| Inside Diameter | 3-15/16 in (10.01 cm) |
| Seal I.D. | 3 to 3.99 in |
| Seal O.D. | 5 to 5.99 in |
| Series | Scotseal Plus |
| Type | Wheel Seal (PlusXL) |
| VMRS Code | 18001004 |
| Wall Thickness | 19/32 in (1.5 cm) |
Interchanges et pièces équivalentes:
| 370009A |
| 370023A |
| 3080870 |
| 3096168 |
| 145839426 |
| 3909057 |
| 39426 |
| 394261 |
| 39426CHR |
| CR39426 |
| 965839426 |
| CHR39426 |
| N39426 |
| XCR39426 |
| V1593459 |
| ZAR39426 |
| HS39426 |
| 1620244 |
| 1593459 |
| 380009A |
| 39424 |
