Oil & Grease Seal Speedi Sleeves - Metric & Inch - Std Speedi-Sleeve Kits
#SKF99360
Product Overview

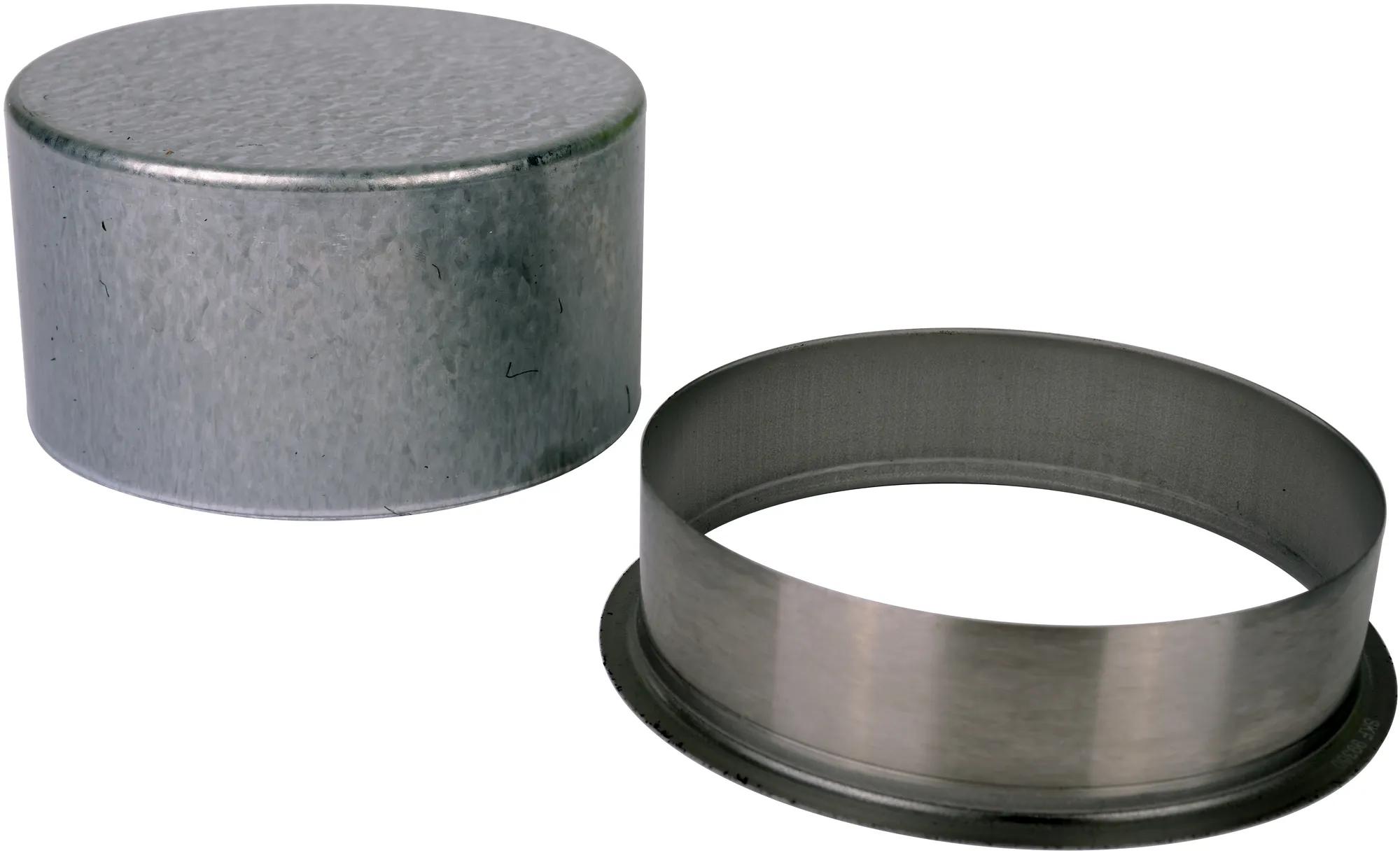

Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Features & Benefits
Features & Benefits
SKF99360 - Features Documents - A
SKF99360 - Features Documents - B
SKF99360 - Features Documents - C
SKF99360 - Features Documents - D
SKF99360 - Features Documents - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Fits Shaft Diameter | 3.618 in. To 3.624 in. / 91.89 mm To 92.05 mm |
| Flange Diameter | 4-1/32 in (10.24 cm) |
| Thickness | 13/16 in (2.06 cm) |
Interchanges & Equivalent parts:
| 5P6188 |
| 145899360 |
| CR99360 |
| 965899360 |
| CHR99360 |
| 99360 |
| 99360RS |
| N99360 |
| NN99360 |
| ZAR99360 |
| 4133565100 |
| 27SR3565 |
