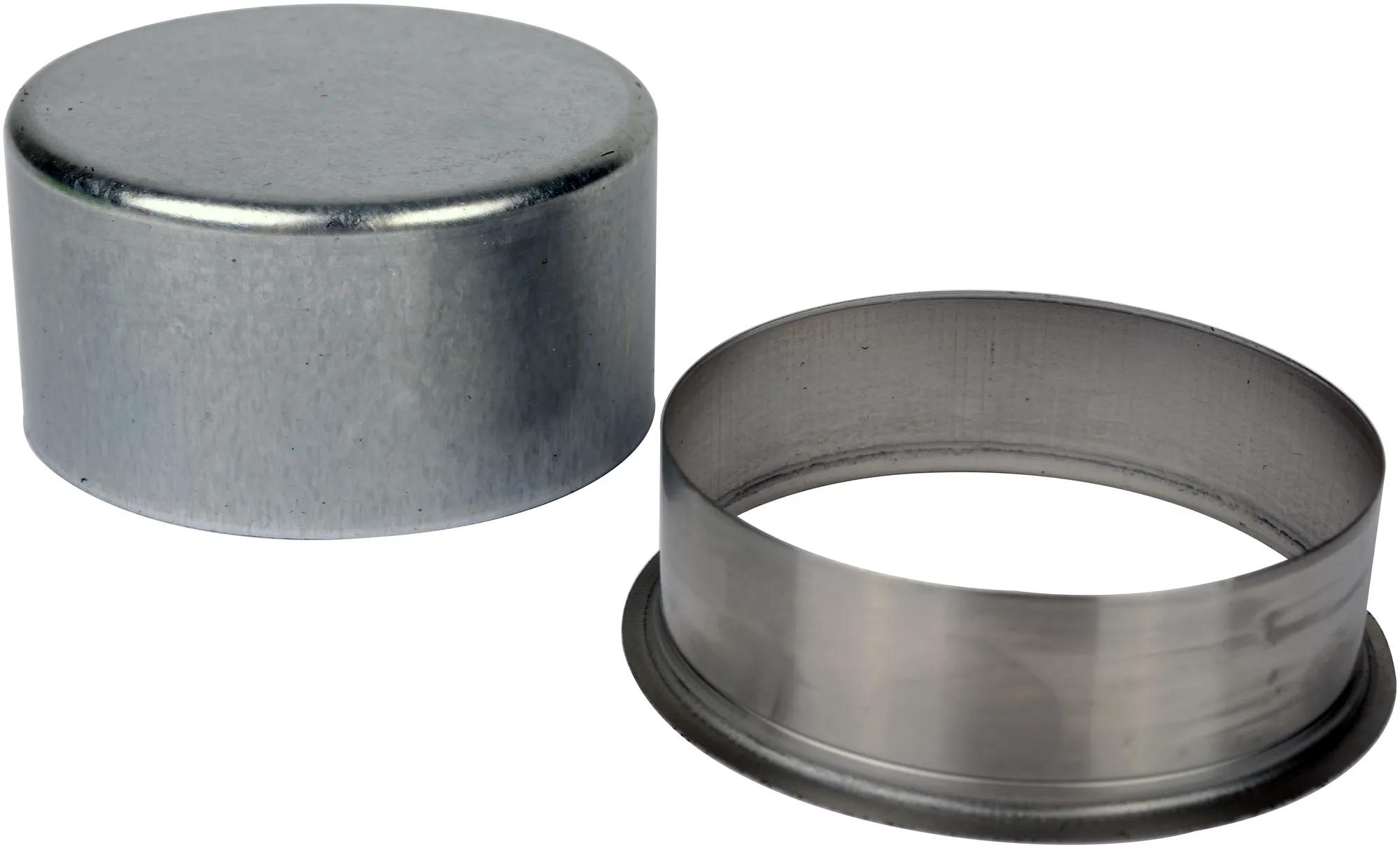

Oil & Grease Seal Speedi Sleeves - Metric & Inch - Std Speedi-Sleeve Kits
#SKF99435
Sommaire du produit
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Caractéristiques et avantages
Caractéristiques et avantages
SKF99435 - Documents de caractéristiques - A
SKF99435 - Documents de caractéristiques - B
SKF99435 - Documents de caractéristiques - C
SKF99435 - Documents de caractéristiques - D
SKF99435 - Documents de caractéristiques - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Spécifications
| Compatible avec le diamètre de l'arbre | 4.327 in. To 4.335 in. / 109.91 mm To 110.11 mm |
| Diamètre de bride | 4-59/64 in (12.5 cm) |
| Épaisseur | 33/64 in (1.32 cm) |
Interchanges et pièces équivalentes:
| 145899435 |
| CR99435 |
| 965899435 |
| CHR99435 |
| 99435 |
| 994351 |
| 99435CHR |
| 99435RS |
| N99435 |
| NN99435 |
| ZAR99435 |
| 4133577100 |
| 27SR3577 |
| KWK99435 |
