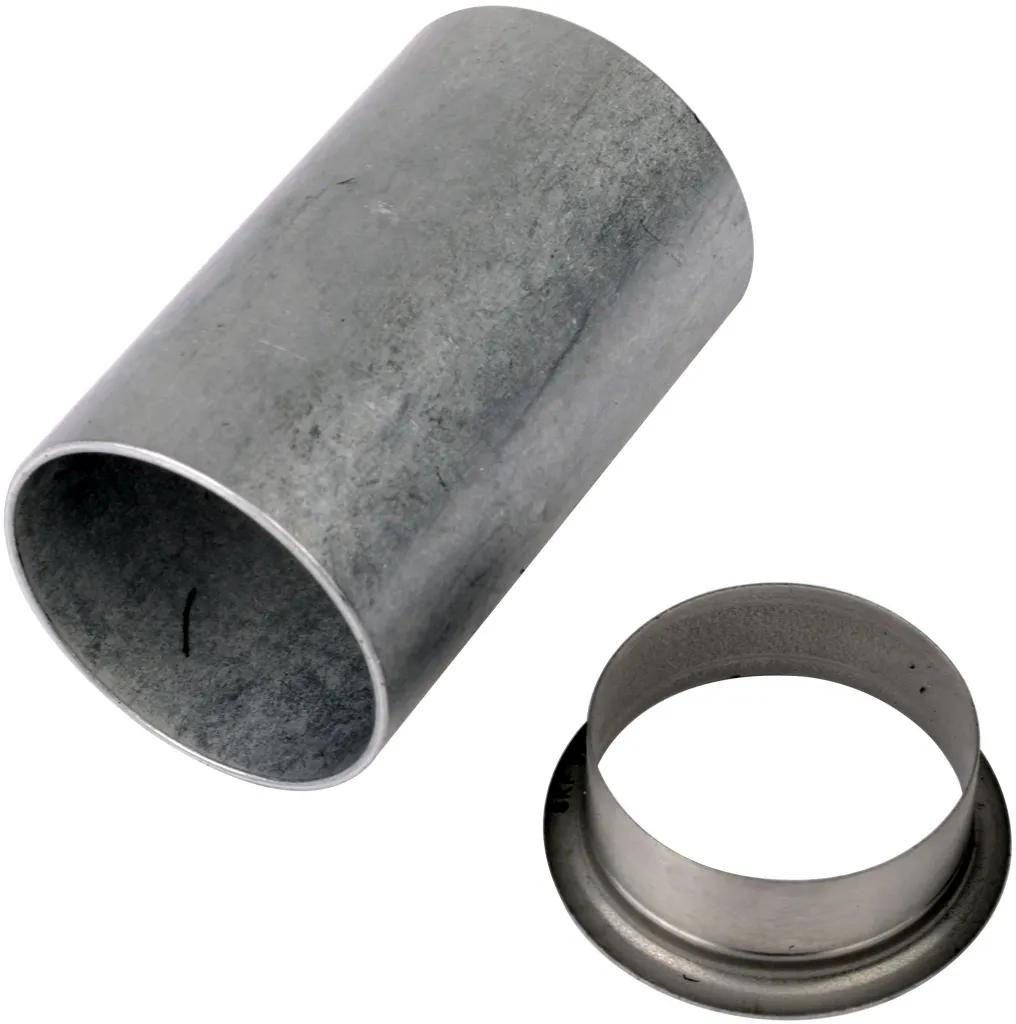

Pinion Speedi-Sleeve - Rear Axle
#SKF99106
Product Overview
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Features & Benefits
Features & Benefits
SKF99106 - Features Documents - A
SKF99106 - Features Documents - B
SKF99106 - Features Documents - C
SKF99106 - Features Documents - D
SKF99106 - Features Documents - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Fits Shaft Diameter | 1.060 in. To 1.064 in. / 26.92 mm To 27.02 mm |
| Flange Diameter | 1-5/16 in (3.33 cm) |
| Thickness | 5/16 in (0.79 cm) |
| VMRS Code | 15008001 |
Interchanges & Equivalent parts:
| 5P6162 |
| 145899106 |
| CR99106 |
| 965899106 |
| 99106 |
| 991061 |
| 99106CHR |
| 99106RS |
| CHR99106 |
| N99106 |
| NN99106 |
| ZAR99106 |
| 12328928 |
| KWK99106 |
| 4133460100 |
| 27SR3460 |
