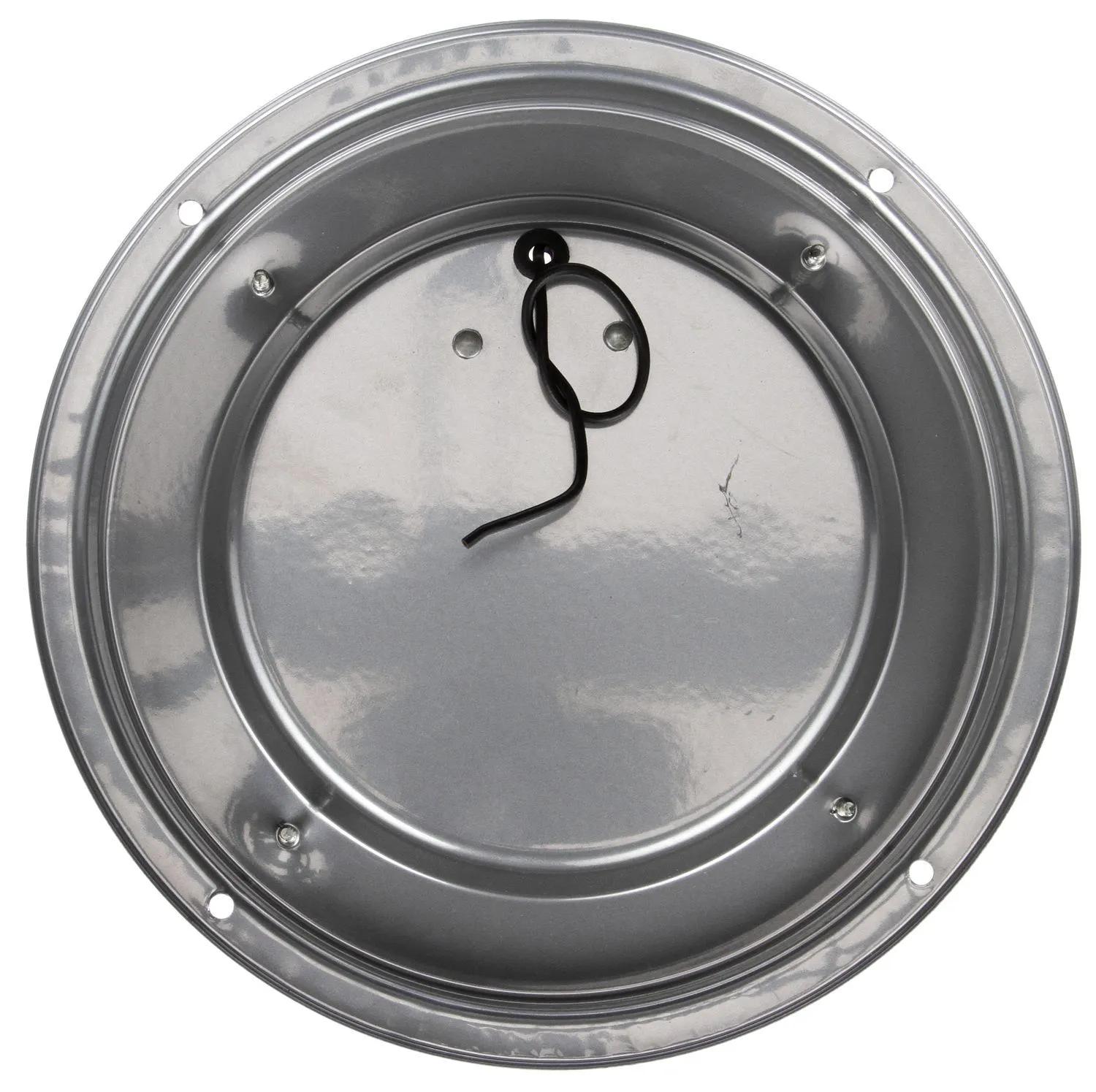

Dome Light, Clear, Round
#TRL80357
Product Overview
80 Series, Incandescent, 1 Bulb, Round Clear, Dome Light, Silver Flange Mount, Hardwired, Stripped End, 12V
Features & Benefits
- Available with push style on/off switch
- Choice of chrome-plated or epoxy-powder coated steel housing
- Lens attaches to housing with four screws
- Uses flanged mounting to mount to a flat surface
- Replacement Lens #99080C
Specifications
| Amps | 2.1 amp |
| Color | White |
| Common Size | 7 in (17.78 cm) |
| Depth | 2-5/32 in (5.49 cm) |
| Height | 8-1/4 in (20.96 cm) |
| Housing Color | Silver |
| Kit (Y/N) | No |
| Lens Height | 7-1/64 in (17.83 cm) |
| Lens Material | Acrylic |
| Lens Width | 7-1/64 in (17.83 cm) |
| Material | Steel |
| Mount Type | Flange Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Dome Light |
| Shape | Round |
| Switch | No |
| Technology | Incandescent |
| VMRS Code | 034-004-089 |
| Volt | 12V |
| Weight | 0.5 lb (0.23 kg) |
| Width | 8-1/4 in (20.96 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 8413-80357 |
| LIT80357 |
| TL 80357 |
| TL 80357 |
| TL80357 |
| TLD80357 |
| 800-108500 |
