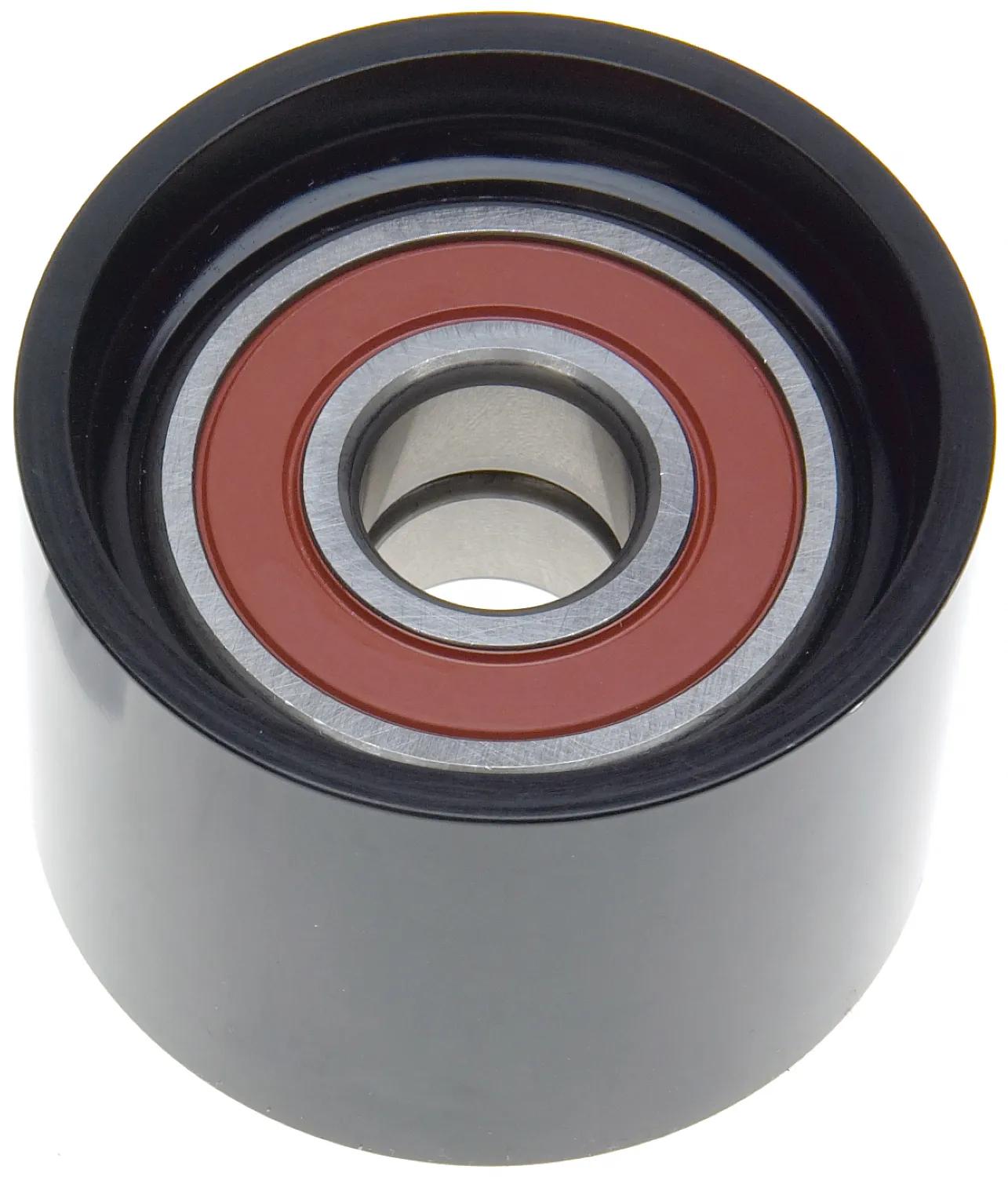

Gates DriveAlign Heavy Duty Steel Idler Pulley, OD: 2.76 in (70 mm), ID: 0.79 in (20 mm), Smooth Backside Contact
#GAT36286
Product Overview
DriveAlign™ Idler Pulleys provide OE-quality fit to passenger cars and light trucks, performing as locked center tensioning pulleys, automatic belt tensioner pulleys, or idler pulleys. Built to last with superior resistance to dirt, salt, chemicals, and other under-hood contaminants, these pulleys feature steel and thermoplastic construction for high durability, heat dissipation, and vibration damping, extending the life of the tensioner and accessory components.Idler Pulley, Heavy Duty, Steel, Smooth/Backside Contact Surface, Heavy Duty Pulley, 20 mm ID, 1 Pulleys, 70 mm OD, No Pulley 1 Flanged, 50 mm Width
Features & Benefits
- Designed For Use On Automobiles & Light Trucks As Locked Center Tensioning, Automatic Belt Tensioning & Idler Pulleys.
- Features The Industry's Best Light-Duty Coverage & Is Consistently First To Market For Late Model Applications.
- Steel Or Thermoplastic Construction Provides High Durability & The Vibration Damping System Extends Life Of The Tensioner & Other Accessory Components.
- DriveAlign Idler Pulleys Are Built To Last By Resisting Dirt, Salt & Other Under-Hood Contaminants.
- High Quality, High Strength Bearings Run Cooler & Last Longer Than Original Bearings.
- Additional Hardware Included w/ Most Idler Pulleys To Make Installation Easier.
- OE-quality fit to virtually every domestic or import vehicle on the road today.
- Bearings meet or exceed OE standards with application-specific speed and load requirements, with high operating temperature tolerance and less wobble.
- Gates idler pulleys also reduce wear, vibration, and friction on belts, thereby extending belt service life.
- Reliable operation under severe conditions.
Specifications
| Belt Top Width | 1-7/8 to 2 in |
| Contact Surface | Smooth/Backside |
| Inside Diameter | 11/32 in |
| Material | Steel |
| # of Pulleys | 1 |
| Outside Diameter | 2-29/32 in |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 25/32 in |
| Type | Heavy Duty |
| Width | 1-31/32 in / 50 mm |
| Heavy Duty Pulley | Yes |
| Includes | Pulley |
| Number of Grooves | 0 |
| Number of Pulleys | 1 |
| Product Category | Idler Pulley |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 20935329 |
| 20953521 |
| 20953529 |
| 900487 |
| 900487A |
| 20457029 |
