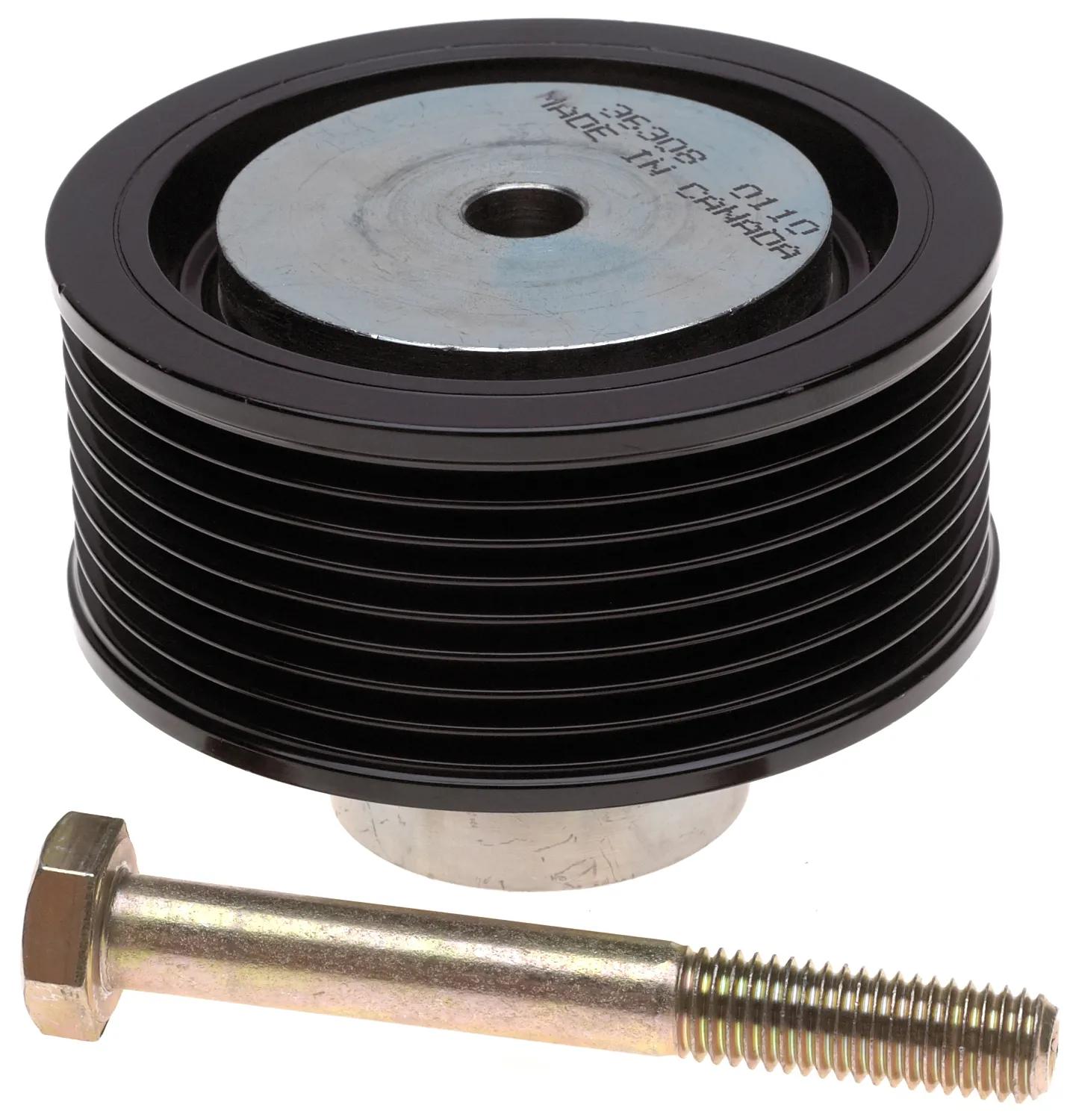

Belt Pulley, OD: 3-1/4 in, ID: 5/8 in, Contact: V-Ribbed Grooved
#GAT36308
Product Overview
No Need to Reuse Old Hardware that Significantly Increases Installation Time.
Features & Benefits
- Steel or Thermoplastic Construction Provides High Durability & the Bearings are Designed for Application-Specific Speed & Load Requirements.
- The Supplier of UAP Inc Belts/Hose Time-Saver DriveAlign Idler Pulleys is a Leading Manufacturer of Original Equipment (OE).
- The Vibration Damping System Extends Life of the Tensioner & Other Accessory Components.
- Time-Saver Pulleys Feature Reliable Operation Under Severe Conditions Because TheyÆre Built to Resist Dirt, Salt & Under-Hood Contaminants.
- UAP Inc Belts/Hose Time-Saver DriveAlign Idler Pulleys are Specifically Designed to Reduce Installation Time.
- All Hardware is Attached for Quick & Convenient Installation.
Specifications
| Belt Top Width | 1-3/8 to 1-1/2 in (3.51 to 3.81 cm) |
| Contact Surface | V-Ribbed Grooved |
| Contents | Pulley; Bolt; Dust Shield; Retainer; Spacer |
| Inside Diameter | 5/8 in (1.6 cm) |
| Material | Steel |
| # of Grooves | 8 |
| # of Pulleys | 1 |
| Outside Diameter | 3-1/4 in (8.26 cm) |
| Pulley 1 Flanged | No |
| Pulley Bore ID | 1-3/16 in (3.02 cm) |
| Width | 1-27/64 in (3.61 cm) |
Interchanges & Equivalent parts:
| 3400883 |
| 3400884 |
| 49176 |
| 900502 |
| 900502A |
