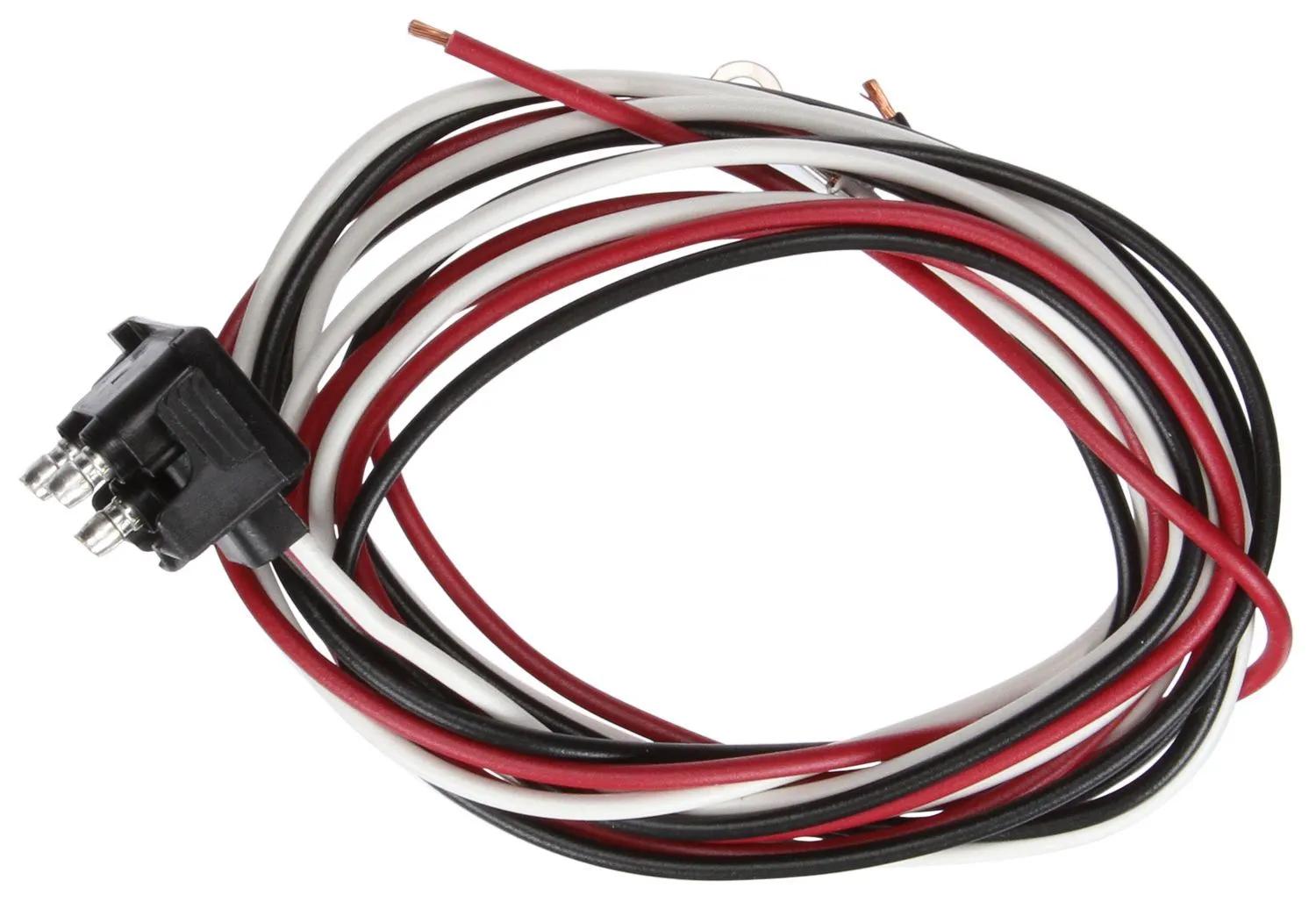

Stop/Tail/Turn Plug, 3 Wires, Le: 49 in
#TRL94931
Product Overview
Stop/Turn/Tail Plug, 16 Gauge GPT Wire, Right Angle PL-3, Stripped End/Ring Terminal, 49 in.
Features & Benefits
- For use with double contact sealed incandescent lamps
- 16 gauge GPT wire
- Tin plated brass terminals
- Tin plated brass terminals
- 16 gauge GPT wire
- Tin plated brass terminals
Specifications
| Kit (Y/N) | No |
| Length | 49 in (124.46 cm) |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Stop/Tail/Turn Plug |
| Type | Right Angle S/T/T |
| VMRS Code | 025-001-086 |
| Weight | 0.18 lb (0.08 kg) |
| Wire Color | Black, Red, White |
| Wire Connector Material | GPT Wire, Tin Plated Brass |
| Wire Gauge | 16 ga |
| Wire Type | GPT |
Interchanges & Equivalent parts:
| 59800035 |
| 55939 |
| 1059800035 |
| 357344 |
| 81062 |
| 837053425 |
| 841394931 |
| 75089377 |
| 66843 |
| 6702126 |
| 94931 |
| HT50603160 |
| TL94931 |
| TLD94931 |
| TRU94931 |
| MTL094931 |
| 15465468 |
| 1305541H1 |
| 94930 |
| 81162 |
| 8413-94931 |
| LIT94931 |
| TL 94931 |
| TL 94931 |
| TLT 94931 |
| TKL94931 |
