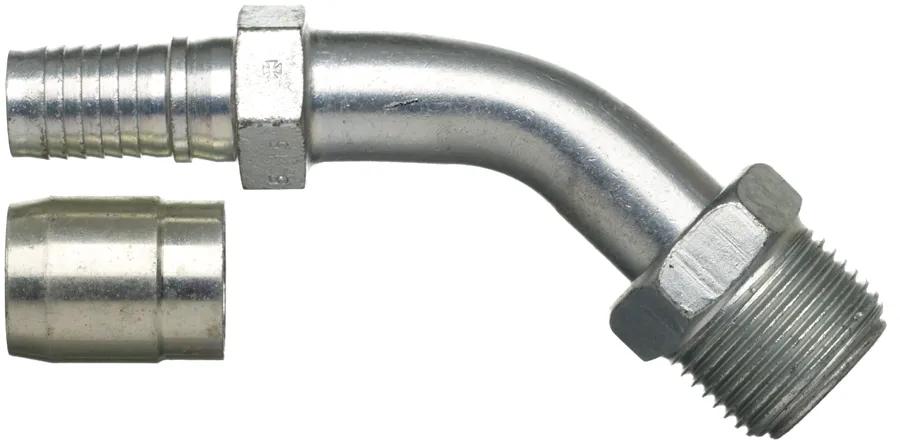

Hydraulic Coupling, C14 SAE Inverted Swivel, 10C14-10MIX45
#GATG40502-1010
Product Overview
Gates C14 Couplings Are For Use w/ Gates C14 PTFE Hose Only.
Features & Benefits
- Available in Common Terminations Such as NPTF, SAE & JIC.
- Offered in 14 Different Configurations, Ranging in Size -4 Through -16.
Specifications
| Description d'accouplement | C14 SAE Male Inverted Swivel - 45 Bent Tube - Steel |
| Coupure (po) – C | 2-43/64 po (6,78 cm) |
| Chute (po.) | 1-11/32 po (3,4 cm) |
| Recommandations pour le tuyau | GatesC14 et C14CT |
| Description industrielle | 10C14-10MIX45 |
| Diamètre intérieur | 1/2 po (1,27 cm) |
| Longueur | 3-3/8 po (8,59 cm) |
| Écrou hexagonal (po) – H2 | 1/32 po (0,08 cm) |
| Dimension de la clé d'écrou | 7/8 po (2,24 cm) |
| Stem Hex (in.) | 3/4 po (1,91 cm) |
| Type | Raccord pivotant inversé mâle C14 SAE - Tube coudé à 45 degrés - Acier |
Interchanges & Equivalent parts:
| G40502-1010 |
| 775320695 |
