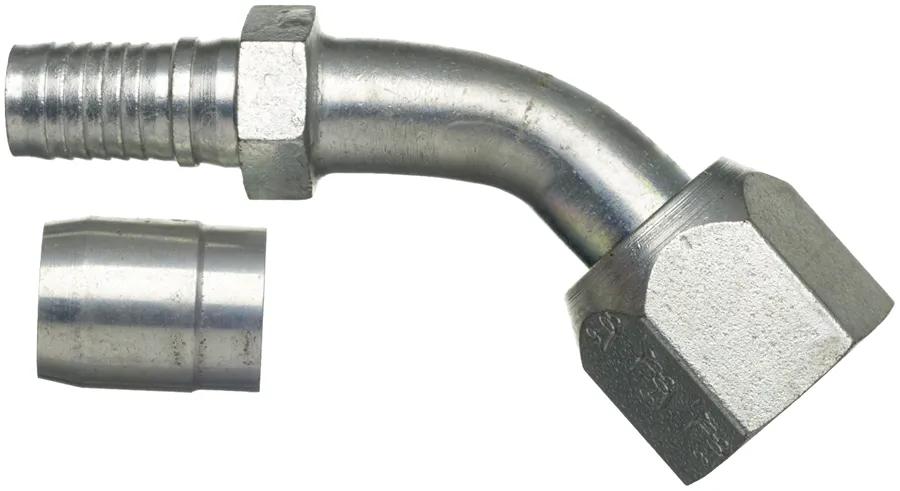

Hydraulic Coupling, C14 SAE 45 Flare Swivel, 12C14-12FSX45
#GATG40202-1212
Product Overview
Gates C14 Couplings Are For Use w/ Gates C14 PTFE Hose Only.
Features & Benefits
- Available in Common Terminations Such as NPTF, SAE & JIC.
- Offered in 14 Different Configurations, Ranging in Size -4 Through -16.
Specifications
| Description d'accouplement | C14 Female SAE 45 Flare Swivel - 45 Bent Tube - Steel |
| Cut Off (in) – C | 3-5/32 po (8,03 cm) |
| Drop (in.) | 29/32 po (2,31 cm) |
| Hose Recommendation | GatesC14 et C14CT |
| Industrial Description | 12C14-12FSX45 |
| Inside Diameter | 5/8 po (1,6 cm) |
| Length | 3-59/64 po (9,96 cm) |
| Nut Hex (in) – H2 | 3/64 po (0,13 cm) |
| Nut Hex Size | 1-1/4 po (3,18 cm) |
| Thread | 1-1/16 po-14 |
| Type | Raccord pivotant évasé femelle C14 SAE 45 - Tube coudé à 45 degrés - Acier |
Interchanges & Equivalent parts:
| G40202-1212 |
| 775320645 |
