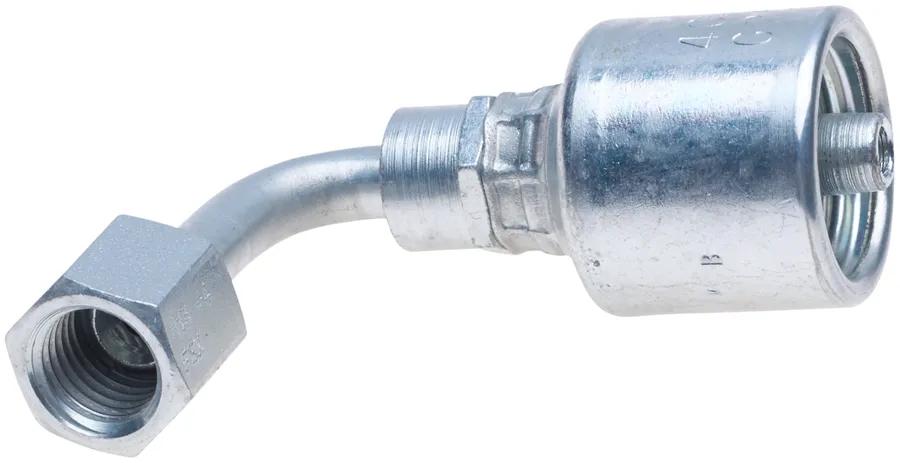

MegaCrimp Female SAE 45 Flare Swivel, 90*, 12G-12FSX90
#GATG25205-1212
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Description d'accouplement | MegaCrimp Female SAE 45 Flare Swivel - 90 Bent Tube |
| Coupure (po) – C | 1-15/16 po (4,93 cm) |
| Chute (po.) | 2-25/32 po (7,06 cm) |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 12G-12FSX90 |
| Diamètre intérieur | 3/4 po (1,91 cm) |
| Longueur | 3-15/16 po (10,01 cm) |
| Écrou hexagonal (po) – H2 | 3/64 po (0,13 cm) |
| Dimension de la clé d'écrou | 1-1/4 po (3,18 cm) |
| Type de joint d'étanchéité | Mated Angle |
| Seat | Standard |
| Seat Angle (degree) | 45 deg |
| Swivel | Oui |
| Thread | 1-1/16 po-14 |
| Type | Raccord pivotant évasé femelle MegaCrimp SAE 45 - Tube coudé à 90 degrés |
Interchanges & Equivalent parts:
| G25205-1212 |
| 710002185 |
