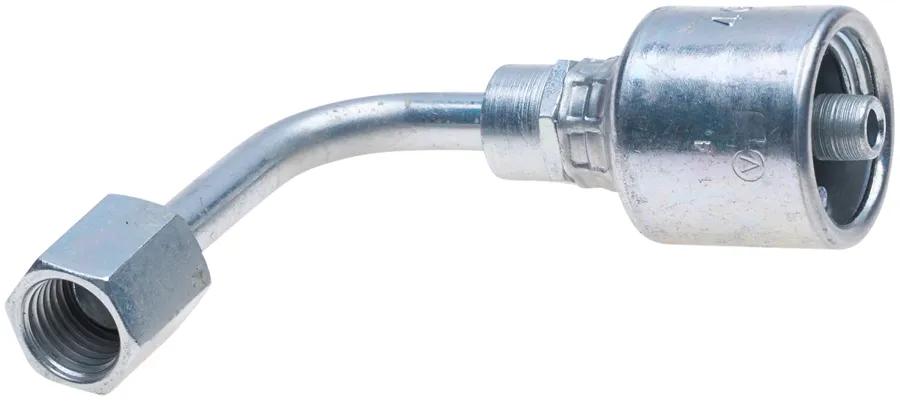

MegaCrimp Female JIC 37 Flare Swivel, 90*, 12G-14FJX90-100
#GATG25181-1214
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Description d'accouplement | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Coupure (po) – C | 2-7/32 po (5,64 cm) |
| Drop (in.) | 3-15/16 po (10,01 cm) |
| Fitting Type | Femelle |
| Hose Recommendation | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Industrial Description | 12G-14FJX90-100 |
| Inside Diameter | 3/4 po (1,91 cm) |
| Length | 4-15/64 po (10,74 cm) |
| Nut Hex (in) – H2 | 1-27/64 po (3,61 cm) |
| Seal Type | Mated Angle |
| Seat | Standard |
| Seat Angle (degree) | 37 deg |
| Swivel | Oui |
| Thread | 1-3/16 po-12 |
| Type | Raccord pivotant évasé femelle MegaCrimp JIC 37 - Tube coudé à 90 degrés |
Interchanges & Equivalent parts:
| G25181-1214 |
| 710347625 |
