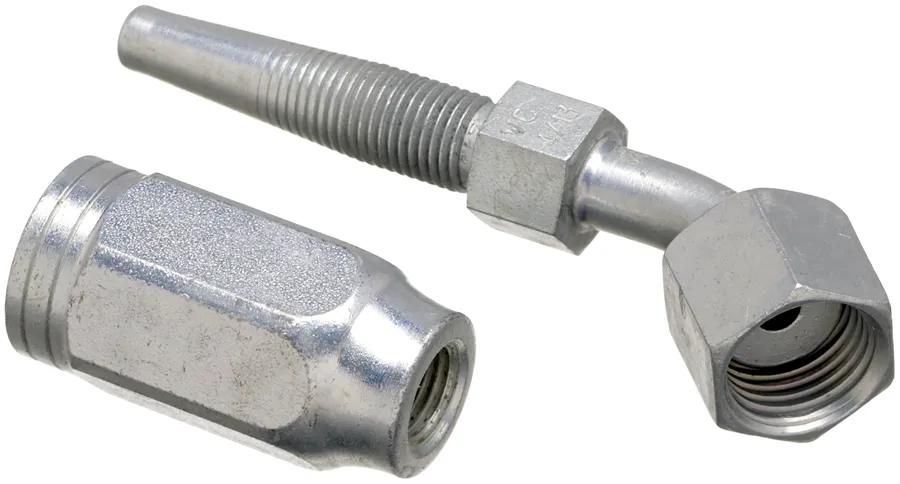

Field Attachable Coupling, Type T for G2 2, 12C2AT-12RFFORX45S
#GATG28234-1212
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- SAE J1453 O-Ring Face Seal.
- Field Attachable Type T Couplings for G1 (1-Wire) & G2 (2-Wire) Hose Are a Solution When Crimping is Not an Option.
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Coupling Description | Field Attachable Type T for G2 2-Wire Hose Female Flat-Face O-Ring Swivel - 45 Bent Tube |
| Cut Off (in) – C | 3-3/64 in (7.75 cm) |
| Drop (in.) | 1-13/16 in (4.6 cm) |
| Hose Recommendation | Gates 2-Wire - Global G2; Global G2L PolarFlex (-4 through -24); Hot Oiler |
| Industrial Description | 12C2AT-12RFFORX45S |
| Inside Diameter | 3/4 in (1.91 cm) |
| Length | 4-19/32 in (11.66 cm) |
| Nut Hex (in) – H2 | 3/64 in (0.13 cm) |
| Nut Hex Size | 1-1/4 in (3.18 cm) |
| Stem Hex (in.) | 7/8 in (2.24 cm) |
| Thread | 1-3/16 in-12 |
| Type | Field Attachable Coupling, Type: T for G2 2 |
Interchanges & Equivalent parts:
| G28234-1212 |
| 723114365 |
