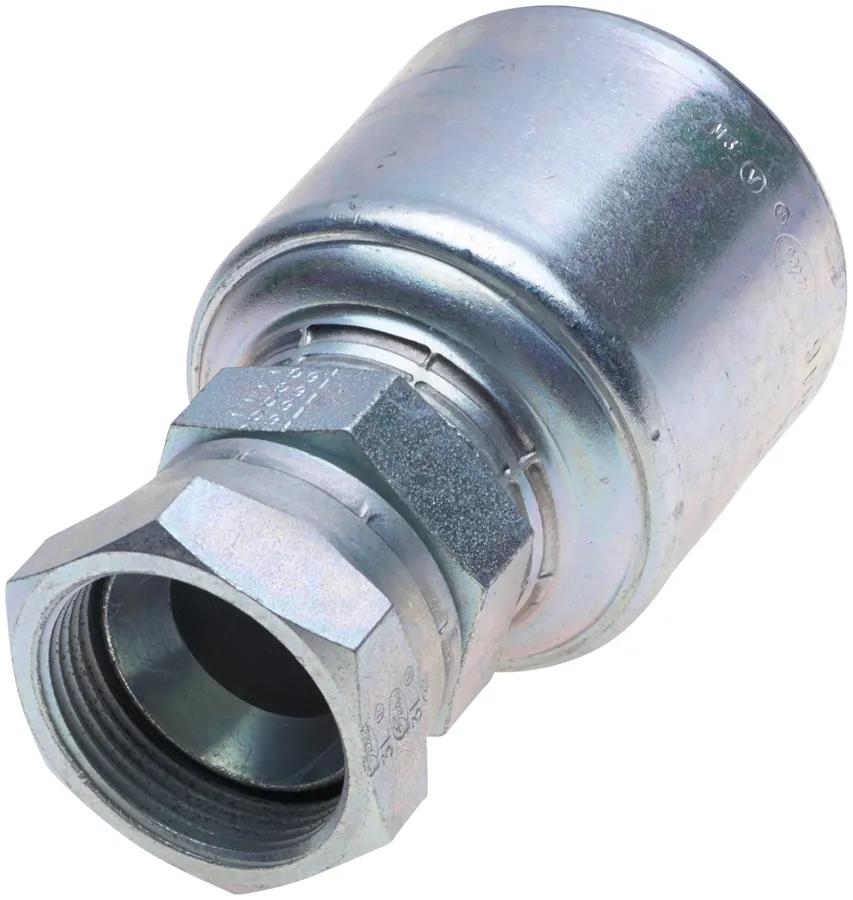

MegaCrimp Female Parker Triple Thread Flare, 16G-16FZX
#GATG25562-1616
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Description d'accouplement | MegaCrimp Female Parker Triple Thread Flare |
| Coupure (po) – C | 1-3/4 po (4,45 cm) |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 16G-16FZX |
| Diamètre intérieur | 1 po (2,54 cm) |
| Longueur | 3-63/64 po (10,11 cm) |
| Écrou hexagonal (po) – H2 | 1/16 po (0,15 cm) |
| Dimension de la clé d'écrou | 1-1/2 po (3,81 cm) |
| Type de joint d'étanchéité | Mated Angle |
| Siège | Standard |
| Angle d'assise (degré) | 30 deg |
| Tige hexagonale (po) | 1-3/8 po (3,51 cm) |
| Pivot | Non |
| Filetage | 1-5/16 po-14 |
| Thread Type | Standard |
| Type | Raccord évasé à triple filetage femelle MegaCrimp Parker |
Interchanges & Equivalent parts:
| G25562-1616 |
| 710000015 |
