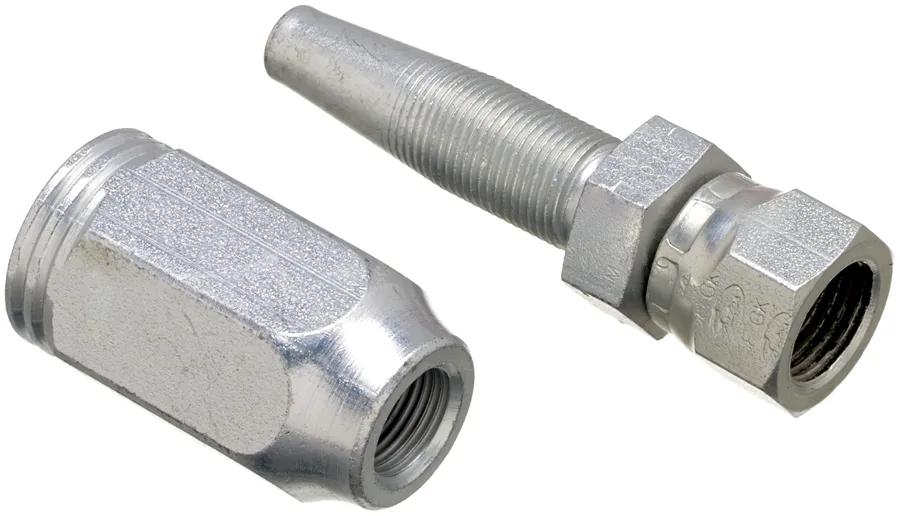

Field Attachable Coupling, Type: T for G2 2, 20C2AT-20RFJX
#GATG28170-2020
Product Overview
Need to Fix a Hydraulic Assembly in a Remote Location w/o Electricity?
Features & Benefits
- Be Sure to Clean the Hose & Finished Assembly as Needed to Avoid System Contamination.
- Field Attachable Type T Couplings for G1 (1-Wire) & G2 (2-Wire) Hose Are a Solution When Crimping is Not an Option.
- A Square Cut on the End of the Hose, Some Oil, a Vice & an Adjustable Wrench Are All ThatÆs Needed for Field Attachable Coupling Installation.
Specifications
| Description d'accouplement | Field Attachable Type T for G2 2-Wire Hose Female JIC 37 Flare Swivel |
| Coupure (po) – C | 2-47/64 po (6,93 cm) |
| Recommandations pour le tuyau | Gates2 fils - Global G2 ; G2H mondial (-20 et -24) ; Global G2L PolarFlex (-4 à -24) ; Huileur chaud |
| Description industrielle | 20C2AT-20RFJX |
| Diamètre intérieur | 1-1/4 po (3,18 cm) |
| Longueur | 4-27/32 po (12,29 cm) |
| Écrou hexagonal (po) – H2 | 5/64 po (0,2 cm) |
| Dimension de la clé d'écrou | 2 po (5,08 cm) |
| Stem Hex (in.) | 1-7/8 po (4,78 cm) |
| Thread | 1-5/8 po-12 |
| Type | Raccord pivotant évasé JIC 37 femelle pour tuyau à 2 fils G2 de type T à fixation sur le terrain |
Interchanges & Equivalent parts:
| G28170-2020 |
| 723181237 |
