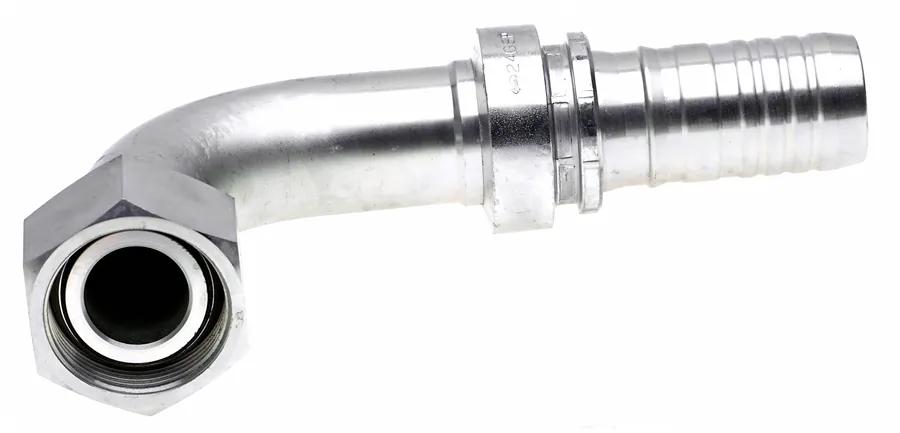

GlobalSpiral Plus Pipe O-Ring Swivel, 90*, 24GSP-24FBSPORX90
#GATG22832-2424
Product Overview
Gates GlobalSpiral Plus No-Skive Couplings Are For Use on 1 1/2 in. & 2 in. Spiral & Wire Braid Hoses Requiring a Working Pressure of 3000 PSI or Less.
Features & Benefits
- Separate Ferrules Are Required for 4-Spiral Hose & Wire Braid Hose.
- S, M & L Drops per ISO Final Draft International Standard 12151-6.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & the Contamination of the Fluid Power System.
- Just Like GlobalSpiral Couplings, the Innovative, 2-Piece, No-Skive Design is Fast, Secure & Allows for Tailor Made Assemblies.
Specifications
| Coupling Description | GlobalSpiral Plus Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube |
| Cut Off (in) – C | 4-3/4 in (12.07 cm) |
| Drop (in.) | 3-15/16 in (10.01 cm) |
| Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Industrial Description | 24GSP-24FBSPORX90 |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 7-21/32 in (19.46 cm) |
| Nut Hex (in) – H2 | 1-31/32 in (5 cm) |
| Thread | 1-1/2 in-11 |
| Type | GlobalSpiral Plus Female British Standard Parallel Pipe O-Ring Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| G22832-2424 |
| 734795045 |
