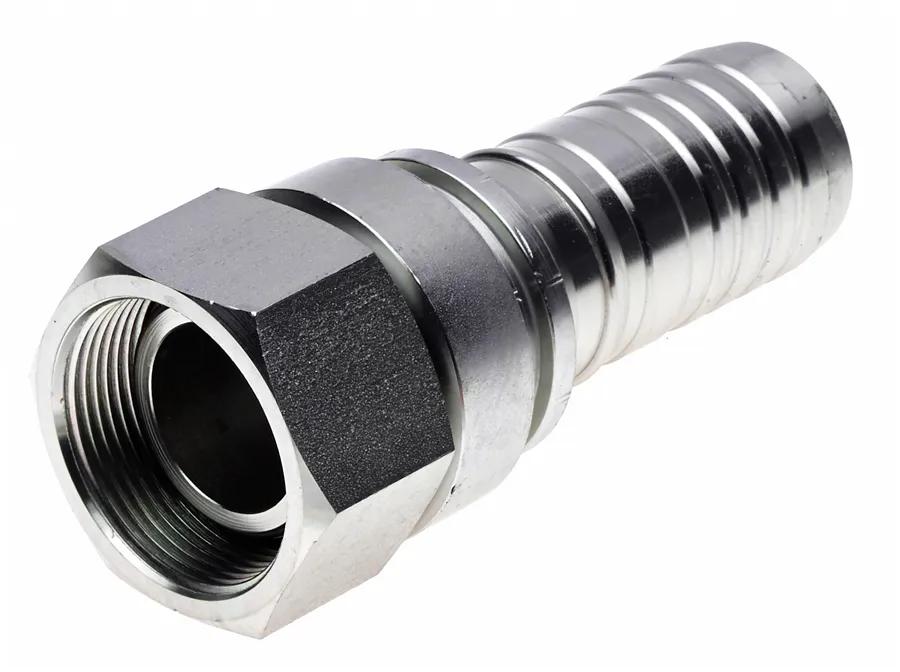

GlobalSpiral Plus Pipe O-Ring Swivel, 24GSP-24FBSPORX
#GATG22830-2424
Product Overview
Gates GlobalSpiral Plus No-Skive Couplings Are For Use on 1 1/2 in. & 2 in. Spiral & Wire Braid Hoses Requiring a Working Pressure of 3000 PSI or Less.
Features & Benefits
- Separate Ferrules Are Required for 4-Spiral Hose & Wire Braid Hose.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & the Contamination of the Fluid Power System.
- Just Like GlobalSpiral Couplings, the Innovative, 2-Piece, No-Skive Design is Fast, Secure & Allows for Tailor Made Assemblies.
Specifications
| Coupling Description | GlobalSpiral Plus Female British Standard Parallel Pipe O-Ring Swivel |
| Cut Off (in) – C | 2-1/64 in (5.13 cm) |
| Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Industrial Description | 24GSP-24FBSPORX |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 4-59/64 in (12.5 cm) |
| Nut Hex (in) – H2 | 2-11/64 in (5.51 cm) |
| Thread | 1-1/2 in-11 |
| Type | GlobalSpiral Plus Female British Standard Parallel Pipe O-Ring Swivel |
Interchanges & Equivalent parts:
| G22830-2424 |
| 734795025 |
