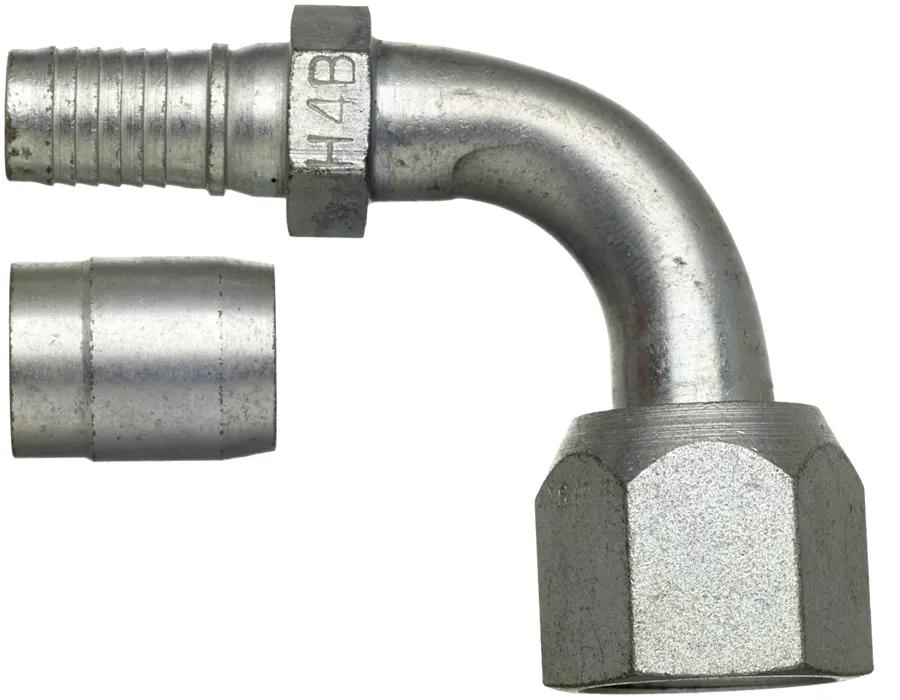

Hydraulic Coupling, C14 SAE 45 Flare Swivel, 4C14-4FSX90
#GATG40205-0404
Product Overview
Gates C14 Couplings Are For Use w/ Gates C14 PTFE Hose Only.
Features & Benefits
- Available in Common Terminations Such as NPTF, SAE & JIC.
- Offered in 14 Different Configurations, Ranging in Size -4 Through -16.
Specifications
| Coupling Description | C14 Female SAE 45 Flare Swivel - 90 Bent Tube - Steel |
| Cut Off (in) – C | 1 in (2.54 cm) |
| Drop (in.) | 45/64 in (1.78 cm) |
| Hose Recommendation | Gates C14 & C14CT |
| Industrial Description | 4C14-4FSX90 |
| Inside Diameter | 3/16 in (0.48 cm) |
| Length | 1-27/64 in (3.61 cm) |
| Nut Hex (in) – H2 | 1/64 in (0.05 cm) |
| Nut Hex Size | 9/16 in (1.42 cm) |
| Type | C14 Female SAE 45 Flare Swivel |
Interchanges & Equivalent parts:
| G40205-0404 |
| 775320255 |
