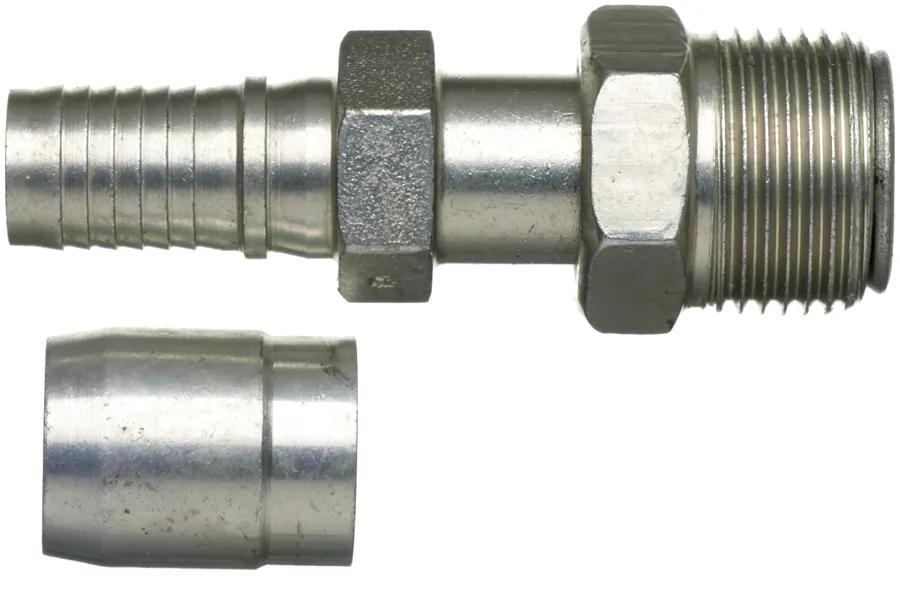

Hydraulic Coupling, C14 SAE Male Inverted Swivel, 5C14-5MIX
#GATG40500-0505
Product Overview
Gates C14 Couplings Are For Use w/ Gates C14 PTFE Hose Only.
Features & Benefits
- Available in Common Terminations Such as NPTF, SAE & JIC.
- Offered in 14 Different Configurations, Ranging in Size -4 Through -16.
Specifications
| Coupling Description | C14 SAE Male Inverted Swivel - Steel |
| Cut Off (in) – C | 1-29/64 in (3.68 cm) |
| Hose Recommendation | Gates C14 & C14CT |
| Industrial Description | 5C14-5MIX |
| Inside Diameter | 1/4 in (0.64 cm) |
| Length | 1-29/32 in (4.85 cm) |
| Nut Hex (in) – H2 | 1/64 in (0.05 cm) |
| Nut Hex Size | 1/2 in (1.27 cm) |
| Stem Hex (in.) | 1/2 in (1.27 cm) |
| Type | C14 SAE Male Inverted Swivel |
Interchanges & Equivalent parts:
| G40500-0505 |
| 775320315 |
