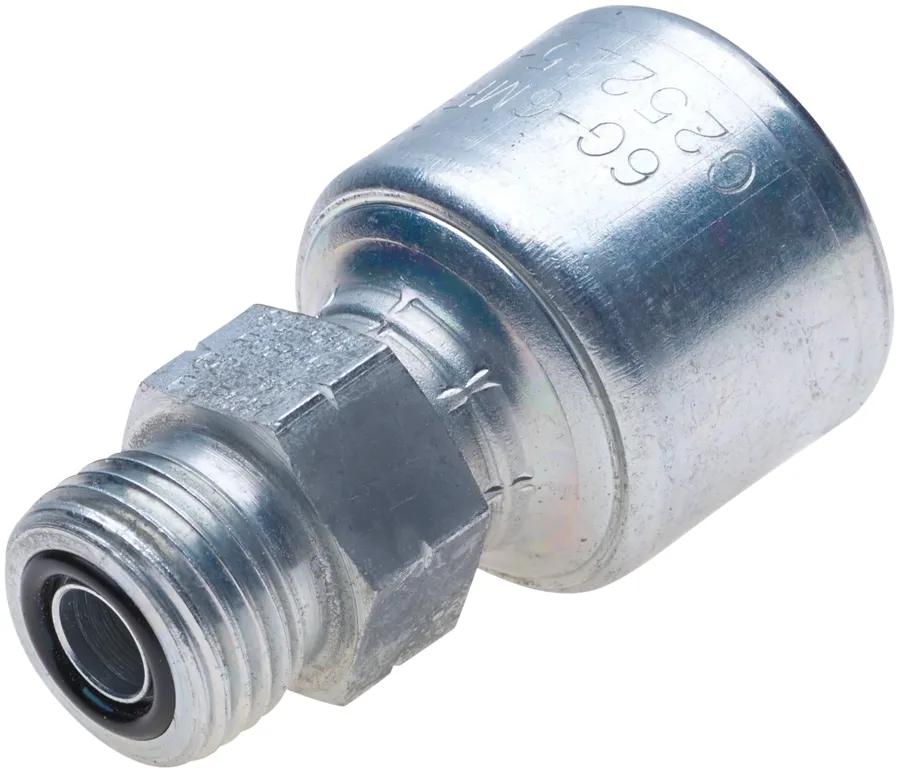

MegaCrimp Male Flat-Face O-Ring, 6G-10MFFOR
#GATG25225-0610
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- SAE J1453 Captive O-Ring Groove for Improved O-Ring Retention.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Male Flat-Face O-Ring |
| Coupure (po) – C | 1-27/64 po (3,61 cm) |
| Type de raccords | Mâle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 6G-10MFFOR |
| Diamètre intérieur | 3/8 po (0,97 cm) |
| Longueur | 2-33/64 po (6,4 cm) |
| Joint torique | Joint Torique à face plate |
| Type de joint d'étanchéité | Joint Torique |
| Diamètre intérieur du manchon | 1-1/16 po (2,69 cm) |
| Stem Hex (in.) | 1-1/16 po (2,69 cm) |
| Swivel | Non |
| Type | Joint torique à face plate mâle MegaCrimp |
Interchanges & Equivalent parts:
| G25225-0610 |
| 710416095 |
