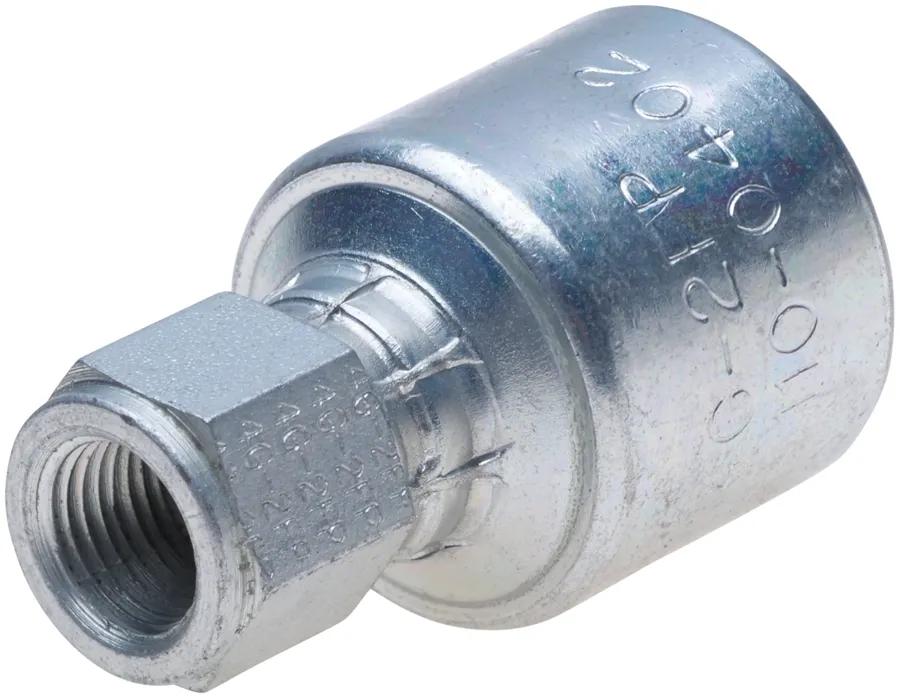

MegaCrimp Female Pipe (NPTF), 6G-8FP
#GATG25110-0608
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Female Pipe (NPTF - w/o 30 Cone Seat) |
| Coupure (po) – C | 1-5/32 po (2,95 cm) |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 6G-8FP |
| Diamètre intérieur | 3/8 po (0,97 cm) |
| Longueur | 2-15/64 po (5,66 cm) |
| Type de joint d'étanchéité | Thread Interference |
| Stem Hex (in.) | 1 po (2,54 cm) |
| Swivel | Non |
| Type | Raccord de tuyau femelle MegaCrimp (NPTF - sans siège conique à 30 degrés) |
Interchanges & Equivalent parts:
| G25110-0608 |
| 710010535 |
