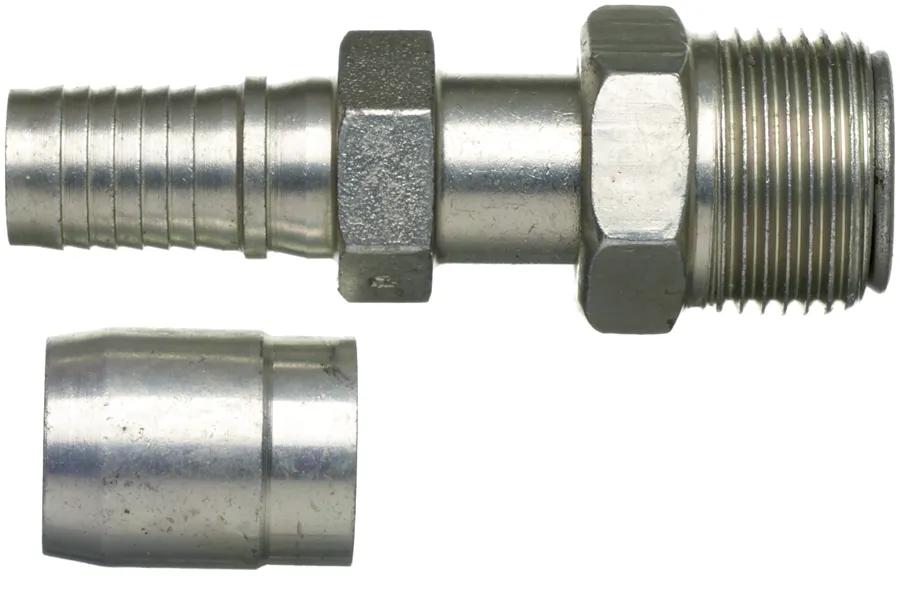

Hydraulic Coupling, C14 SAE Male Inverted Swivel, 8C14-8MIX
#GATG40500-0808
Product Overview
Gates C14 Couplings Are For Use w/ Gates C14 PTFE Hose Only.
Features & Benefits
- Available in Common Terminations Such as NPTF, SAE & JIC.
- Offered in 14 Different Configurations, Ranging in Size -4 Through -16.
Specifications
| Coupling Description | C14 SAE Male Inverted Swivel - Steel |
| Cut Off (in) – C | 1-19/32 in (4.04 cm) |
| Hose Recommendation | Gates C14 & C14CT |
| Industrial Description | 8C14-8MIX |
| Inside Diameter | 13/32 in (1.04 cm) |
| Length | 2-13/64 in (5.59 cm) |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 3/4 in (1.91 cm) |
| Stem Hex (in.) | 5/8 in (1.6 cm) |
| Type | C14 SAE Male Inverted Swivel |
Interchanges & Equivalent parts:
| G40500-0808 |
| 775320335 |
