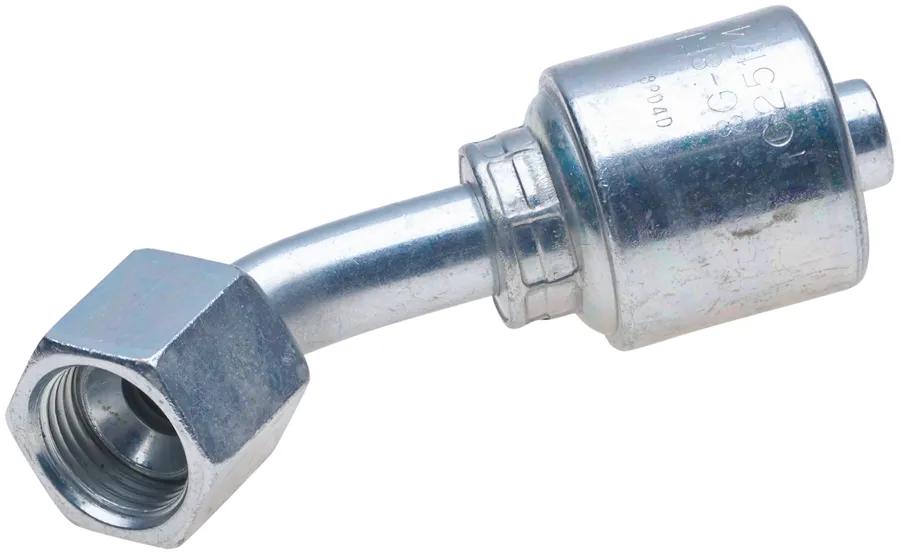

MegaCrimp Female JIC 37 Flare Swivel x 45° Bent Tube Coupling, Steel, 3/4-16 x 1/2 in, 8G-8FJX45S
Product Overview
Gates MegaCrimp Couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The pre-assembled coupling features a patented "C" insert attached to the ferrule, allowing usage with different hose constructions and wall thicknesses. This insert ensures even distribution of crimping forces to form a concentric, leak-free seal, simplifying inventory requirements. MegaCrimp couplings are fully qualified EN-performance couplings and have been tested to industry-leading standards, including surpassing one million impulse cycles during design testing.MegaCrimp Coupling, Steel, 3/4-16 Connection Size 1, 1/2 in Connection Size 2, Female JIC 37 deg Flare Swivel Connection Type 1, 45 deg Bent Tube Connection Type 2, 3.42 in Length
Features & Benefits
- This design ensures that crimping forces are evenly distributed to form a concentric, leak-free seal.
- Robust bite-the-wire crimp. Low profile. Full-stem insertion. Full-length crimp. Tested to industry-leading 600,000 impulse cycles.
- Simplifies inventory management. Environmentally-friendly TuffCoat plating for 345 percent better corrosion resistance than SAE standard.
- One MegaCrimp coupling size can accommodate various 1 and 2 wire braid hydraulic hoses of different constructions & wall thicknesses, simplifying inventory requirements, helping to reduce costs & simplifying coupling selection.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker; Gates® has engineered a solution – full-torque Nut™ technology now available on Gates® MegaCrimp™ and GlobalSpiral™ couplings.
- MegaCrimp couplings set a new standard for hydraulic couplings; the unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- Surpassed one million impulse cycles during design testing.
Specifications
| Angle | 45 deg |
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube |
| Cut Off (in) – C | 1-61/64 in |
| Drop (in.) | 19/32 in |
| Finish | TuffCoat plating |
| Fitting Type | Female |
| Height | 19/32 in |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 8G-8FJX45S |
| Inside Diameter | 1/2 in |
| Length | 3-27/64 in |
| Material | Steel |
| Nut Hex (in) – H2 | 15/16 in |
| OEM Part # | G25174-0808 |
| Product Number | 710346295 |
| Seal Type | Mated Angle |
| Seat | Standard |
| Seat Angle (degree) | 37 deg |
| Swivel | Yes |
| Type | MegaCrimp Female JIC 37 Flare Swivel - 45 deg Bent Tube |
| UPC | 072053404043 |
| Width | 15/16 in |
| Connection Size 1 | 3/4-16 |
| Connection Size 2 | 1/2 in |
| Connection Type 1 | Female JIC 37 deg Flare Swivel |
| Connection Type 2 | 45 deg Bent Tube |
| Operating Pressure | Tested to industry-leading 600,000 impulse cycles |
| Standards | EN-performance |
| Product Category | MegaCrimp Coupling |
| Weight | 0.38 lb (0.17 kg) |
