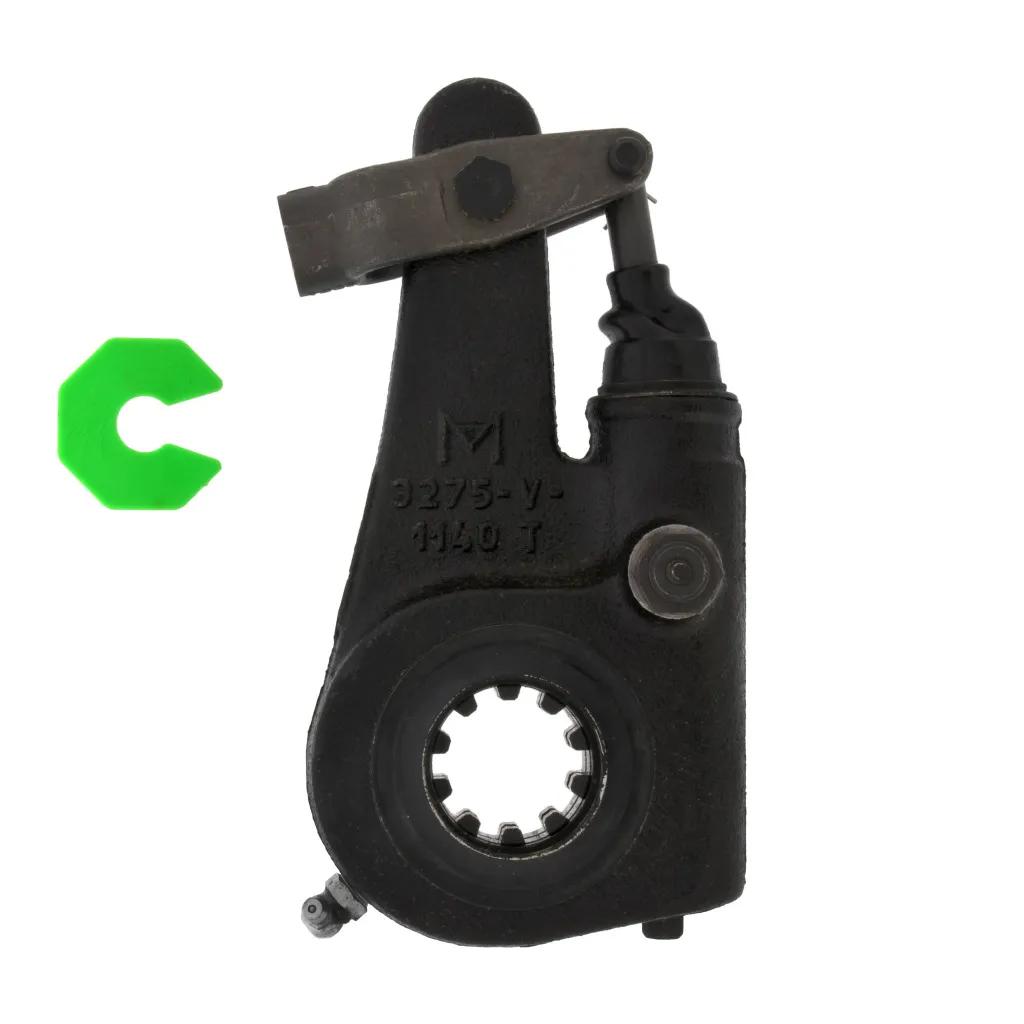

ASA, Spline: 1-1/2 in - 10, L: 5 1/2 in
#ROCR802332
Specifications
| Arm Length # 1 | 5-1/2 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 36 in (91.44 cm) |
| Clevis Thread Diameter (in.) | 5/8 in (1.59 cm) |
| Clevis Threads per inch | 18 in (45.72 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Green piston. Drum brake. |
| Number of Splines | 10 |
| Production Part Number | A78-3275-Z-1144 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| 4TA-3-1 |
| 76401-0002 |
| ATIR802332 |
| TDAR802332 |
| 05-561 |
| A1-3275U593S |
| AS1032 |
| E-11411 |
| E-6992A |
| GUNAS-1132 |
| K041870BXW |
| 8235-R802332 |
| A293275Z1144S |
| R802332-RI |
| TDA R802332 |
