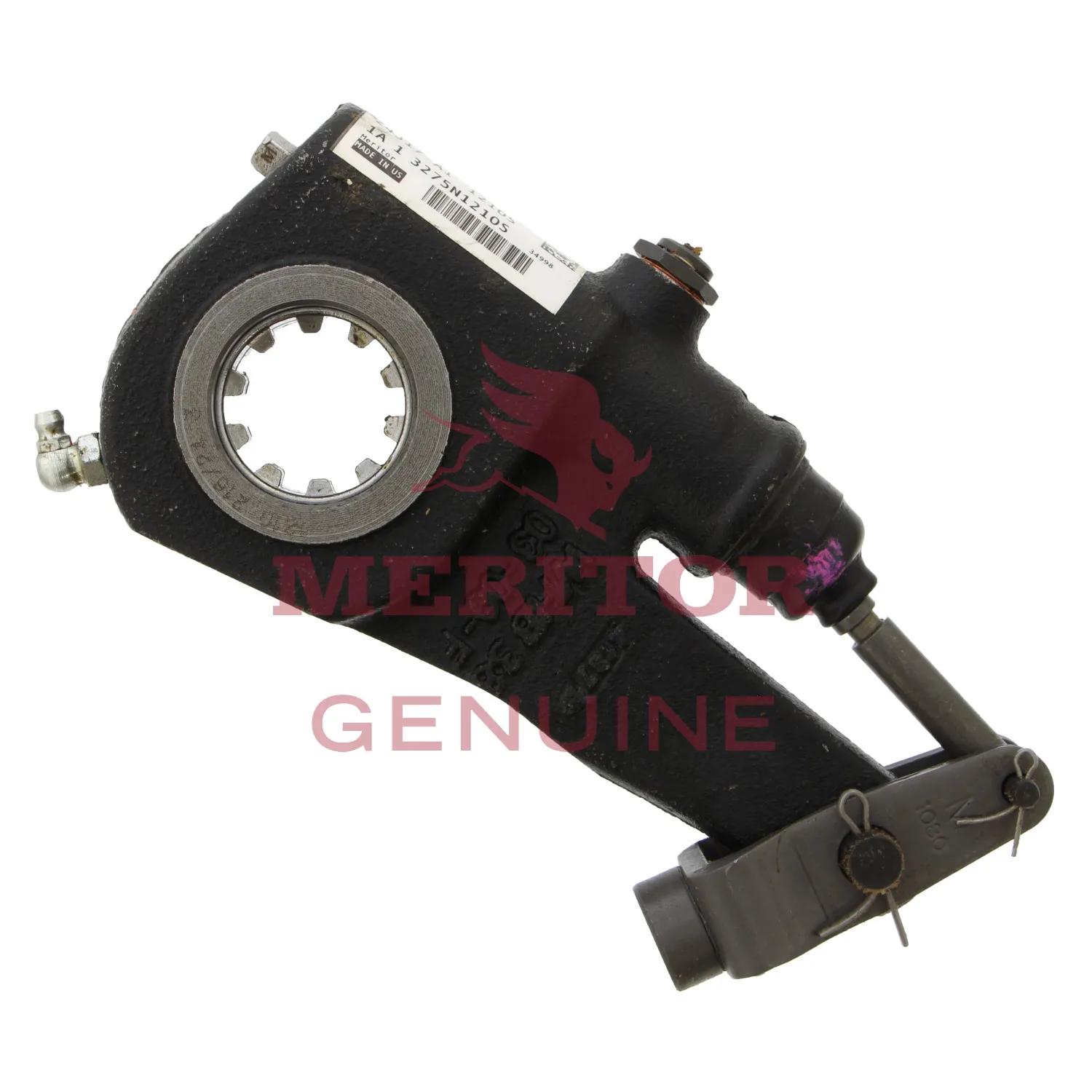

ASA, Spline: 1-1/2 in - 10, L: 6 in
#ROCR801049
Specifications
| Application | Remorque |
| Longueur de bras #1 | 6 po |
| Automatique ou manuel | Automatique |
| Dimension du frein | 12-1/4 po |
| Bushing I.D. | 1/2 po |
| Chamber Sizes | 30 po |
| Clevis Thread Diameter (in.) | 5/8 po |
| Clevis Threads per inch | 18 po |
| Clevis Type | Droit |
| Maximum Torque | Plus de 45 pouces-livres |
| Model | Meritor |
| Notes | Piston rouge, frein à tambour |
| Number of Splines | 10 |
| Production Part Number | A13275N1210S |
| Spline Diameter | 1-1/2 po |
| Spline Diameter-Spline Count | 1-1/2 po - 10 |
| Type | Détection de jeu |
Interchanges & Equivalent parts:
| A1-3275-N-1210S |
| ATIR801049 |
| TDA R801049 |
| TDAR801049 |
| A1-3275L792S |
| AS1033 |
| CS56033M1D |
| E6991A |
