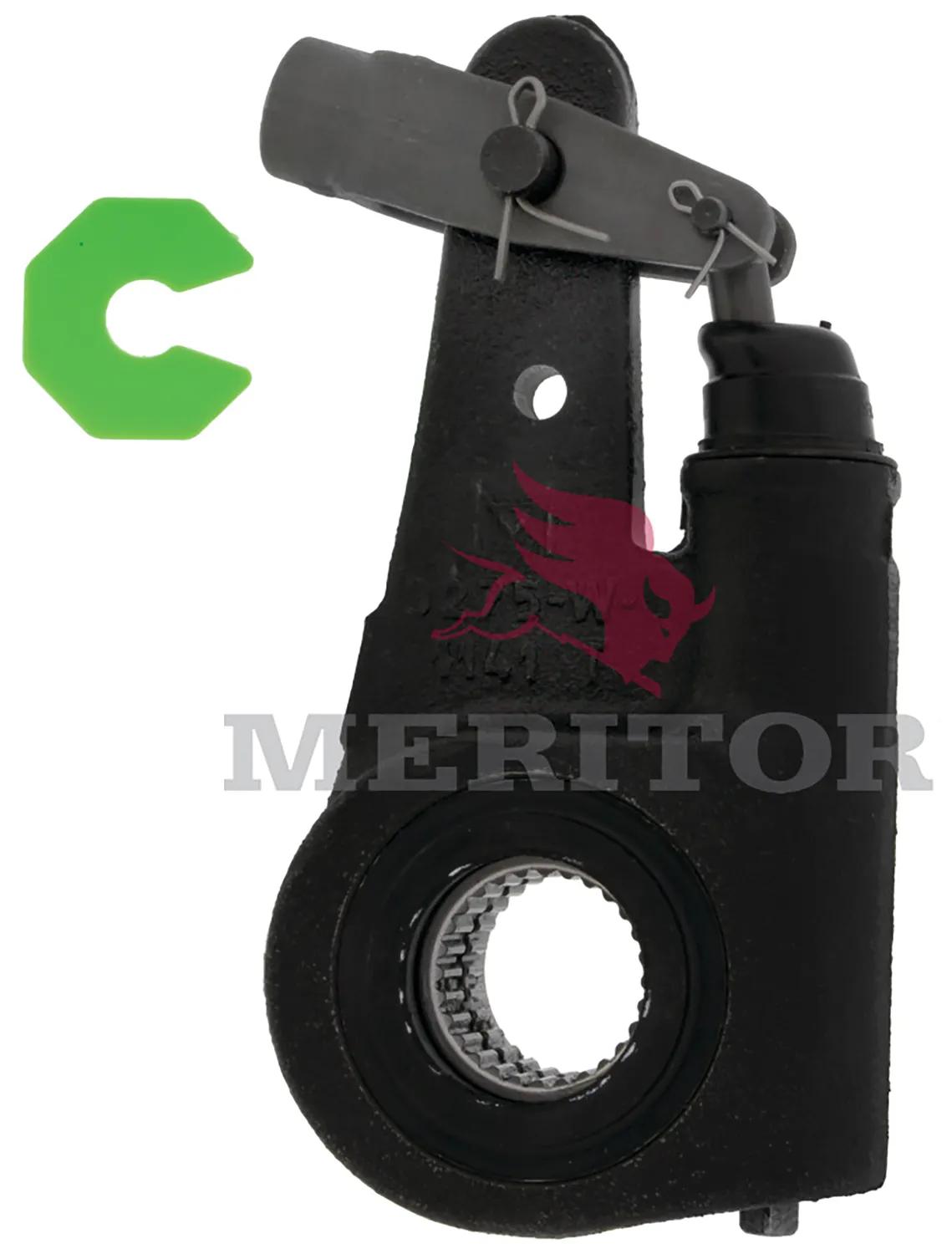

ASA, Spline: 1-1/2 in - 28, L: 5-1/2 in
#ROCR802649
Features & Benefits
- Enhances overall vehicle safety
- Ensures precise brake adjustment
- Increases brake system efficiency
- Features corrosion-resistant coating
- Provides reliable braking performance
- Minimizes brake system maintenance needs
- Meets industry standards and specifications
- Offers durability for extended service life
Specifications
| Arm Length # 1 | 5-1/2 in |
| Automatic or Manual | Automatic |
| Chamber Sizes | 24 in (60.96 cm) |
| Clevis Thread Diameter (in.) | 5/8 in (1.59 cm) |
| Clevis Threads per inch | 18 in (45.72 cm) |
| Clevis Type | Straight |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Yellow piston. Drum brake. |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
| Type | Stroke-Sensing |
Interchanges & Equivalent parts:
| A13275W1219S |
| 8235-R802649 |
| A15-3275-X-1194S |
| A2-3275-F-1046S |
| A9-3275-F-1046S |
| ATIR802649 |
| R802679 |
| TDA R802649 |
| TDAR802649 |
| A1-3275R1084S |
| R802451 |
| 40010180 |
| CS52364 |
