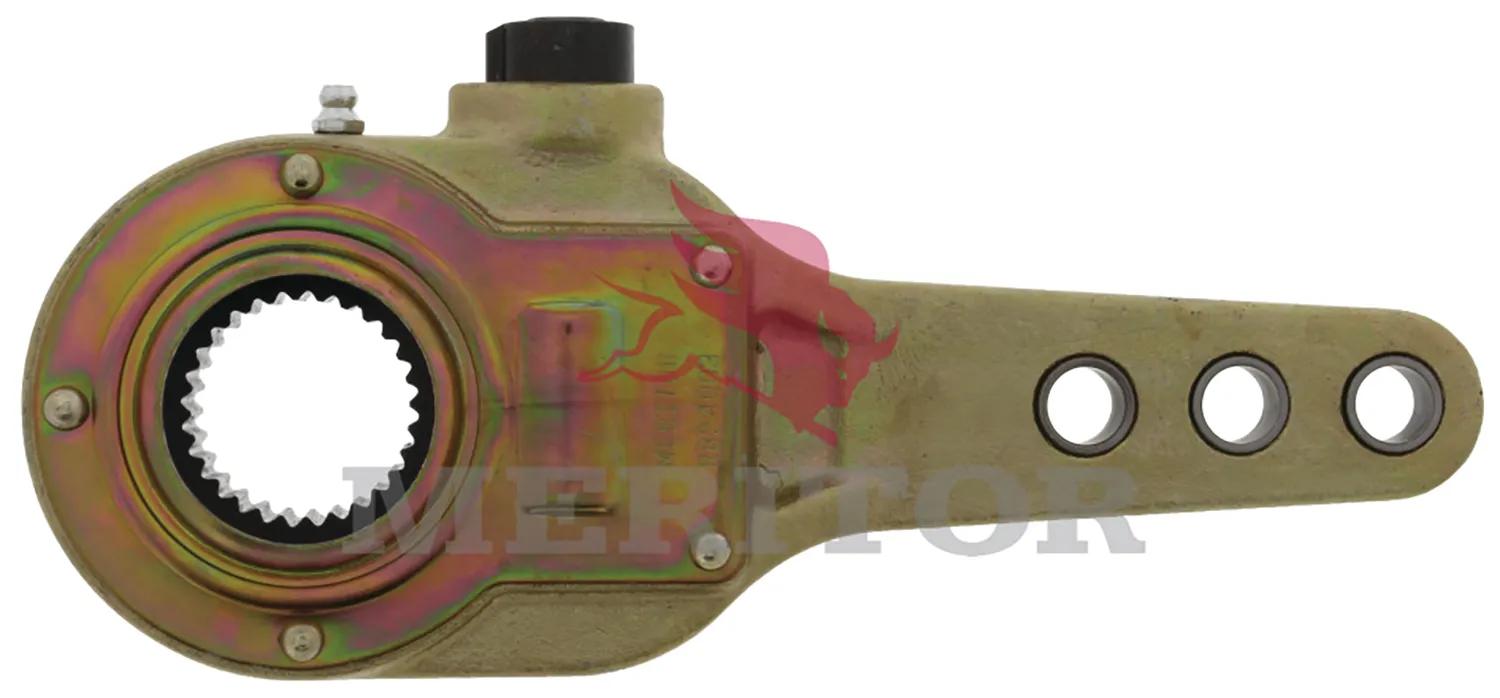

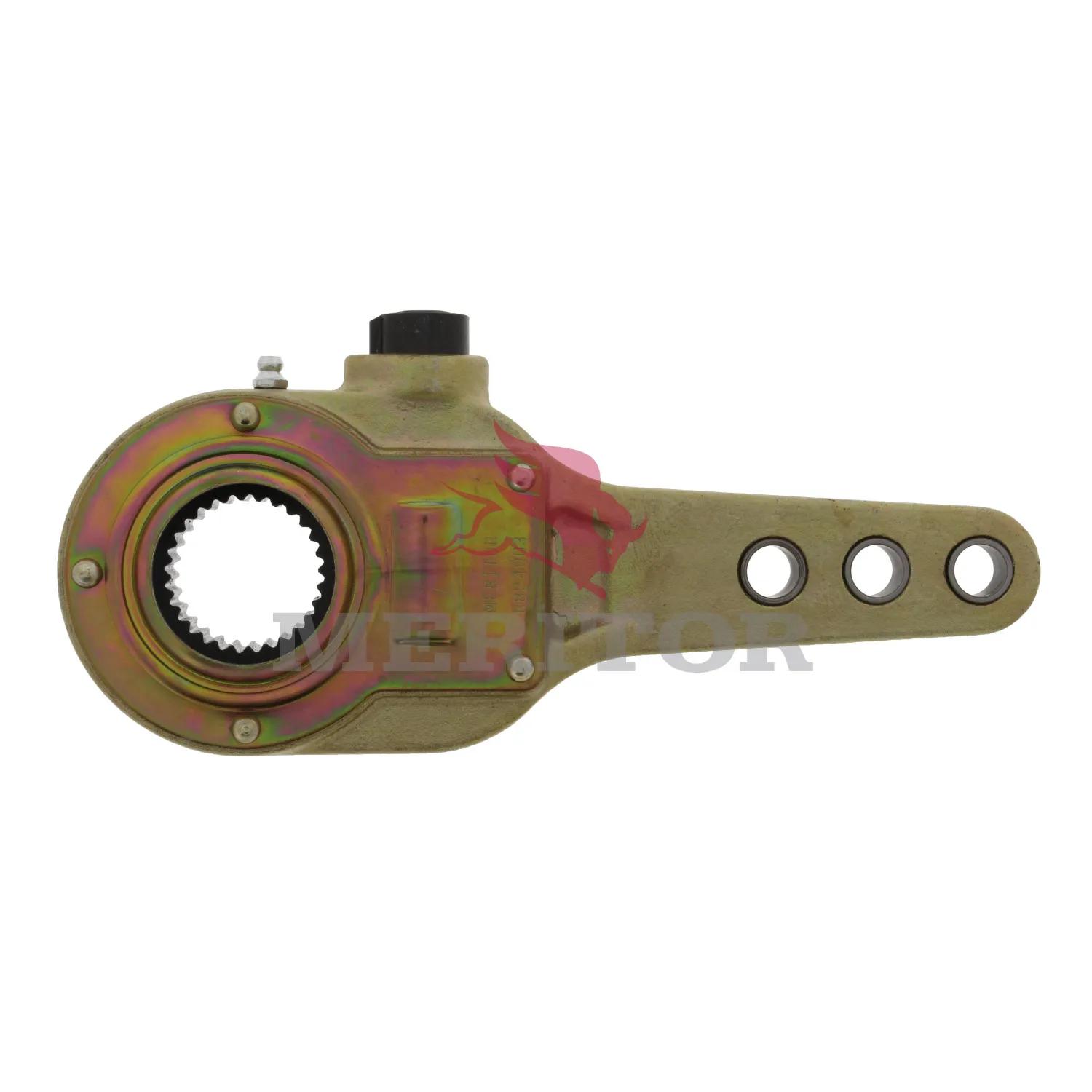

MSA, Spline: 1-1/2 in - 28, L: 5 in, 6 in, 7 in
#ROCR824003
Features & Benefits
- Meets FMVSS-121 standards
- Allows for easy manual operation
- Extends brake component lifespan
- Increases brake system efficiency
- Provides precise brake adjustment
- Ensures proper brake shoe clearance
- Reduces brake maintenance frequency
- Enhances vehicle safety on the road
Specifications
| Arm Length # 1 | 5 in, 6 in & 7 in |
| Automatic or Manual | Manual |
| Clevis Type | Straight |
| Clevis Thread Diameter (in.) | 1/2 in (1.27 cm) |
| Maximum Torque | 22000 |
| Notes | 22.000 lbs maximum. Economy slack |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 28 |
Interchanges & Equivalent parts:
| 05-238 |
| 05-238EQ |
| KN44071 |
| MERR824003 |
| MIDKN44071 |
| MSA112 |
| R822003 |
| 1693121C1 |
| 17A2367A |
| 17A2384 |
| 76401-3801 |
| 90186810 |
| ATIR824003 |
| GTA-KN44071 |
| L-1308 |
| R824003-RI |
| S-9863 |
| TDA R824003 |
| TDAR824003 |
| 10-355 |
| 1006809 |
| 10355 |
| 10355BULK |
| 25QD257P2 |
| 25QD341P2 |
| 25QD342P14 |
| 25QDA342P14 |
| 82069 |
| A3275X596 |
| A7087 |
| B213275X518 |
| B793275G501 |
| B923275G501 |
| E-2458 |
| E-2458HDBK |
| M28SJSOO572 |
| 05-262 |
| RWR824003 |
| 13MSST150281 |
| 1800150009 |
| 1800150018 |
| 195168 |
| 212135 |
| 288282BXW |
| 4RS49 |
| 5238 |
| 5262 |
| 85403171 |
| CA2200 |
| D8HZ21622C |
| H2022A |
| HPX5388X27 |
| KN44051M1D |
| M-2577 |
| M-3373 |
| M-638 |
| S2022A |
| SIRS2022A |
| WAKN44071 |
| 8235-R824003 |
| 1342841 |
| 1342840 |
| 05238 |
| 101133 |
| 101215 |
| 103345 |
| 286965 |
| 76401-3438 |
| E-2458S |
| KN44051 |
| OTR44051 |
| OTR44071 |
