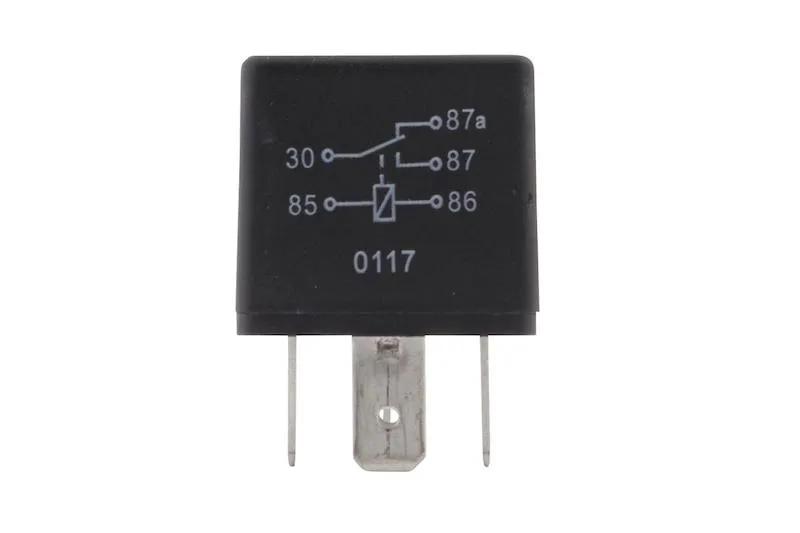

RELAY 12V 20/40A SPDT
#HLA933332051
Caractéristiques et avantages
- SPDT / Form C
- Dust Cover
Spécifications
Ampères | 40 amp |
Coil Resistance | 85 Ohm ± 10% |
Contact Form | 1 Form C / SPDT |
Contact Material | AgSnO2 |
Current (A) | 40 |
Dielectric strength | 1,000 VDC |
Hauteur | 1,2 in. |
Inductive Load / Switching Cycles | 15 amp |
IP Rating | IP54 DIN IEC 60 529 |
Lamp Load (capacitive) / Switching Cycles | N/C 10A, 100,000 cycles |
Longueur | 1,1 in. |
Max. Coil Voltage (V) | 20 |
Maximum Ambient Temperature (C) | -40 to +85 |
Max. Inrush Load | 150A |
Mechanical Cycles | 10000000 |
Mechanical Shock | Min. 10g. 11 ms: no contact openings <gt/> 10 |
Number of Poles | 5 |
Operating / Drop out Voltage | ≤ 8.0V / ≥1.0V |
Operating / Releasing Time | ≤ 10 ms / ≤ 5 ms |
Pole | Single |
Quantité | 1 |
Rated Continuous Load | N/C 20A at 85° C |
Relay Terminal | 5 Male |
Resistive Load / Switching Cycles | N/O 40A, N/C 20A, 100,000 cycles |
Suppression | None |
Nbre de bornes | 85, 86: ISO 8092 6.3 x 0.8, CuZn, gal Sn, 30, 87: ISO 8092 6.3 x 0.8, CuZn, 30, 87: ISO 8092 6.3 x 0.8, CuZn |
Type de borne | Borne de stock |
UPC | 760687122913 |
Vibration | 20 - 200 Hz, 5g: no contact openings <gt/> |
Volt | 12 V |
Tension électrique | 12 |
Largeur | 1,1 in. |
Wiring Harness Included | No |
