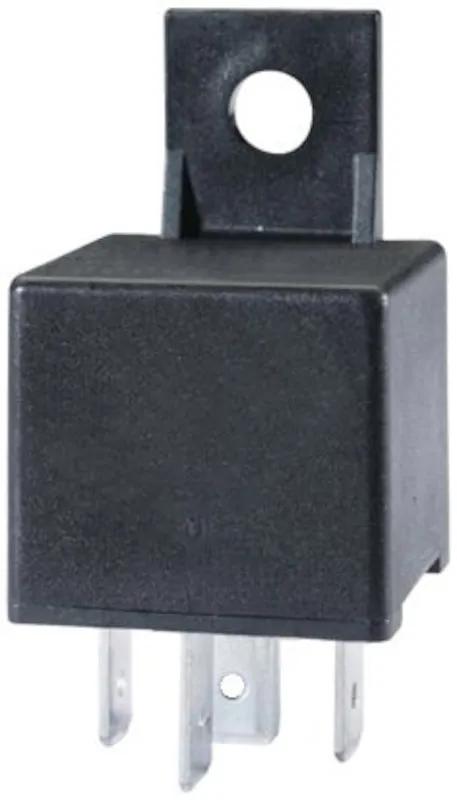

RELAY 12V 30A SPST BKT
#HLA965400001
Caractéristiques et avantages
- SPDT / Form A
- Alternate Footprint
- Mounting Bracket
Spécifications
| Coil Resistance | 90 Ohm ± 10% |
| Couleur | Black |
| Contact Form | 1 Form A / SPST N/O |
| Contact Material | AgSnO2 |
| Current (A) | 30 |
| Dielectric strength | 1,000 VDC |
| Hauteur | 2,09 in. |
| Inductive Load / Switching Cycles | 15 amp |
| IP Rating | IP54 DIN IEC 60 529 |
| Lamp Load (capacitive) / Switching Cycles | 16A 100,000 cycles |
| Longueur | 1,3 in. |
| Max. Coil Voltage (V) | 18 |
| Maximum Ambient Temperature (C) | -40 to +85 |
| Max. Inrush Load | 150A |
| Mechanical Cycles | 10000000 |
| Mechanical Shock | Min. 10g. 11 ms: no contact openings <gt/> 10 |
| Number of Poles | 4 |
| Operating / Drop out Voltage | <lt/> 7.2V 1.2V |
| Operating / Releasing Time | ≤ 10 ms / ≤ 7 ms |
| Pole | Single |
| Quantité | 1 |
| Rated Continuous Load | 30A at 85° C |
| Relay Terminal | 4 Male |
| Resistive Load / Switching Cycles | 30A, 100,000 cycles |
| Suppression | None |
| Nbre de bornes | 85, 86: ISO 8092 6.3 x 0.8, CuZn, gal Sn, 30, 87: ISO 8092 6.3 x 0.8, CuZn, 30, 87: ISO 8092 6.3 x 0.8, CuZn |
| Type de borne | Cosse ouverte |
| UPC | 760687123125 |
| Vibration | 20 - 200 Hz, 5g: no contact openings <gt/> |
| Volt | 12 V |
| Tension électrique | 12 |
| Largeur | 1,3 in. |
| Wiring Harness Included | No |
