Firestone Air Spring - Double Convoluted, 3-1/8 in Compressed Length, 20 Bellows
Product Overview
Although air springs are produced in single, double, triple convoluted, and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, Double Convoluted Air Spring, 3-1/8 in Compressed Length, 8.88 in Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Today, Airide Springs are Used by Practically All Manufacturers Who Offer Air Ride Suspensions on Their Vehicles.
- Airide Springs Were Pioneered & Perfected by Firestone, and Only Firestone Offers a Complete Line of Airide Springs.

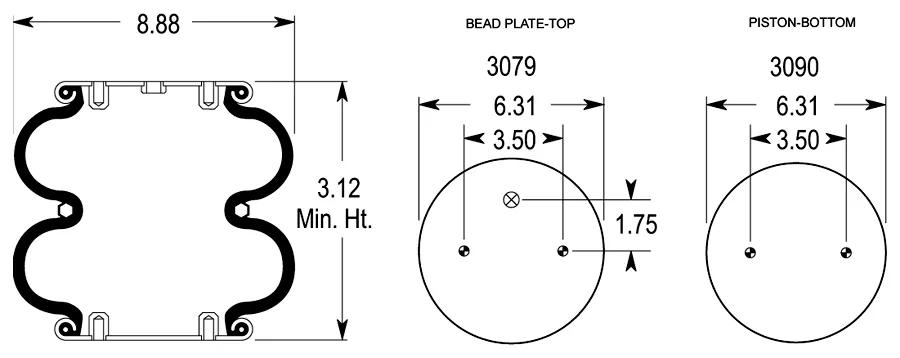

Specifications
| Entrée d'air | 1/4 po NPT |
| Type de ressort pneumatique | À double convolution |
| Application | Ridewell 1003586910C, Watson & Chalin AS-0001 |
| Soufflet | 20 |
| Diamètre de la plaque inférieure | 6-5/16 po |
| Qté de goujon de trou de plaque inférieure | 2 |
| Configuration du montant inférieur | 3/8 po-16 UNC |
| Longueur comprimée | 3-1/8 po |
| Diamètre | 8-7/8 po |
| Capacité de chargement à 20 psig | 524 lb-pi |
| Capacité de chargement à 60 psig | 1572 lb-pi |
| Loading Capacity at 90 psig | 2358 lb-pi |
| Piston (Bottom) Mounting Bolt Dimensions Center to Center | 3-1/2 po |
| Temperature | 57 °C à -54 °C (134.6 °F à -65.2 °F) |
| Top Bead Plate Hardware Key | 2 x trou fileté 3/8-16 po, écrou aveugle sur plaques de talon 1/2-13 po pistons |
| Top Plate Diameter | 6-5/16 po |
| Weight | 7,4 lb (3,36 kg) |
| Width | 8.88 po |
| Capacity | 524 lb-pi à 20 psig; 1572 lb-pi à 60 psig; 2358 lb-pi à 90 psig |
| Product Category | Ressort pneumatique |
Interchanges & Equivalent parts:
| 1371 |
| 2B09-200 |
| 2B09200 |
| 2B9-200 |
| 2B9200 |
| 354-6910 |
| 6910 |
| AS-4320 |
| FIR6910 |
| 4320 |
| 45843-3 |
| AS0001 |
| AS6910 |
| AX-8127-19 |
| B8768 |
| FD 200-19 320 |
| FIPW013586910 |
| FIRW01-358-6910 |
| FSIW013586910 |
| G2296910500 |
| GTK-358-6910 |
| TAS6910 |
| TR6910 |
| TWDW013586910 |
| W013586910 |
| W013586910F1R |
| AS69100 |
| FS6910 |
| 2726 |
| 3918343 |
| 45843-003 |
| 45843003 |
| 458433 |
| 554783C1 |
| 57006910 |
| 64267 |
| AS-0001 |
| AS2186910 |
| B458433 |
| S458433 |
| S8768 |
| SC2011 |
| W01-358-6910 |
| 1003586910C |
