Firestone Air Spring 1T Reversible Sleeve, 5.9 in Compressed Length, 23.79 in Extended Length, for Bead Plate Bracket (Single Hole) 70-3582-6063

#FIRW01-358-1191

Product Overview


Although air springs are produced in single, double, and triple convoluted and reversible sleeve styles, only those manufactured by Firestone Industrial Products Company bear the trademark “Airide™.” Airide springs were pioneered and perfected by Firestone, and only Firestone offers a complete line of Airide springs, with replacement springs available for virtually every vehicular air suspension system. Today, Airide springs are used by practically all manufacturers who offer air suspension on their vehicles. While it may appear simple, an air spring is actually a highly sophisticated and complex product. Even slight changes in design, methods of construction, or materials used can make vast and significant differences in performance. It makes good sense to specify Airide springs by Firestone. That trade name on an air spring guarantees you the benefit of the very latest technical developments and improvements. It is your assurance of a product not only engineered and perfected to perform, but which also has a long history of superior performance in actual use.Air Spring, 1T Reversible Sleeve Air Spring, 5.9 in Compressed Length, 23.79 in Extended Length, 10 in Width, For Bead Plate Bracket (Single Hole) 70-3582-6063

See More
See Less

Features & Benefits


  • Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
  • Today, Airide Springs are Used by Practically All Manufacturers Who Offer Air Ride Suspensions on Their Vehicles.
  • Airide Springs Were Pioneered & Perfected by Firestone, and Only Firestone Offers a Complete Line of Airide Springs.

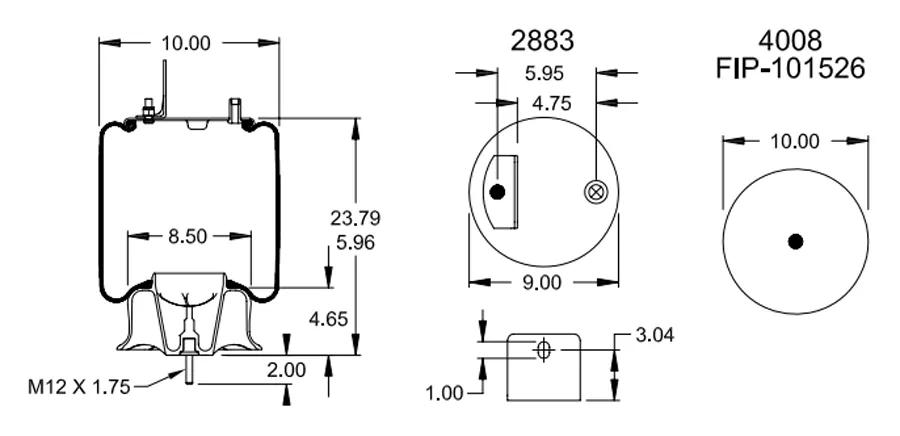

Specifications


Air Inlet 1/4 in NPT
Air Spring Type 1T Reversible Sleeve
Application Bead Plate Bracket (Single Hole), 70-3582-6063, Navistar 3541731C1, Goodyear 1R12-432
Bead Plate (Top) & Deflated Bellows O.D. 9 in @ 10 in
Bottom Plate Diameter 10 in
Bottom Stud Configuration 1/2 in-13 UNC
Compressed Length 5.9 in
Diameter 10 in
Extended Length 23.79 in
Firestone Bellows Number 1T15XR-9
Piston Height 4-21/32 in
Piston Number 4008
Piston Width (in.) 10 in
Top Bead Plate Hardware Key Bold or Stud 1/2-13 in
Top Plate Diameter 9 in
Top Plate Number 2883
Weight 12.2 lb (5.53 kg)
Width 10 in
Product Category Air Spring

Interchanges & Equivalent parts:


ZAGA1191
3541731C1
FI W01 358 1191
W01-358-9875
1R12432
W015001213
1R12-1077
910B-195P889
AS1191
REA1R12-432
REAW013581191
GY1R12432
W013581191
2514460C1
350243C94
9 10S-18 P 1067
W013589875
W01-358-1191
352-1191
1R12-432
9 10B-19.5 P 889
