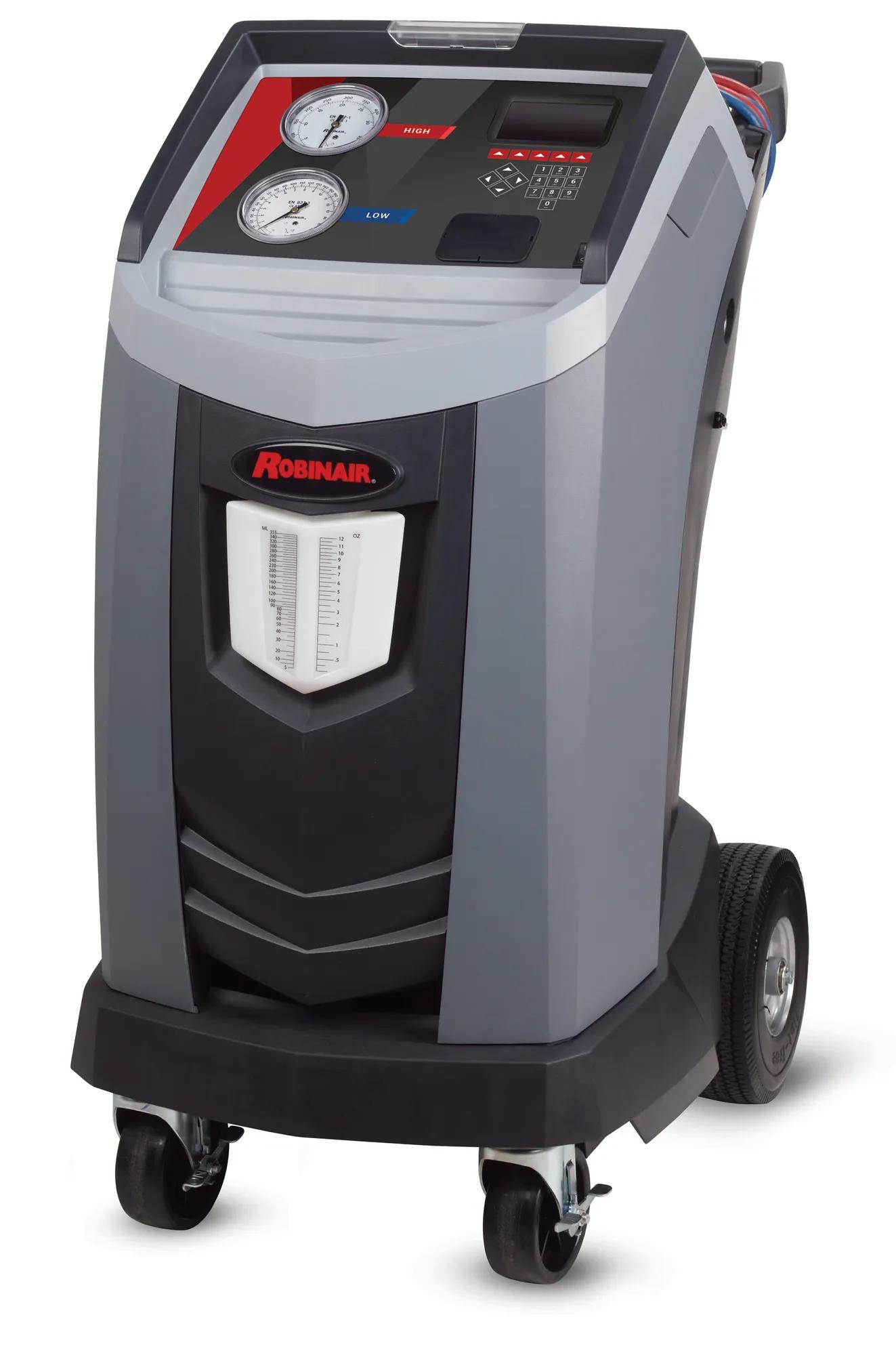

Robinair Refrigerant Recovery/Recycling and Recharging Machine with 5 x 9 cm Graphical Display, 150 lb Spin-On Filter Drier, 9 ft Hose, 125 VAC
Product Overview
Robinair introduces the 34788NI, a next-generation refrigerant recovery, recycling, evacuation, leak-testing, and recharging machine for R-134a systems. It features an industry-leading 98.5% recovery efficiency for standard and hybrid vehicles with fully automatic operation. The unit includes a large 5 x 9 cm multilingual graphical display, automatic leak testing, refrigerant refill, and oil drain/inject functions that return A/C lubricant to the system. Additional options include a printer, USB data sharing, refrigerant identifier, and wireless module for Wi-Fi or Bluetooth® communication. An optional refrigerant charge and oil capacities database is available for North American market vehicles.Refrigerant Recovery/Recycling and Recharging Machine, Display Type: Multilingual, Charge Performance: +/- 0.5 oz at 70 to 75° F, 5 x 9 cm Graphical Display Display, 150 lb Spin-On Type Filter Drier, 60 Hz, 9 ft Hose, Operating Range: 32 to 120 °F, Vacuum Pump: 1.5 CFM Dual Stage, 29.9 InHg, 125 VAC, 48.5 in L, 24 in W, 36 in H
Features & Benefits
- Fully automatic operation: programs to recover, vacuum, leak test, and charge without manual valve operation
- Automatic oil drain with graduated container and display reminder
- Automatic oil injection back into vehicle A/C systems
- Optional refrigerant and oil capacity database for North American vehicles
- Save and print before and after service data by vehicle for customer records
- Visual and audible alarms to indicate service completion or issues
- Vacuum leak test monitors evacuation level and detects possible leaks
- Automatic air purge eliminates system-damaging air without gauge monitoring
- Automatic refrigerant refill maintains user-selected refrigerant level and signals tank replacement
- Programmable vacuum feature up to 99 minutes with remaining time display
- Refrigerant management system tracks refrigerant use and filter life with prompts
- Refrigerant charging modes selectable from high side, low side, or both sides
Specifications
| Display Type | Multilingue |
| Charge Performance | +/- 0.5 oz at 70 to 75° F |
| Display | Écran graphique de 5 x 9 cm |
| Filter Drier Capacity | 150 lb Spin-On Type |
| Frequency | 60 Hz |
| Height | 36 po |
| Hose Size | 9 pi |
| Length | 48.5 po |
| Operating Range | 32 to 120 °F |
| Vacuum Pump | 1.5 CFM Dual Stage, 29.9 InHg |
| Voltage Rating | 125 V CA |
| Width | 24 po |
| Product Category | Appareil de récupération/recyclage et de recharge de réfrigérant |
| Weight | 230 lb |
