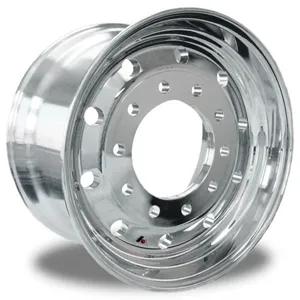

Accuride Aluminum 22.5 in. x 12.25 in. 15 Deg Duplex Wheel, Standard Polish, 12,300 lb Max Load
#ACC29683SP
Product Overview
Wheel, 15 deg Duplex, Hub Piloted, Aluminum, Standard Polish, 285.75 in Bolt Circle Dia, 220 in Center Bore, 131 psi Max Inflation, 12300 lb Maximum Load, 10 Bolt Holes, Recommended Tire Valve Number: DV543E, 22-1/2 x 12-1/4 in Wheel
Specifications
| Bolt Circle Diameter | 11-1/4 in |
| Center Bore (in) | 8-45/64 in (22.11 cm) |
| Finish | Standard Polish |
| Material | Aluminum |
| Max Inflation (psi) | 125 psi (8.62 bar) |
| Number of Bolt Holes | 10 |
| Offset | 2-7/8 in |
| Type | 15 deg Duplex |
| Weight | 62 lbs (28.12 kg) |
| Wheel Size | 22-1/2 in x 12-1/4 in |
| Center Bore | 8-45/64 in |
| Maximum Load Capacity | 12300 lb (5578.23 kg) |
| Max Inflation | 125 psi (8.62 bar) |
| Mounting Type | Hub-Piloted Wheels |
| Recommended Tire Valve Number | DV543E |
| Rim Diameter | 22-1/2 in |
| Rim Width | 12-1/4 in |
| Product Category | Wheel |
Interchanges & Equivalent parts:
| 29683ANP |
| 823627 |
| 823650 |
| ACC29683ANP |
| 20565837 |
| ACC 29683SP |
