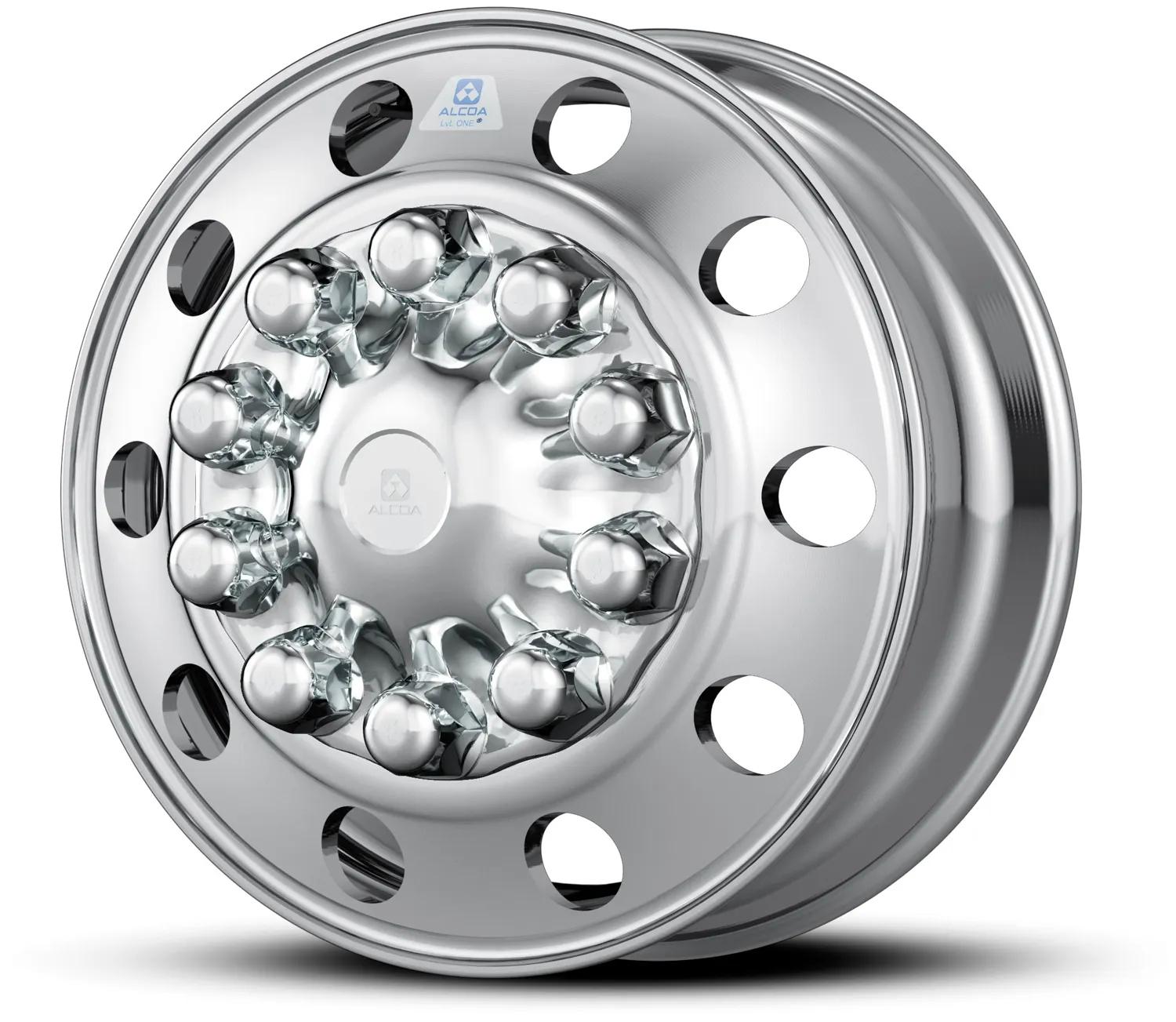

Roue en aluminium de 22,5 po x 8,25 po LVL FB HP
#ALC883677
Sommaire du produit
Une réduction de trois livres par rapport au modèle ALC883677 offert sans coût supplémentaire!
Caractéristiques et avantages
- Valve Stem TR554D
- Bolt Hole Diameter 1.053
- Alcoa aluminum disc wheel mounting dimensions are consistent with SAE Recommended Practice J694 June 2007.
- Increase payload or improve fuel efficiency for a light weight heavy weight
- Alcoa’s advanced LvL ONE process technology results in a brilliant finish on both sides for the Clean Buff Finish on both sides as applicable (7) finish option.
- Each 22.5” wheel offers a 7,400 lb. load rating, but weighs just under 45 lbs.
- One piece forged aluminum strength that’s 5x stronger than steel.
- True cool running extends tire and brake life.
- Same five year limited warranty you’ve come to expect from Alcoa.
Spécifications
| Cercle de boulons | 11-1/4 in (28.58 cm) |
| Alésage central (po) | 8-43/64 in (22.03 cm) |
| Finition | Clean Buff |
| Encart (po) | 5,79 po |
| Matériel | Aluminium |
| Gonflement maximal (psi) | 130 psi |
| Montage | Roues pilotées par le moyeu |
| Nombre de trous de boulon | 10 |
| Décalé | 6-19/32 po (16,75 cm) |
| Valve de pneu recommandée n° | TR554D |
| Diamètre de la jante (po) | 22-1/2 po (57,15 cm) |
| Largeur de la jante (po) | 8-1/4 po (20,96 cm) |
| Poids | 45 lbs (20,41 kg) |
| Taille de roue | 22-1/2 po x 8-1/4 po (57,15 cm x 20,96 cm) |
Interchanges et pièces équivalentes:
| 41644XP |
| 883640 |
| ALC883640 |
| 42644SP |
| 42644XP |
| 883671 |
| 883672 |
| 883673 |
| A228205BBM |
| A228205MF |
| AH22501-10M |
| AH22501-10P |
| AL228205BBM |
| AL228205MF |
| 41644SP |
