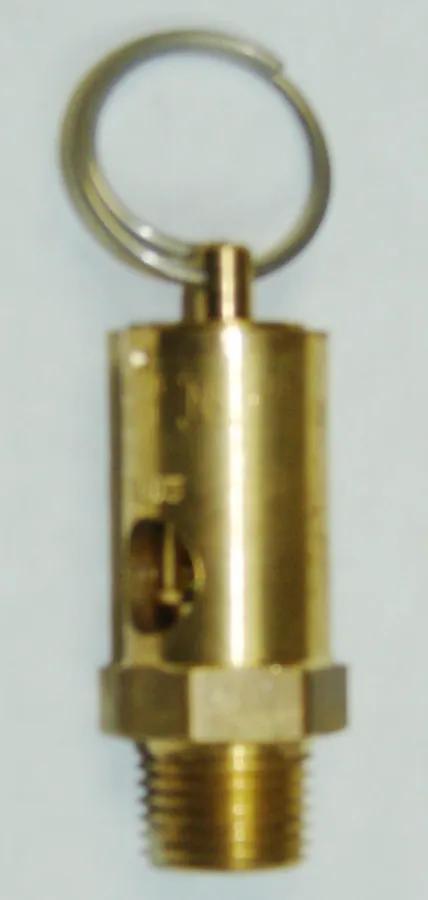

SAFETY VLVE 1/4 M NPT-75 PSI
#AIX11.3210
Product Overview
Manufactured under regulations of the “National Board of Boiler and Pressure Vessel Inspectors in in accordance with section VII of the ASME Code covering valves for unfired pressure vessels.
Features & Benefits
- High quality, corrosion resistant, safety valves
- Optimum high-flow discharge rates
Specifications
| Air Flow | 66 SCFM |
| Application | Provides safe pressure control for compressed air tanks |
| Body | Brass |
| Maximum Installation Torque (lb/in.) | 100 |
| Pressure Settings (+/- 3%) (psi) | 75 |
| Seal | Silicone |
| Thread (M) NPT (in.) | 1/4 |
| Working Temperature | -40°C to 177°C (-40°F to 350°F) |
Interchanges & Equivalent parts:
| 09.304 |
| 09.304.10 |
| 11.3210 |
