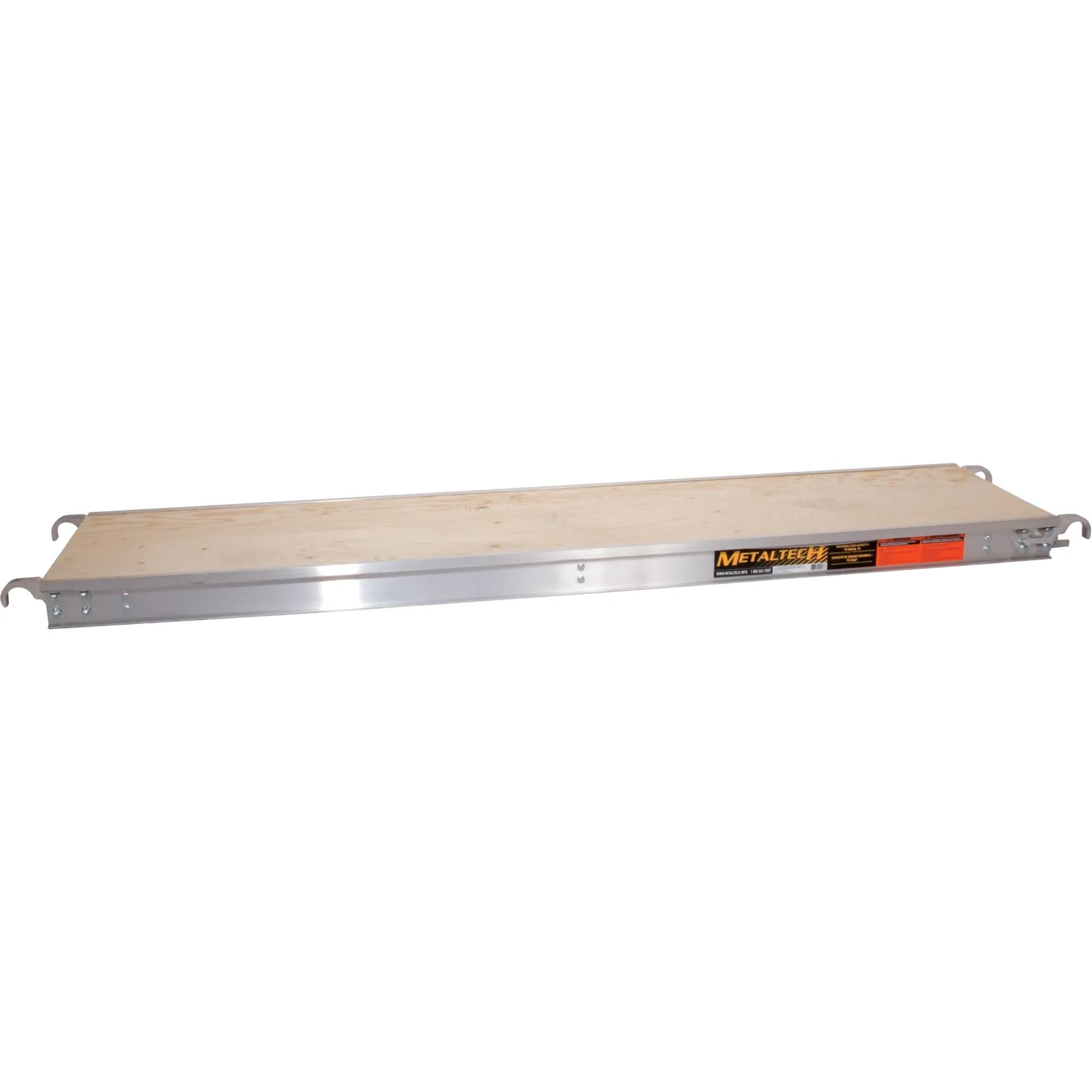

SCN Scaffolding Work Platform, Wood Plywood Deck, 10 ft L x 24 in W, 50 lbs/sq ft Duty Rating

#SCNMF757

Product Overview


Work Platforms with plywood decks measuring 10 feet in length and 24 in in width each. The platform features a 5/8 in thick plywood deck with hooks offset to allow for next plank hook, ensuring no gap when set in continuous scaffolding. Designed for lightweight construction equipment, the platform includes an aluminum edge to protect the plywood from damage. Side rails are made from "I" beam extrusions for added strength, and 3-piece rung joints produce a tempered joint, making the work platform twist-proof. It is fitted with easy-to-use windlocks and duty ratings of 75 lbs/sq. ft. for 19 in widths and 50 lbs/sq. ft. for 24 in widths

See More
See Less

Features & Benefits


  • Plywood-decked work platform
  • For lightweight construction equipment
  • Aluminum edge protects plywood from damage
  • Side rails are made from "I" beam extrusions for added strength
  • 3-piece rung joints produce a tempered joint, making the work platform twist-proof
  • Fitted with easy-to-use windlocks
  • 19 in widths duty-rated: 75 lbs/sq. ft., 24 in widths duty-rated: 50 lbs/sq.ft

Specifications


Application Équipement de construction léger
Matériau de la carrosserie Acier
Capacity 2000 lbs
Handle Material Chrome
Length 10 ft
Material Wood
Product Category Scaffolding Decks
Quantity 1
Weight 56 lbs
Wheel Diameter 8 in
Wheel Material Rubber
Width 24 po
Manufacturer Part Number M-MPP1024
