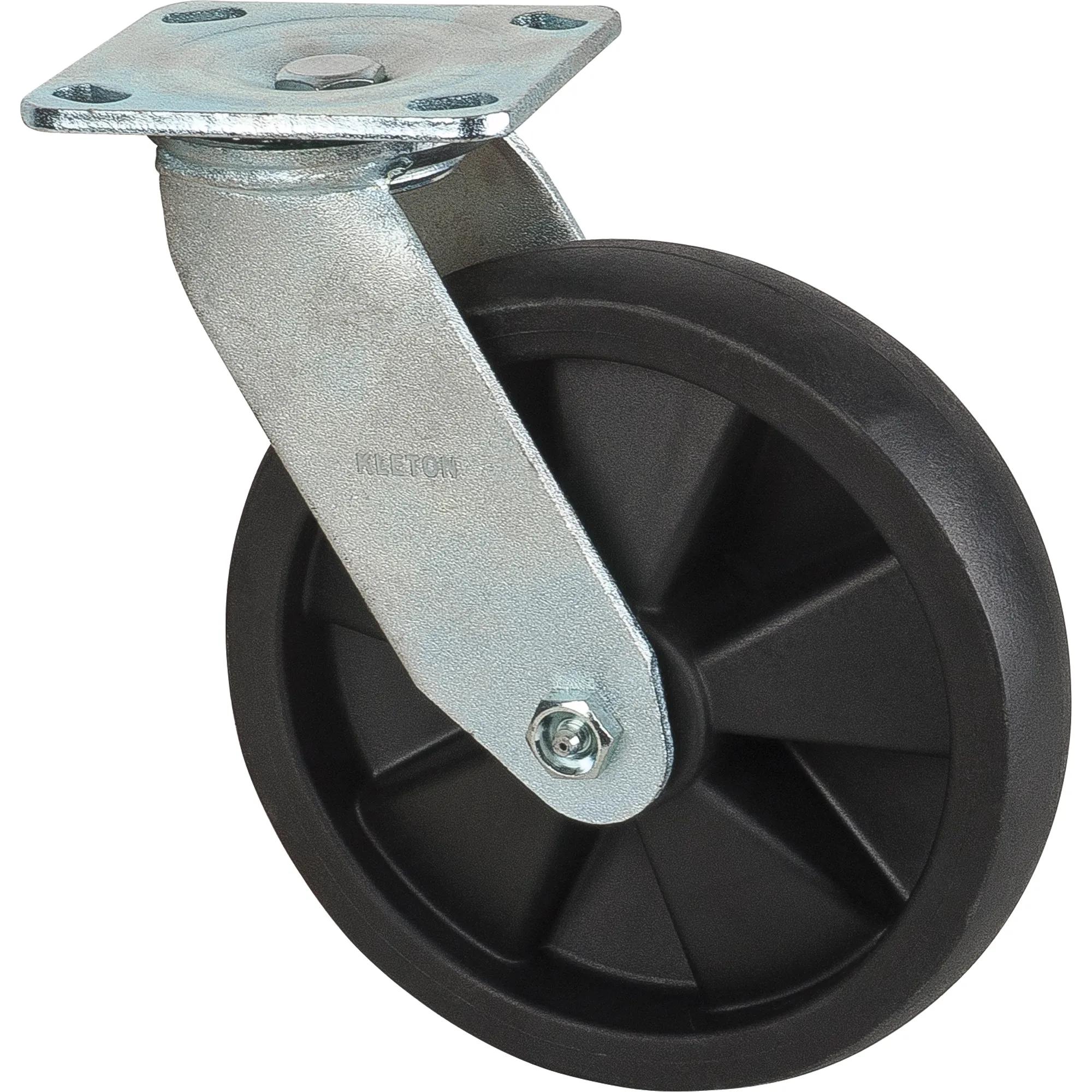

SCN 230°C Swivel Caster, 8 in Nylon Wheel, 850 lbs Load, Steel, Zinc Chrome-Plated, 4 in x 4.5 in Plate
#SCNML864
Product Overview
This Hi-Temp caster features a swivel design with an 8-inch nylon wheel capable of supporting up to 850 lbs It offers smooth rolling and low noise operation, is non-marking, and has a zinc chrome-plated finish that provides corrosion resistance. The caster exhibits superior resistance to most oils, chemicals, and grease, and includes a double ball raceway with ball bearing construction. The plate size is 4 in x 4 1/2 in with bolt hole centers of 3 in x 3 1/3 in and bolt hole size of 7/16 in
Features & Benefits
- Smooth rolling, low noise operation
- Non-marking
- Zinc chrome-plated finish provides corrosion resistance
- Superior resistance to most oils, chemicals and grease
- Double ball raceway
- Ball bearing
Specifications
| Bolt Circle Diameter | 3 in x 3 1/3 in |
| Dimensions | 4 in x 4-1/2 in |
| Height | 9 1/2 in |
| Material | Steel |
| Max Load | 850 lbs |
| Max Load (lbs) | 850 lbs |
| Mounting Hole Diameter | 7/16 in |
| Quantity | 1 |
| Rim Width (in) | 1-3/4 in |
| Type | Swivel |
| Wheel Diameter | 8 in |
| Manufacturer Part Number | ML864 |
| Product Category | Plate Casters |
