Scotseal Plus XL
#SKF38776
Product Overview

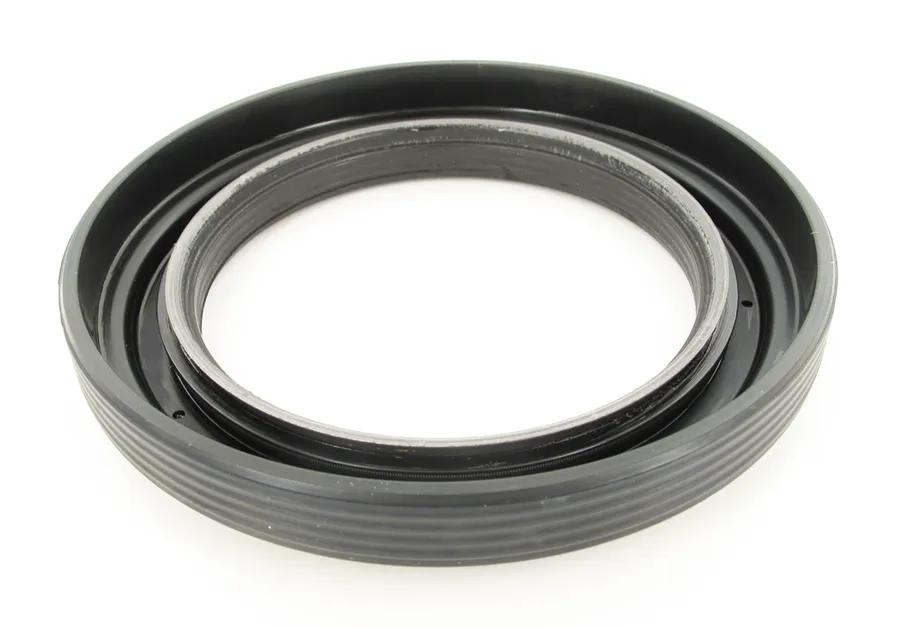

The ScotSeal PlusXL is a Rubber Unitized, One Piece Design.
Features & Benefits
Features & Benefits
SKF38776 - Features Documents - A
SKF38776 - Features Documents - B
SKF38776 - Features Documents - C
SKF38776 - Features Documents - D
SKF38776 - Features Documents - E
SKF38776 - Features Documents - F
SKF38776 - Features Documents - G
SKF38776 - Features Documents - H
SKF38776 - Features Documents - I
- The ScotSeal Plus XL Consists of Four Sealing Lips: A Spring Loaded Primary Sealing Lip With Patented Waveseal Design That is Factory Pre-Lubed,
- a Radial and Axial Dirt Lip , Plus an Outer Bumper Lip That Acts as a Priliminary Dirt Excluder.
- ScotSeal PlusXL Requires No Special Installation Tools and Maintains a Rubber to Metal Contact Between the Seal O.D. and the Hub Bore Surface,
- as Well as a Rubber to Metal Contact Between the Packing I.D. and Spindle or Axle.
- The New High Temperature, Synthetic Lubricant Freindly Material of the ScotSeal PlusXL, Hydrogenated Nitrile Butadiene Rubber (HNBR), is an Excellent Choice for Frequent Braking Applications.
- HNBR Elastomeric Material Provides Heat Resistance up to 300 Degrees Farenheit and Broad Compatibility With Today's Synthetic Lubrication Fluids.
- The Unsurpassed Exclusion Properties Allow the ScotSeal PlusXL to Perform in Very Harsh Conditions.
- Worn Hubs and Spindles Are Not a Problem for the ScotSeal PlusXL.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Contents | (1) Oil Bath Seal |
| Inside Diameter | 3-7/8 in (9.86 cm) |
| Type | PlusXL |
| VMRS Code | 18001004 |
| Width | 57/64 in (2.26 cm) |
Interchanges & Equivalent parts:
| 53706710 |
| 3252102 |
| 2EL729 |
| 10020083 |
| 330783406 |
| 370023 |
| 370023A |
| 1116159 |
| 4283347 |
| 380023 |
| 380023A |
| 3090912 |
| 145838776 |
| 38776 |
| 38779 |
| 070HH172 |
| 3909012 |
| 3909056 |
| 3910012 |
| 770400 |
| 3929099 |
| 3930112 |
| 3930212 |
| CR38776 |
| CR38779 |
| 3979712 |
| 3979715 |
| 965838776 |
| 965838779 |
| 849 |
| 849T |
| 8C4Z1S177A |
| 85103824 |
| BRS163 |
| CHR38776 |
| CHR38779 |
| 48091 |
| N38779 |
| UZ0849E |
| XCR38776 |
| XCR38779 |
| ZAR38776 |
| ZAR38779 |
| HS38776 |
| HS38779 |
| E6HT1175AA |
| E6HZ1175AA |
| E6HZ1175E |
| 2707W1707RING |
| 15703555 |
| 2102W1091GMC |
| 2102W1501 |
| 2102W1501FOR1 |
| 1654330C1 |
| 38780 |
| CRI38776 |
| HD803 |
| 38776-CR |
| 370023AFDM |
| 380023AFDM |
| BRS-163 |
| CHR 38776 |
| N-38779 |
| XCR 38776 |
| XCR 38779 |
| 042HH100 |
| 2102 |
| MER0212 |
| 393112 |
| SH3409 |
| 38745 |
| 38747 |
| 370165A |
| 11S38751 |
| 370024A |
| 38750 |
| 38777 |
| RW20-25 |
| 370023BG3 |
| NS370023A |
| 11S38750T |
| 37 |
| SH3408 |
| S38776 |
| BRS64 |
| BRS64A |
| 4133408100 |
| 27SH3408 |
| 59038776 |
