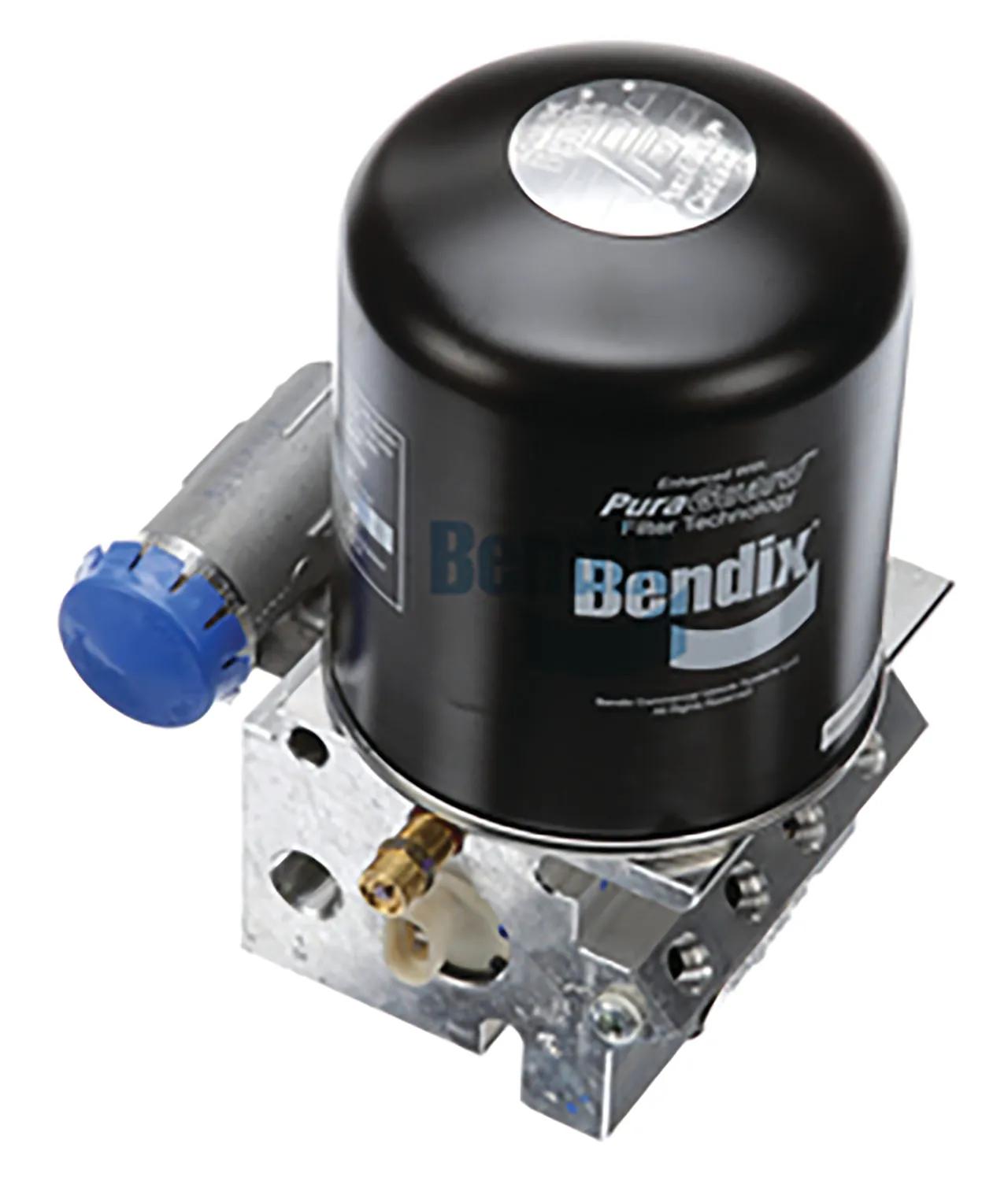

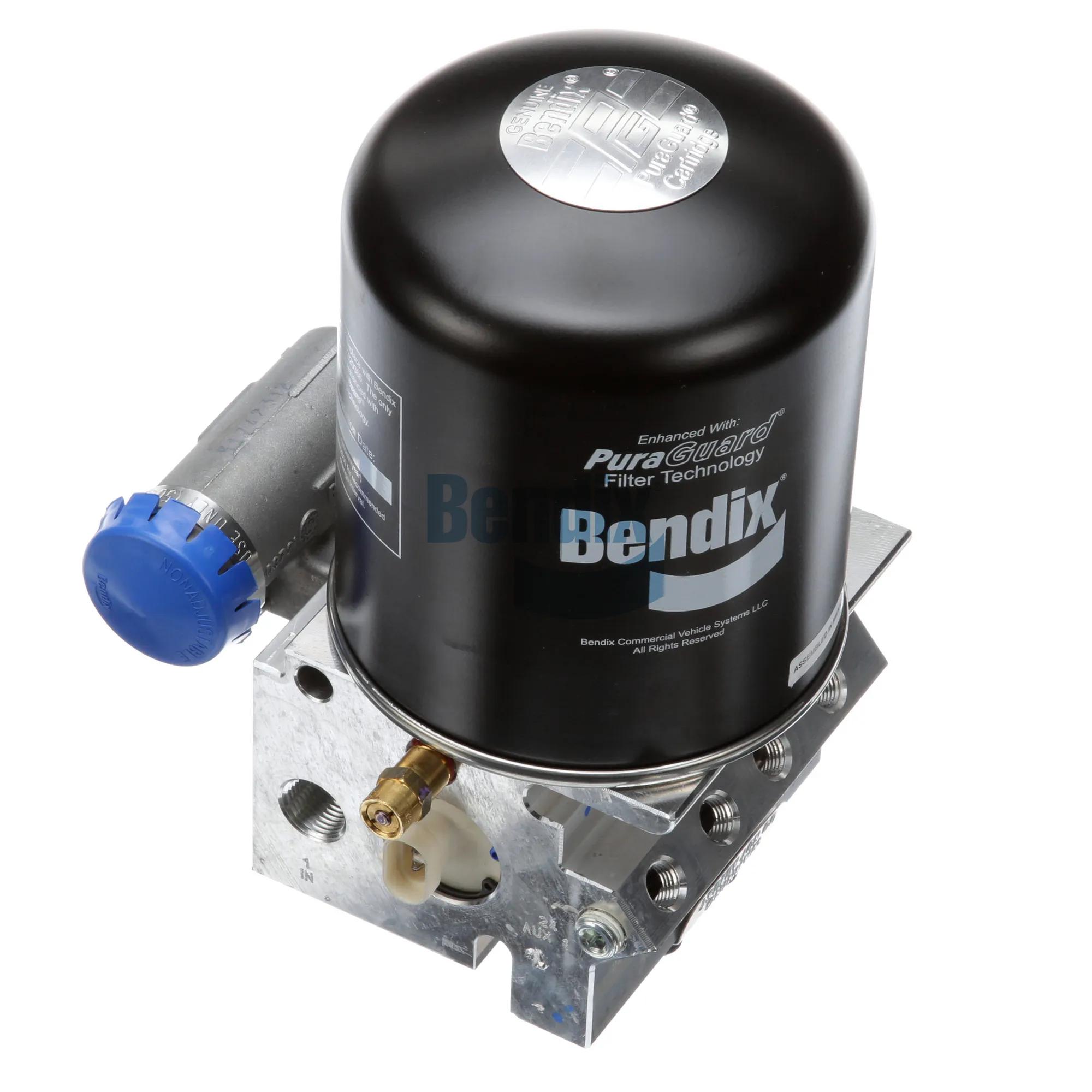

Bendix AD-IS Air Dryer, 1/2-14 NPT Supply, 2-Way, 12 V, New
#BENK049086
Product Overview
The Bendix AD-IS air brake dryer ensures only clean, dry air reaches the components of your air brake system. This integral solution air dryer eliminates the need for daily manual draining of reservoirs, maintaining optimal air brake system performance.Air Dryer, 2-Way, M39 x 1.5-6H RH Cartridge, -40 deg C Operating Temperature, 1/2-14 NPT Supply Port, 153 psi Valve Opening Pressure, 12 V, 90 W Wattage
Features & Benefits
- Designed to collect and remove moisture as well as solid, liquid, and vapor contaminants from the air before entering the air brake system
- An integrated air supply system that provides heavy duty vehicles with an integrated air dryer, purge reservoir, governor, and various charging valve components in a module
- Consists of a “spin on” desiccant cartridge that is secured to a base assembly, which contains a delivery check valve assembly, safety valve, heater and thermostat assembly, threaded air connections, and the purge valve assembly
Specifications
| Model | AD-IS |
| New or Remanufactured | New |
Interchanges & Equivalent parts:
| 745-K049086 |
| BW K049086 |
| K049086 |
