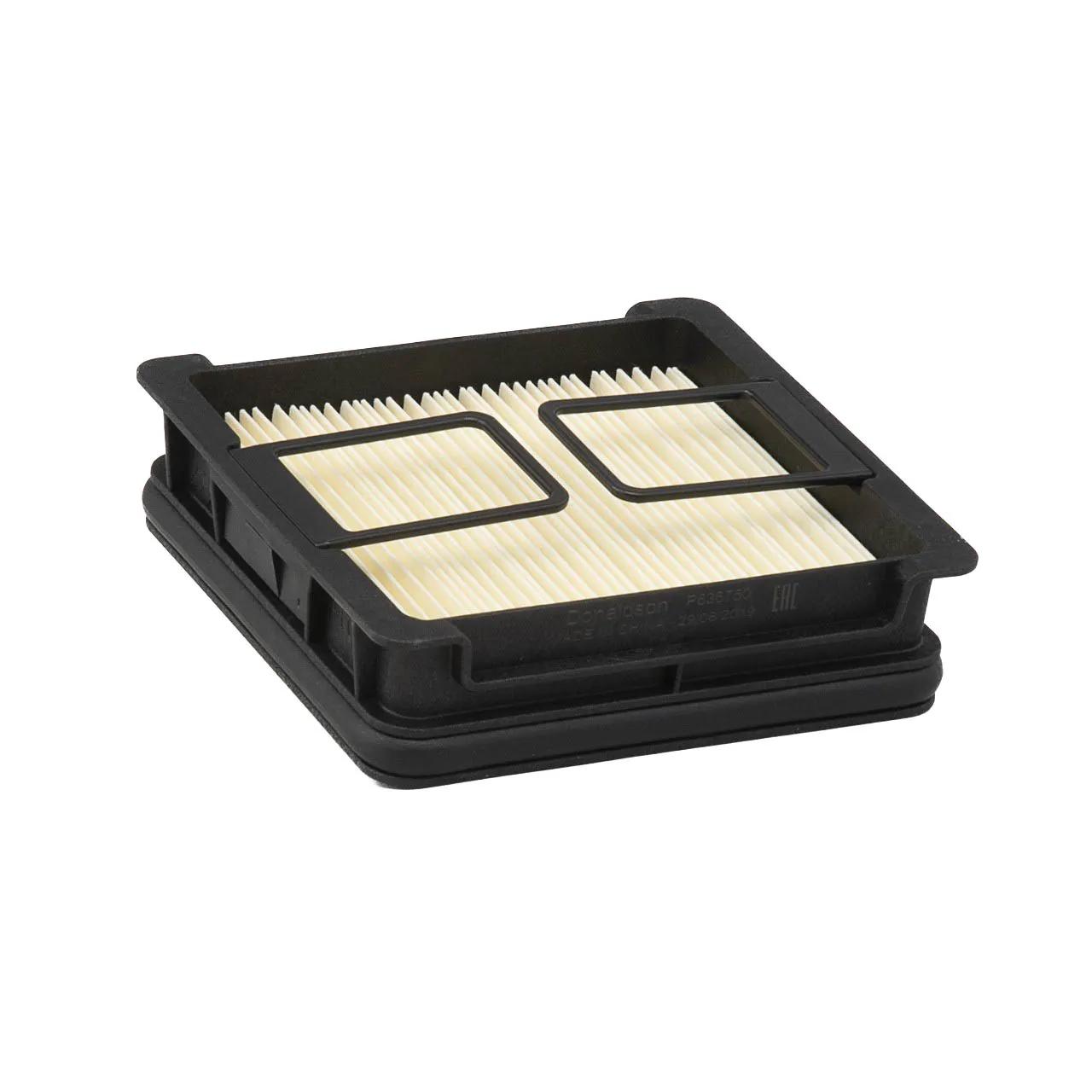

Safety - Radialseal
#DONP636750
Product Overview
Why Choose Donaldson Safety Filters?
Features & Benefits
- Safety filters have two functions: to act as a backup to the primary filter and to protect the engine during primary filter servicing
- Serve as a backup filter in case of primary filter damage or improper installation
- Prevent contaminants from entering the clean side of the air intake system during primary filter servicing
- Designed to plug rapidly if contamination finds its way past the primary filter, alerting operators about an issue
- Recommend that safety filters are replaced with every third primary filter change unless there has been a failure of the primary filter
Specifications
| Inlet Diameter | 63/64 in (2.49 cm) |
| Primary Application | Schroeder 8Z3 |
| Restriction HR (Metric) | 203 MM H2O |
| Restriction LR (Metric) | 152 MM H2O |
| Restriction MR (Metric) | 203 MM H2O |
| Length Range | 5 to 5.99 in |
| Style | Panel |
| Type | Safety |
Specifications
| Height | 1-29/64 in (3.68 cm) |
| Length | 5-3/4 in (14.61 cm) |
| Width | 5,44 in (138,2 mm) |
Interchanges & Equivalent parts:
| PA31014 |
| AF55321 |
| SA16914 |
| 501083 |
| WA11083 |
| 7221934 |
| 5310324 |
| SA11083 |
| HA40292 |
| 93782 |
