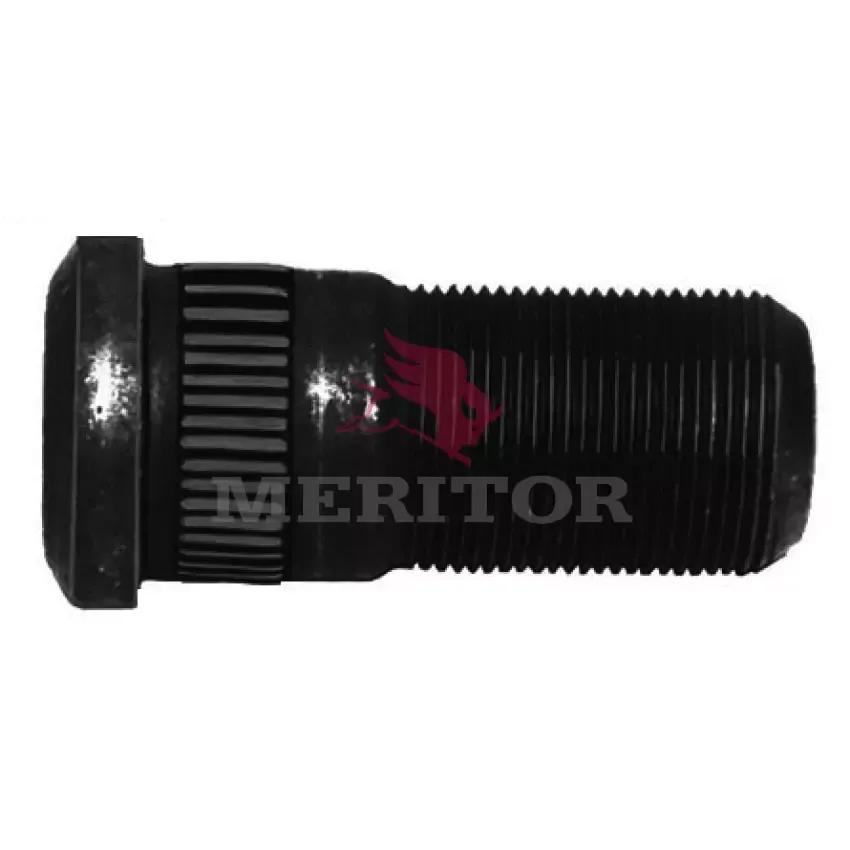

Serrated Stud, UHL: 3-1/4 in, Thread: 2-1/4 in x 1-1/8-16
#ROCR008996L
Specifications
| Body Diameter | 1-7/32 in (3.1 cm) |
| Body Length | 3/4 in (1.91 cm) |
| Hex | 1-1/2 in (3.81 cm) |
| Length | 3-1/4 in (8.26 cm) |
| Length from Under Head-OAL | 3-1/4 in (8.26 cm) |
| Right or Left Hand Threads | LH |
| Serration | Serrated |
| Serration Length | 9/16 in (1.44 cm) |
| Thread | 1-1/8-16 |
| Thread Length | 2-1/4 in (5.72 cm) |
| Type | Round |
| Application | Front Wheel Stud |
Interchanges & Equivalent parts:
| 13-1620L |
| 50-1090L |
| E-8996L |
| W365 |
| 13-1620-L |
| 1549014L |
| 20-X-781 |
| 8235-R008996L |
| 88292 |
| 9628 R008996 L |
| ATIR008996L |
| M-2473 |
| R008996L-RI |
| TDA R008996L |
| TDAR008996L |
| TP4113L |
| X-1992 |
