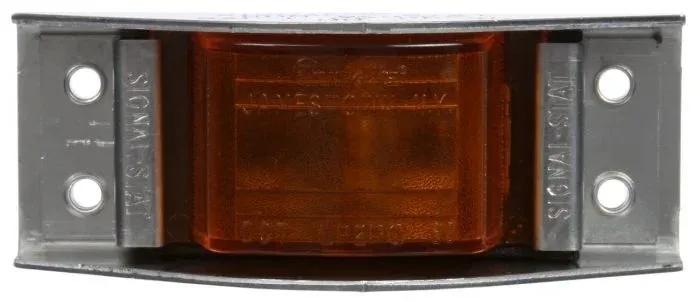

Signal-Stat, The Guardian, Incandescent, Yellow Rectangular, 1 Bulb, Marker Clearance Light, PC, Silver Aluminum 4 Screw Mount, Hardwired, Stripped End, 12V
#TRL1102A
Product Overview
Signal-Stat, The Guardian, Incandescent, Yellow Rectangular, 1 Bulb, Marker Clearance Light, PC, Silver Aluminum 4 Screw Mount, Hardwired, Stripped End, 12V
Features & Benefits
- Aluminum or gray painted steel housing
- Fully protected lens with high guard
- Pressure pad tightly seals lens
- Quick-click lens removal
Specifications
| Famille de conformité | CMVSS108 |
| Contient | Lampe |
| Major actuel | 0,35 amp |
| Profondeur | 1-3/4 po |
| Coquille de diamant (O/N) | Non |
| Convient au tirebouchon - Numéro(s) de pièce | Câblé |
| Hauteur | 1-7/8 po |
| Matériau du boîtier | Polycarbonate |
| Trousse (O/N) | No |
| Couleur de la lampe | Jaune |
| Longueur de la lampe | 4,87 po |
| Matériau de la lampe | Polycarbonate Lens, Housing, Gasket, Aluminum Mount |
| Ampérage SAE d'ampoule | P2 |
| Forme de lampe | Rectangular |
| Modèle d'ampoule | Support de déflecteur |
| Type de lampe | Sealed Incandescent |
| Tension nominale de la lampe | 12 V |
| Largeur de la lampe | 1,87 po |
| Longueur du faisceau de phare | 3 po |
| Nbre de fils de l'ampoule | 1 |
| Couleur des lentilles | Jaune |
| Lens Height | 1-19/64 po |
| Lens Material | Polycarbonate |
| Lens Shape | Rectangular |
| Lens Width | 2-1/16 po |
| Lighting Technology | Incandescent |
| Mount | Collier |
| Mounting Connector Diameter (in.) | 3/8 in (0.97 cm) |
| Mounting Method | Mount Through Id Bar |
| Mount/Trim Color | Silver |
| Mount/Trim Material | Aluminum |
| Mount Type | Montage à vis |
| Number of Diodes/Bulbs | 1 |
| Number Of Wires | 1 |
| Packaging | Sac en polyéthylène |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | Non |
| Series | Signal-Stat |
| VMRS Code | 034-004-036 |
| Volt | 12V |
| Weight | 0,26 lb |
| Width | 4-7/8 po |
| Wire Gauge | 18 |
Interchanges & Equivalent parts:
| 1102A |
| 45283 |
| 46283 |
| 84131102A |
| SIG1102A |
| TLD1102A |
| 1102AS1G |
| 8413-1102A |
| LIT1102A |
| TL 1102A |
| TL1102A |
| 124A |
| GRT46283 |
