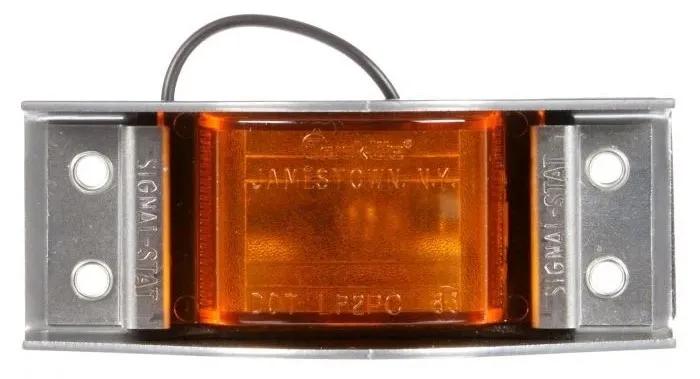

Signal-Stat, The Guardian, Incandescent, Yellow Rectangular, 1 Bulb, Marker Clearance Light, PC, Silver Steel 4 Screw, Hardwired, Stripped End, 12V
#TRL1101A
Product Overview
Signal-Stat, The Guardian, Incandescent, Yellow Rectangular, 1 Bulb, Marker Clearance Light, PC, Silver Steel 4 Screw, Hardwired, Stripped End, 12V
Features & Benefits
- Aluminum or gray painted steel housing
- Fully protected lens with high guard
- Pressure pad tightly seals lens
- Quick-click lens removal
Specifications
| Famille de conformité | CMVSS108 |
| Contient | Lamp |
| Major actuel | 0.35 amp |
| Profondeur | 1-3/4 in (4.45 cm) |
| Coquille de diamant (O/N) | No |
| Convient au tirebouchon - Numéro(s) de pièce | Câblé |
| Hauteur | 1-7/8 in (4.78 cm) |
| Matériau du boîtier | Polycarbonate |
| Trousse (O/N) | No |
| Couleur de la lampe | Jaune |
| Longueur de la lampe | 4,87 po |
| Matériau de la lampe | Polycarbonate Lens, Housing, Gasket, Steel Mount |
| Ampérage SAE d'ampoule | P2 |
| Forme de lampe | Rectangular |
| Modèle d'ampoule | Support de déflecteur |
| Type de lampe | Sealed Incandescent |
| Tension nominale de la lampe | 12 volt |
| Largeur de la lampe | 1,87 po |
| Longueur du faisceau de phare | 3 po |
| Nbre de fils de l'ampoule | 1 |
| Couleur des lentilles | Yellow |
| Lentille - Hauteur | 1-19/64 in (3.3 cm) |
| Matériau de la lentille | Polycarbonate |
| Forme de lentille | Rectangular |
| Lens Width | 2-1/16 in (5.23 cm) |
| Lighting Technology | Incandescent |
| Mounting Connector Diameter (in.) | 3/8 in (0.97 cm) |
| Mounting Method | Mount Through Id Bar |
| Mount/Trim Color | Silver |
| Mount/Trim Material | Steel |
| Mount Type | 4 Screw |
| Number of Diodes/Bulbs | 1 |
| Number Of Wires | 1 |
| Packaging | Polybag |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| VMRS Code | 034-004-036 |
| Volt | 12V |
| Weight | 0.64 lbs (0.29 kg) |
| Width | 4-7/8 po (12,4 cm) |
| Wire Gauge | 18 |
Interchanges & Equivalent parts:
| 1101A |
| 45173 |
| 84131101A |
| MC82AB |
| SIG1101A |
| TL1101A |
| TLD1101A |
| 1101A-3 |
| 1101A-TL |
| 858117 |
| LIT1101A |
| LT566Y |
| MC-82AB |
| SIG 1101A |
| TL 1101A |
| 45173GR0 |
| PT2605A |
| 111240 |
