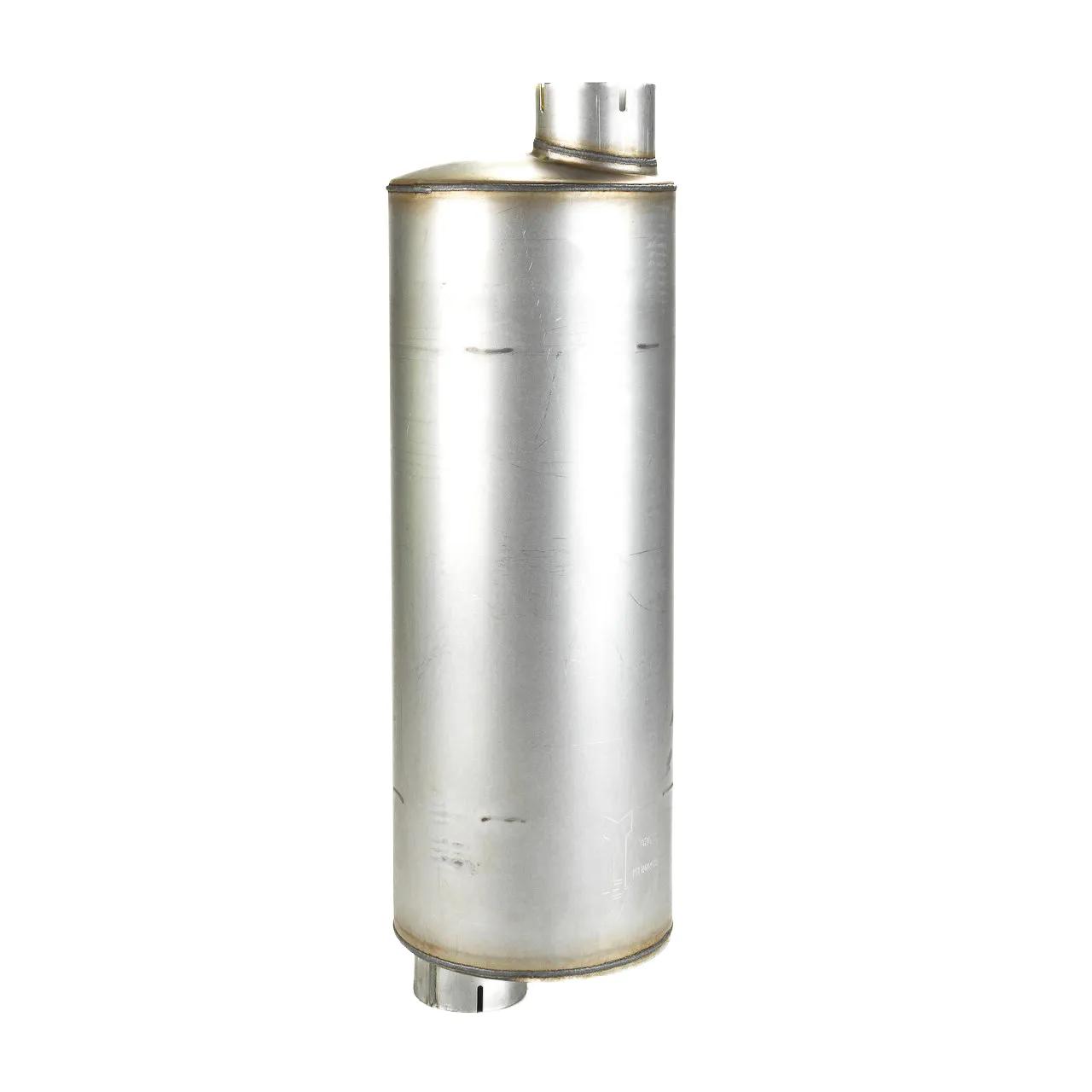

Muffler, OD: 10 in, Le: 30 in

#DONM100048

Product Overview

Why Choose Donaldson?

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	15 dBA
Attenuation High Range	20 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	10 in (25.4 cm)
Body Length	27-1/8 in (68.9 cm)
Color	Aluminized
Height	10 in (25.4 cm)
Inlet Clock Position	6:00
Inlet Diameter	4 in (10.16 cm)
Inlet Quantity	1
Inlet Type	Pipe Connection
Length	30 in (76.2 cm)
Material	Steel
Outlet Clock Position	12:00
Outlet Diameter	4 in (10.16 cm)
Outlet Quantity	1
Outlet Type	Pipe Connection
Overall Length	33-1/2 in (85.09 cm)
Rated Flow High Range	1702.17 cfm (48.2 m³/min)
Rated Flow Low Range	981.75 cfm (27.8 m³/min)
Rated Flow Mid Range	1702.17 cfm (48.2 m³/min)[delete]
Reversible	No
Shape	Round
Length Range	27 to 28 in
Style	Style 2
Width	10 in (2.54 cm)
