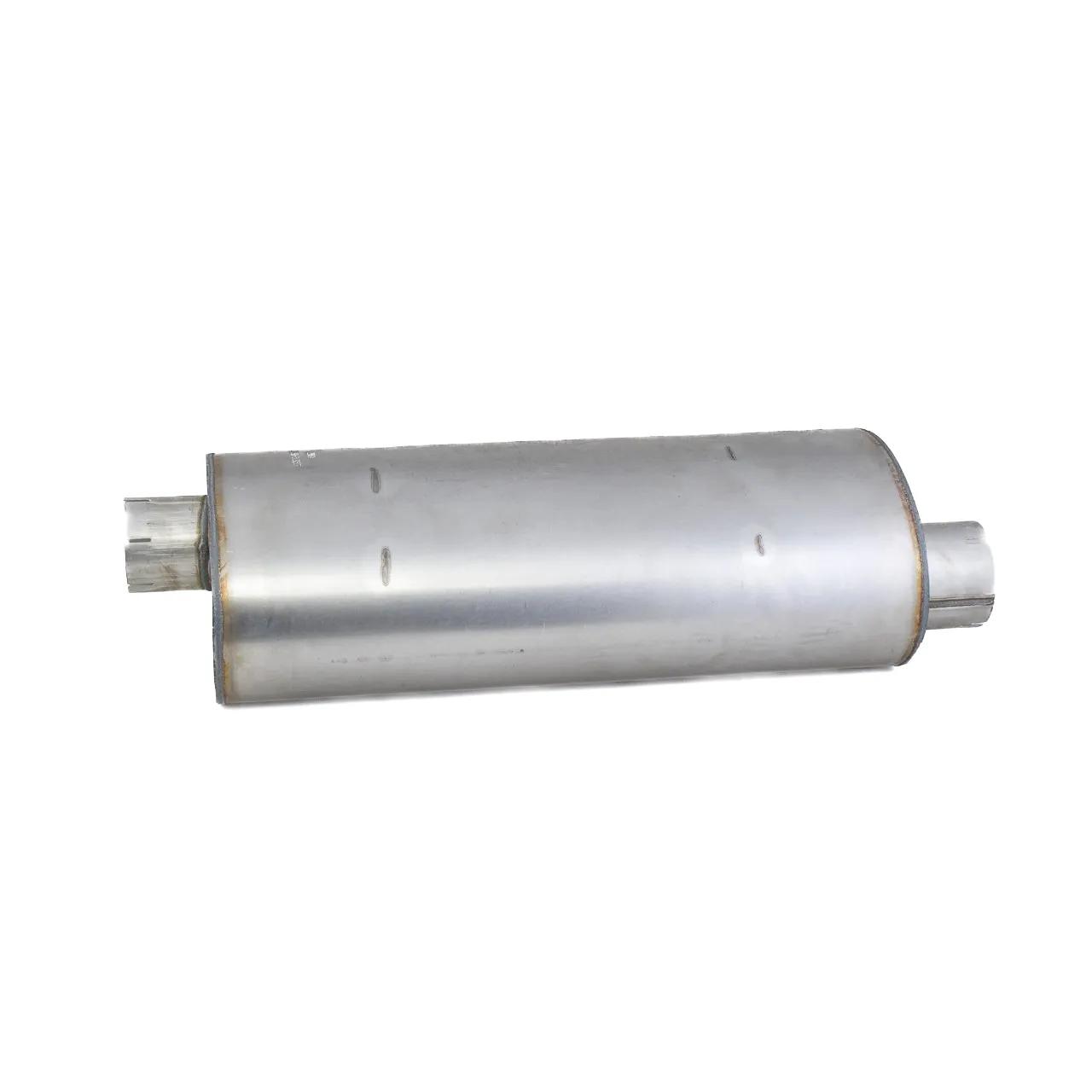

Muffler, OD: 8-1/4 in, Le: 26 in
#DONM090520
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Attenuation Low Range | 13 dBA |
| Attenuation High Range | 18 dBA |
| Back Pressure High-Range (Metric) | 76 mm HG |
| Back Pressure High Range | 2,99 po HG |
| Back Pressure Low Range | 0,98 po HG |
| Back Pressure Mid Range | 2,01 po HG |
| Back Pressure Low-Range (Metric) | 25 mm HG |
| Back Pressure Mid-Range (Metric) | 51 mm HG |
| Body Diameter | 8-3/16 in (20.8 cm) |
| Body Diameter Max | 11-1/2 in (29.21 cm) |
| Body Length | 25-63/64 in (66 cm) |
| Color | Aluminized |
| Height | 8-1/4 in (20.96 cm) |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 3-1/2 in (8.89 cm) |
| Inlet Quantity | 1 |
| Inlet Type | Pipe Connection |
| Length | 26 in (66.04 cm) |
| Material | Steel |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 4 in (10.16 cm) |
| Outlet Quantity | 1 |
| Outlet Type | Pipe Connection |
| Overall Length | 32-1/4 in (81.92 cm) |
| Rated Flow High Range | 1716.29 cfm (48.6 m³/min) |
| Rated Flow Low Range | 992.34 cfm (28.1 m³/min) |
| Rated Flow Mid Range | 1716.29 cfm (48.6 m³/min)[delete] |
| Reversible | No |
| Shape | Oval |
| Length Range | 25 to 26 in |
| Style | Style 2 |
| Width | 11-1/2 in (2.92 cm) |
Interchanges & Equivalent parts:
| M090520 |
| 3611 |
| 89354051 |
| 89354055 |
| M512 |
| 86512M |
| 86669M |
| 11227 |
| M23548X11 |
| 1909532 |
| M20512 |
| 3611Q |
| 3716 |
| 9575M090520 |
| 505491 |
| 1647998C1 |
| 482167C1 |
| DCM090520 |
| ZF947 |
| 102974 |
| D136291 |
| TAC466 |
| 21832 |
| DN M090520 |
| DN M090520 |
| RC MUF35481127 |
| 190-9532 |
| 2191-M090520 |
| 31227HDM |
| 86536M |
| DONM090520 |
| FLT86512M |
| M-512 |
| M2-3548X11 |
| MUF35481127 |
| W22551 |
